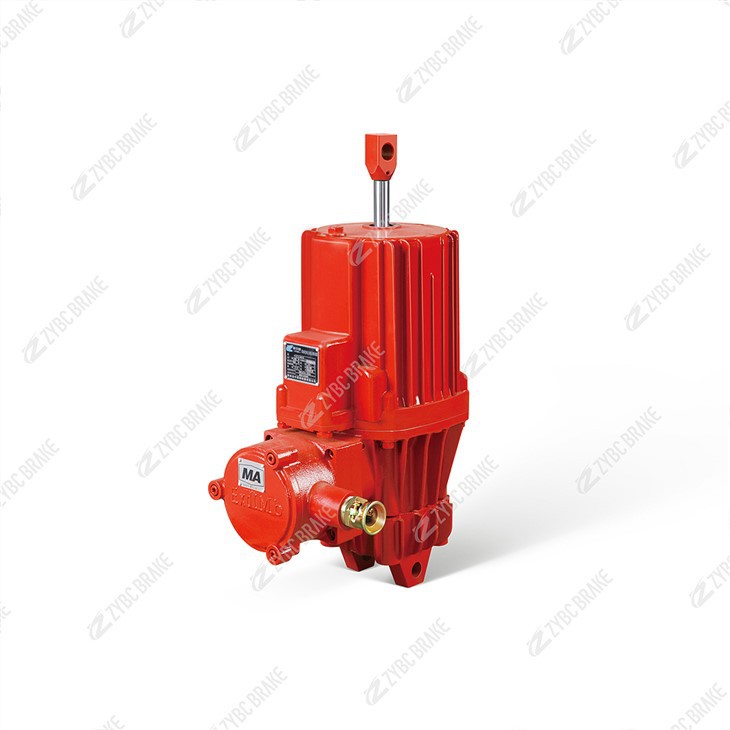

BED Series Explosion Proof Electro Hydraulic Thruster

BED Series Explosion Proof Electro Hydraulic Thruster

We are a factory to produce electro-hydraulic durm brakes, pneumatic drum brakes, electro magnetic drum brake, electro hydraulic disc brakes, air disc brakes, safety brakes etc. Choose from both fail-safe and active braking systems to meet the needs of your specific application. Whether you need stopping, holding, e-stopping or tensioning,we can accommodate your industrial disc brake needs. For example, our brakes are used for main hoists, boom hoists, bridge crane drives as well as trolley travel drives. In addition, they are used in various types of winches for mining, construction, drilling rigs, elevators and stage, speaker or scoreboard systems. Other examples are uphill, downhill and overland conveyor applications. We also have extensive references in steel mill rolling and coiler applications....

Send Inquiry

  1. Introduction


BED Series explosion-proof electro-hydraulic Thrusters

Original:He Nan, China

Certification: ISO9001, ISO14001, OHSAS18001, TX, EX, MA etc

Packing: export standard

Altitude: <1000m

Operating Condition" Ambient temperature: -20°C~+50°C ;

Relative humidity:≤90%; minimum temperature: ≥+25℃

Pollution degree of the circumferential environment≤3

Power:AC 3 phases 50(60)Hz

Voltages: 380/660V, 660V/1140V 50Hz

Operating duty: intermittent (S3-60%.1200times per hour)and continuous (S1).

Special requirements can be discussed in order.


2.Application:


BED explosion proof electric hydraulic thruster is EMG’s exclusive introduction of the German company’s products, its main use is as an electro-hydraulic block brake drive, can also be done to the mechanical lever machine complex, circular, swinging and other forms of rapid movement for lifting, transportation, metallurgy, mining, ports, construction and other industries. The explosion proof performance in line with GB3836.2-2000 explosive environment equipment, explosion-proof electrical equipment “d” requirement, mark for the “ d l” “d ll T4”, respectively, for the coal mine and II A, II B, II C(I class, A class II grade, B grade II class, C class II) temperature groups T1-T4 flammable gases or vapors from explosive mixtures with air spaces.

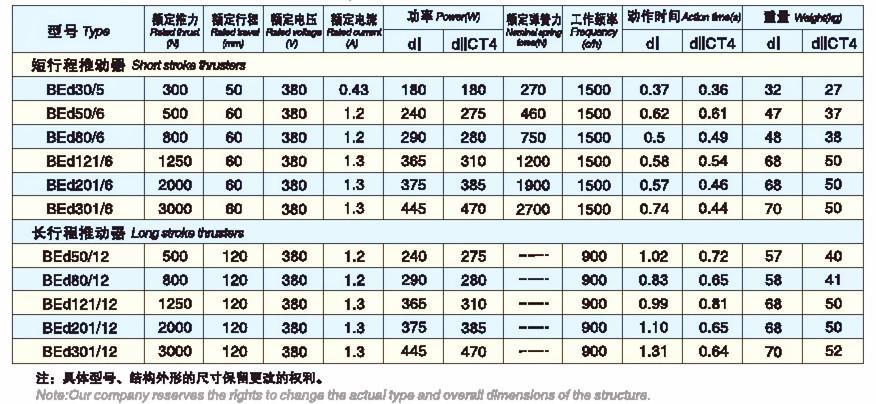

3. BED explosion proof electro hydraulic thruster Technical parameter:

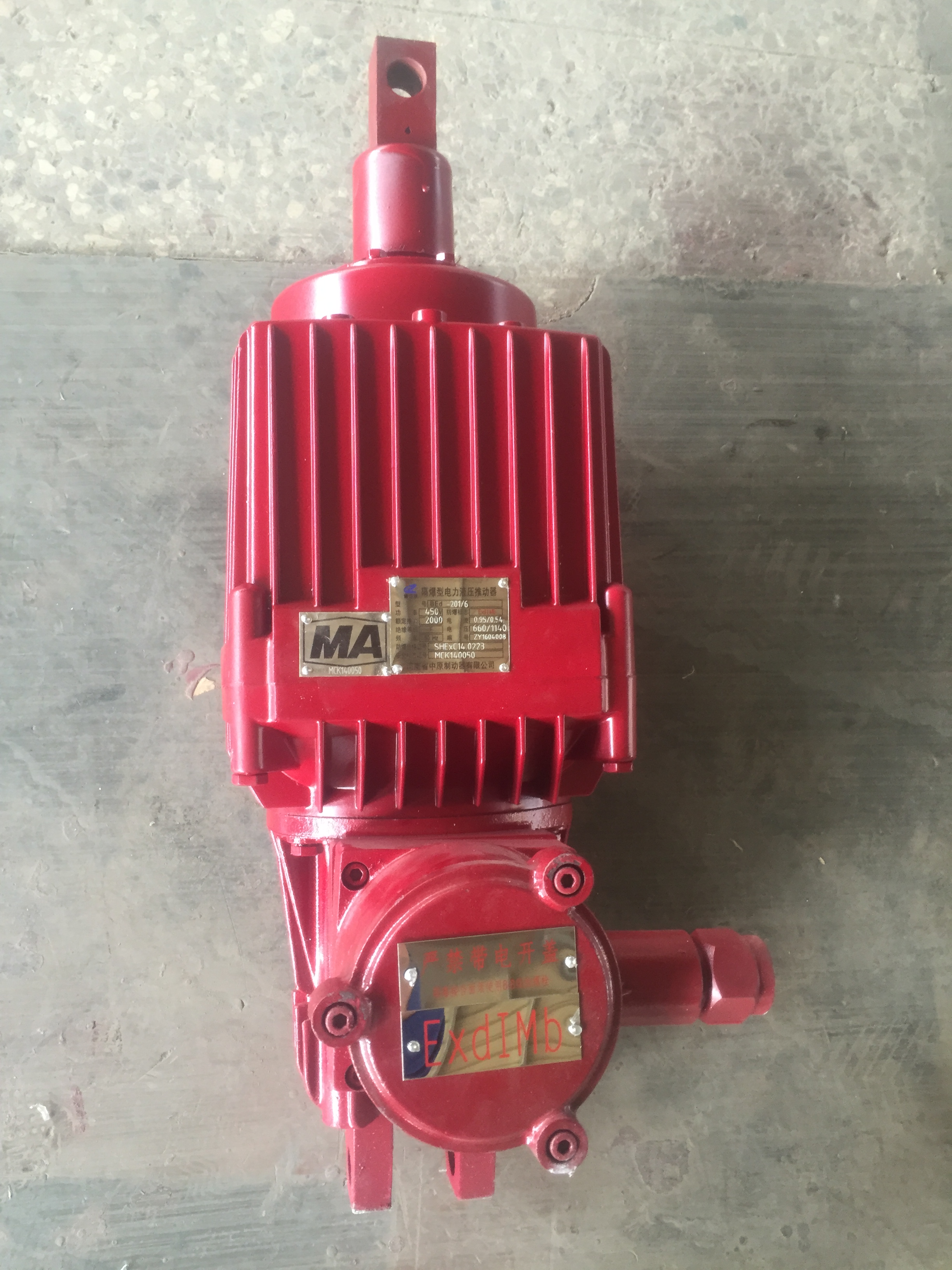

BED explosion proof thruster.JPG
