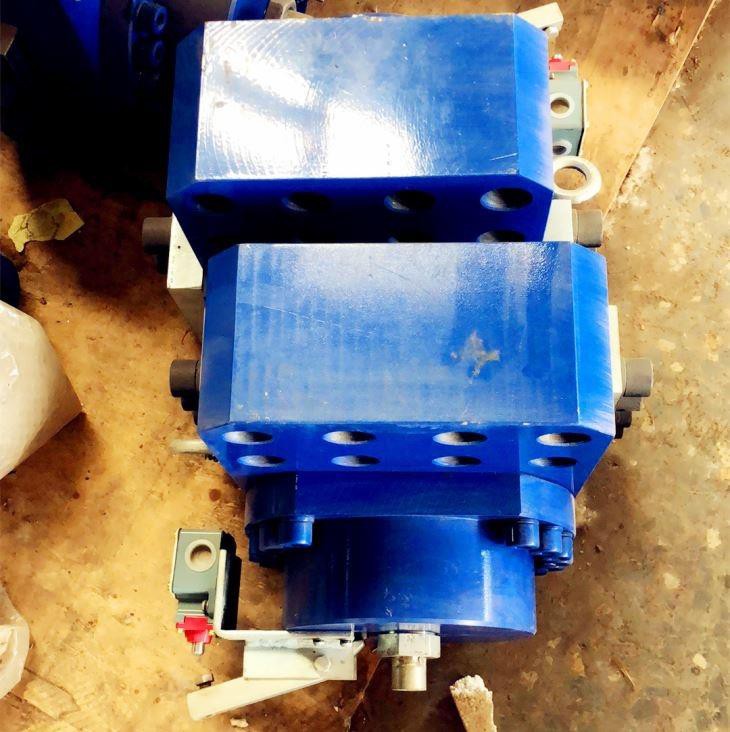

ST Series Fail-Safe Disc Brake

ST Series Fail-Safe Disc Brake

ST series fail-safe disc brake has compact structure, large braking torque, simple installation, it is mainly used for lifting, transportation, metallurgy, mines, ports, construction machinery, cable, cable equipment, wind generators, textile machinery and other industries a variety of mechanical drive set of machinery brake or deceleration....

Send Inquiry

ST series fail-safe disc brake


● Original:He Nan, China

● Certification: ISO9001, ISO14001, OHSAS18001, TX, EX, MA etc

● Packing: export standard

● Operating Condition" Ambient temperature: -20°C~+50°C ;

● Relative humidity:≤90%;

● Working condition: NO explosive and corrosive gases.

● Working place: Altitude location comply with GB755-2000. It should use corrosion products if it has rain erosion or corrosive gases at outside.

● Special requirements can be discussed in order.


2. Application:


ST series fail-safe disc brake has compact structure, large braking torque, simple installation, it is mainly used for lifting, transportation, metallurgy, mines, ports, construction machinery, cable, cable equipment, wind generators, textile machinery and other industries a variety of mechanical drive set of machinery brake or deceleration.



3.Main Feature:


● Compact structure, large braking torque;

● With automatic compensation device, short response;

● Can be used for working brake and safety brake;

● Working brake, allowing high frequency braking;

● Safe and reliable normal-close design;


4.Working Brake


●  Can be equipped with open limit switch and liner wear limit switch, which can interlock protection and fault display;

● Large braking torque, low repair cost, the liner strip automatic wear compensation device ( the braking torque is stable ), short response time;

● Mounting tolerances, the face run-out of disc: maximum±0.22MM. Related to base, the vertical deviation of disc is maximum±4%;

 ● The brake disc relative to the center of the base bias value: maximum + 2.5MM;

 The series includes the following types of brakes:

  561SE, 560SE, 56SE, 5SE, 450SE, 3SE brake

  5SP, 450SP, 4SP, 3SP brake (pressure release)

  5SH, 450SH, 4SH, 3SH and SB, SBD series brakes(hydraulic release)


5.Safety Brake


Breaking torque, and low maintenance costs, with automatic pad wear compensation device(braking torque stability), the response time is short

Mounting tolerances, the face run-out of disc: maximum±0.22MM. Related to base, the vertical deviation of disc is maximum±4%;



The series includes the following types of brakes:

All SE series(electromagnetic release) need be equipped with dedicated power supply

All SP series(pressure release) (5Bar)

All SH series(hydraulic release) studio with a hydraulic station.

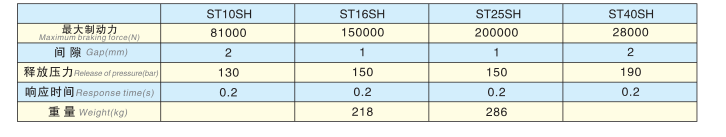

6. Technical Parameter of ST10SH, ST16SH, ST25SH, ST40SH:
