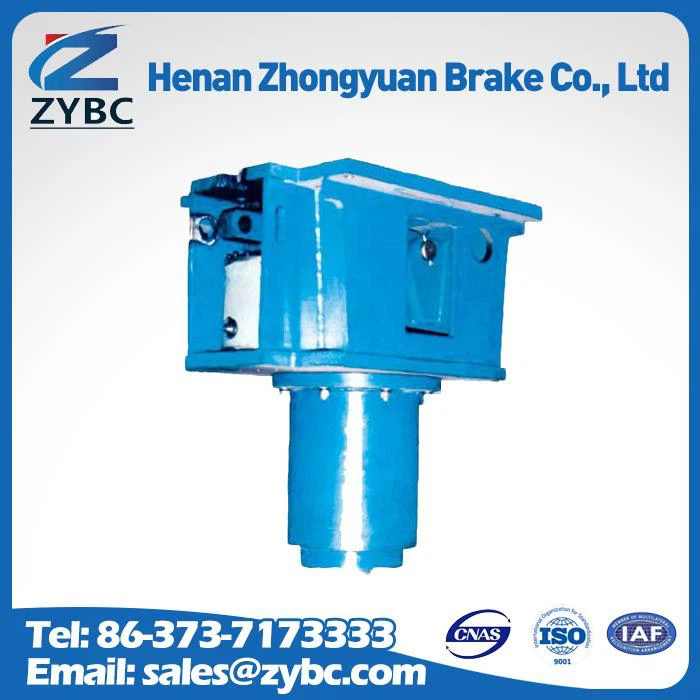

YDGZ Series Lever Hydraulic Top Rail BrakeJ

YDGZ Series Lever Hydraulic Top Rail BrakeJ

1.Introduction YDGZ series lever hydraulic top rail brakeJ Original:He Nan, China Certification: ISO9001, ISO14001, OHSAS18001, TX, EX, MA etc Packing: export standard Operating Condition" Ambient temperature: -0°C~+40°C ; Relative humidity:≤90% The working condition won’t have explosive......

Send Inquiry

1.Introduction

YDGZ series lever hydraulic top rail brakeJ

Original:He Nan, China

Certification: ISO9001, ISO14001, OHSAS18001, TX, EX, MA etc

Packing: export standard

Operating Condition" Ambient temperature: -0°C~+40°C ;

Relative humidity:≤90%

The working condition won’t have explosive and corrosive gases.

Altitude location comply with GB755-2000

Special requirements can be discussed in order.


2.Application:

YDGZ series lever hydraulic top rail brake is mainly used for big and medium port or dock crane



3.Main Feature:

1. Normal close design, to use hydraulic drive control with special disc springs to brake.

2. Block is made by advanced high-friction and wear-resistant steel, very reliable.

3. It can display working condition with limit switch.

4. It is equipped with manual release, easy to maintain.



4.Specifications/Technical parameters

 Technical parameter of YDGZ lever hydraulic top rail brake    unit (mm)

Brake type

Rated power of top rail

(KN)

Cylinder working pressure

(MPa)

Ejector stroke

(mm)

Weight

(KG)

YDGZ-40

400

8

16

1110


Technical parameter of YDGZ series top-rail direct-acting hydraulic brake    unit (mm)

Brake type

Rated power of top rail (KN)

Static friction

(KN)

Cylinder Working pressure (MPa)

Gate oil

(L)

Effective stroke



Mounted height

L2

L3

L4

D1

D2

D3

d

Weight

(kg)

YDGZ-20

196

88

5

1

16

506

491

69

25

335

375

425

22

350

YDGZ-35

343

154

7

1.4

625

610

85

33

400

455

520

27

460


YDGZ-45

441

198

10

1.4

480










YDGZ-50

500

225

11

1.4

626

611

85

34

400

455

520

27

500




5.FAQ

1. Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have builded up our company since 2004.

2. Where is your factory located?

Our factory address is : Weizhuang industrial Park Changyuan County Xinxiang City, Henan Province, China.

3. How can i get to your factory?

Our factory is near zhengzhou Airport, we can pick you up in the airport.

4. If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

5. What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. Which level of quality are your products?

We have got  ISO9001, ISO14001, OHSAS18001, TX, EX, MA etc certificate so far.

7. What is the delivery time of your machine?

In general, the delivery time of our machine is about 7 days, customized machine will be delivered as the negotiation with our clients.

8. Can the machine be customized as our need, such as put on our logo?

Surely our machine can be customized as your need, Put on your logo is also available.

9. As the shipping period will take long time, how can you make sure the machine won’t be broken?

Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.,

10. May i know which payment will be accepted by your company?

So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.

11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.

12. After we placing an order, will you arrange the installation of the machine at present?

All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.

13. How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.

14.How can i trust your company?

A:With 20-years-professional design, we can provide you suitable suggestion and lowest price

1. Assessed by third party, national patents and ISO for all equipment,  .

2. For our machine, we do very well on belt transport,port handling,hoisting, metallurgical, mining and building machinery..

15.Is your price competitive?

A:  Only good quality machine we supply. Surely we will give you best factory price based on

superior product and service.

6.Please feel free to send us your detailed requirements, you would be satisfied with our service.
