Hydraulic Block Brake

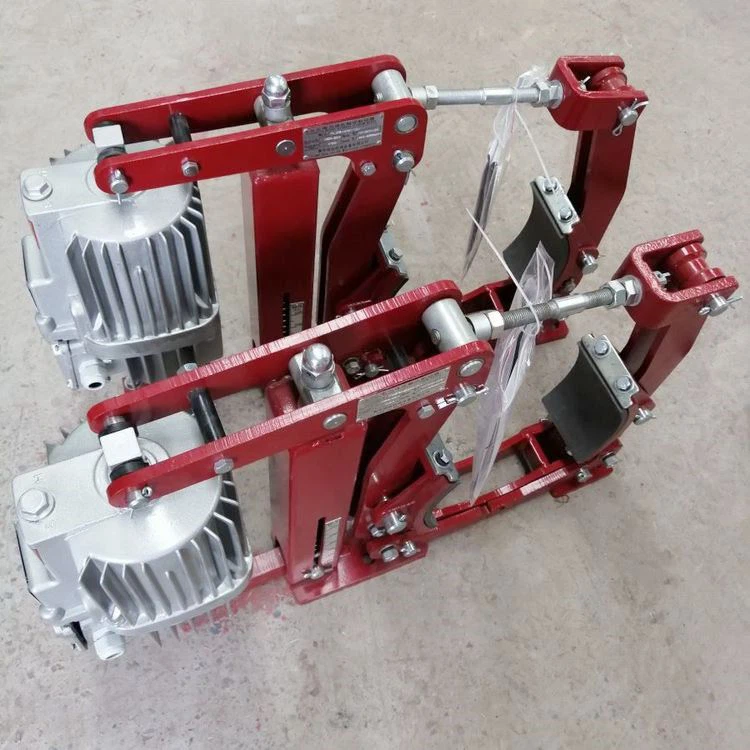

YWZ5 series electric hydraulic block brake

It is widely used in the deceleration and parking brake of mechanical driving devices such as lifting, metallurgy, mining, ports, docks, and construction.

Model:YWZ5-160、YWZ5-200、YWZ5-250、YWZ5-315、YWZ5-400、YWZ5-500、YWZ5-630、YWZ5-710、YWZ5-800

Max. Drum Diameter: 800mm

Max. Brake Torque: 12500Nm

Shoe Gap: ≤1.0mm

Weight: Different according to different models

Operating Condition:

Ambient temperature: -25°C~+50°C ;

Relative humidity: ≤90%;

Voltages: 380~400V 50Hz 440~460V 60Hz

Operating duty: intermittent (S3-60%.1200times per hour) and continuous (S1).

Special requirements can be discussed in order.

YWZ5 Series Electro-hydraulic Drum Brake

Henan Zhongyuan Brake Co.,Ltd

Specializing in the production and supply of multi-category high-quality industrial brakes

(1) Nearly 20 years of production and sales experience

(2) Mainly produce industrial brake products and control systems, including: parking brakes (high-speed shaft brakes), parking brakes and safety brakes for various industrial equipment walking mechanisms, wind power brakes, various friction materials and brake control systems, etc. .

(3) Product inspection center, with brake comprehensive performance test bench, pusher comprehensive performance test bench, motor type test and testing equipment and pressure test equipment, etc.

(4) Scientific and efficient warehousing logistics system

(5) The company has passed ISO 9001:2015, ISO14001:2015, OHSASI18001:2007 three system certification

(6) Mode of transportation: By sea, air express, etc.

Please feel free to send us your detailed requirements, you would be satisfied with our service.
