Eldro Electro-Hydraulic Thrusters With C Spring

ED series electric hydraulic driving device is a motor, centrifugal pump, oil cylinder as a whole, compact drive control device, has been widely used in various drum brake and disc brake driving device, also can be used for various industrial valves, gate, directional swing and rotation ( < 90degrees ) device ( mechanism ) and clamping device driving device.

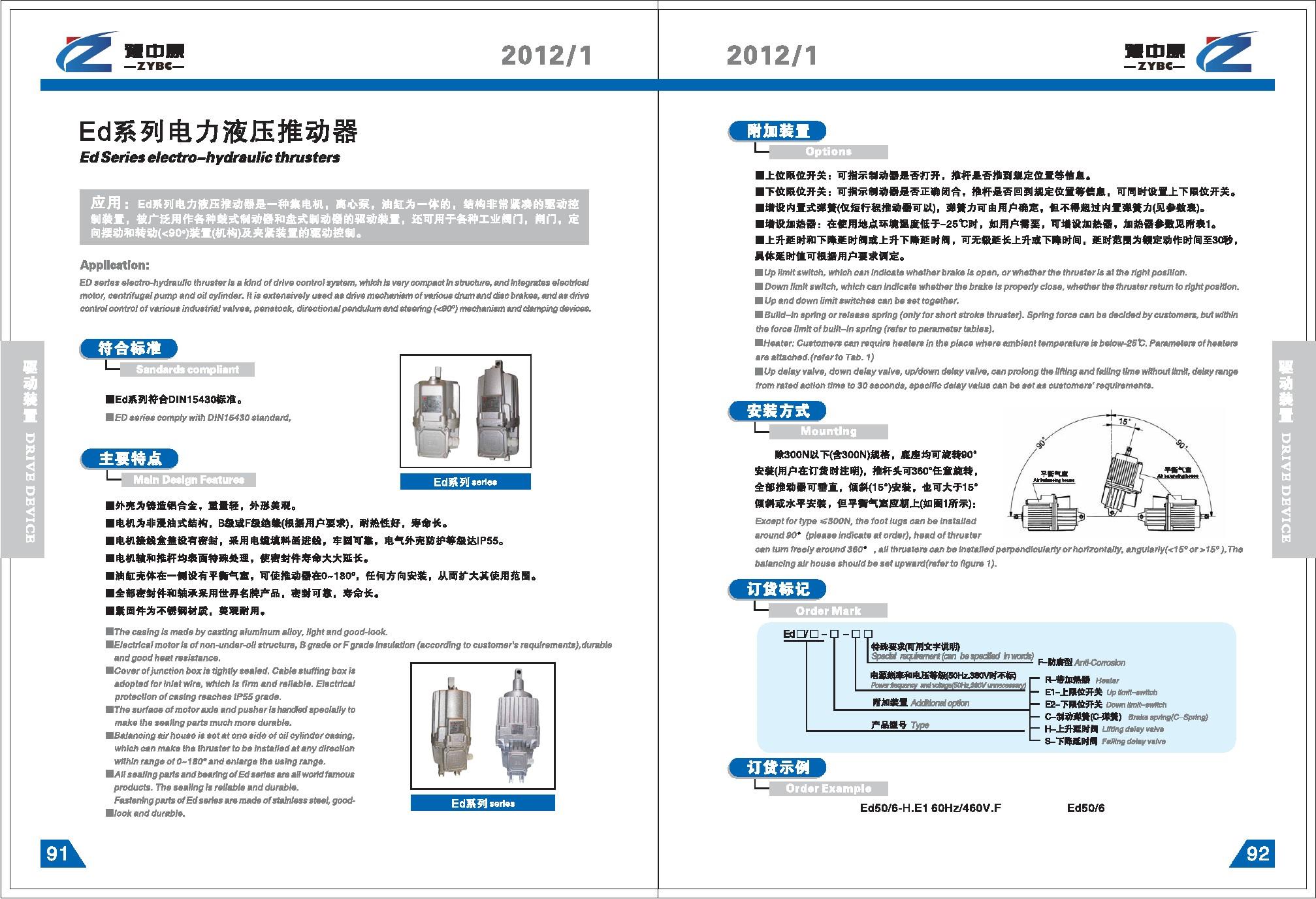

1. Main Feature：

• The casing is made by casting aluminum alloy ,light and good-look.

• Electrical motor is of non-under-oil structure,B grade or F grade insulation (according to customer's requirements)durable and good heat resistance.

• Cover of junction box is tightly sealed.Cable stuffing box is adopted for inner wire,which is firm and reliable.Electrical protection of casing reaches IP55 grade.

• The surface of motor axle and pusher is handled specially to mark the sealing parts much more durable.

• Balancing air house is set at one side of oil cylinder casing which can make the thruster to be installed at any direction within rang of 0-180 degree and enlarge the using range.

• All sealing parts and bearing of Ed series are all world famous products.The sealing is reliable and durable.

• Fastening parts of Ed series are made of stainless steel,good-look and durable.

2. Additional Option

• Up limit switch,which can indicate whether brake is open,or whether the thruster is at the right position.

• Down limit switch,which can indicate whether the brake is properly close,whether the thruster return to right position.Up and down limit switches can be set together.

• Build-in spring or release spring only for short thruster)Spring force can be decided by customers,but within the force limit of built-in spring (refer to parameter tables).

• Heater Customers can require heaters in the place where ambient temperature is below -25°c,Parameters of heater are attached (refer to Tab.1)

• Up delay valve,down delay valve,Up/down delay valve,can prolong the lifting and falling time without limit,delay range from rated action time to 30 second,specific delay valve can be set as customers' requirements.
