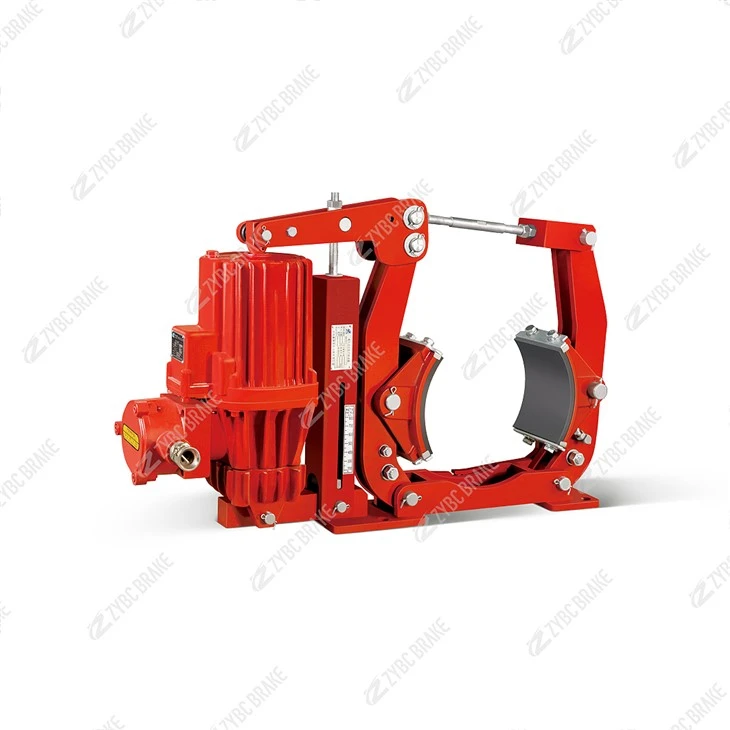

YWZ5-710/B201 Series(Explosion-proof) Electro-hydraulic Drum Brakes

YWZ5-710/B201 series (explosion-proof) are normally‑closed, spring‑applied, electro‑hydraulically released industrial drum brakes with explosion‑protected construction, intended for safe braking, stopping and load holding in explosive gas or dust hazardous environments.

Basic Identification

Model: YWZ5-710/B201 Series (Explosion-proof)

Type: Explosion‑proof electro‑hydraulic drum brake

Operation: Normally closed • Spring applied • Electro‑hydraulically released

Brake drum diameter: 710 mm

Actuator: Matching explosion‑proof electro‑hydraulic thruster

Working Principle

De-energized: Built‑in springs press brake shoes against the drum to provide braking.

Energized: Explosion‑proof electro‑hydraulic thruster actuates to release the brake.

Fail‑safe: Automatically applies braking upon power failure or emergency stop.

Main Features

Explosion‑proof design suitable for hazardous areas

High braking torque, stable performance

Asbestos‑free friction linings

Adjustable brake clearance

Rugged structure for heavy‑duty and frequent operation

Low noise, easy installation and maintenance

Typical Applications

Oil & gas, petrochemical, chemical facilities

Coal mines and dusty explosive environments

Cranes, hoists, winches and conveyors in hazardous zones

Explosion‑proof braking systems for industrial transmission machinery
