Thruster Brake For Overhead Crane

Name: Thruster Brake For Overhead Crane Manufacturers and Supplier - China Factory - Zhongyuan Brake
Brand: ZHONGYUAN BRAKE
SKU: 158490200

Electric hydraulic thruster brake is widely used in reducing or parking brakes for mechanical drive equipment such as lifting, metallurgy, mine, port, terminal, construction machinery.

Send Inquiry

Description

YWZ9 Series Thruster Brake For Overhead Crane

Applicable vehicle diameter: 160 ~ 800mm

Brake torque: 80 ~ 12500nm

Working conditions:

Ambient temperature -20°C ~ +50°C.

Power: 380V, 50Hz.

Relative humidity: No more than 90%.

There must be flammable, explosive and corrosive gases in the surrounding working environment.

The altitude of the address is in line with GB755-2000.

Field rain and snow causing or corrosive gases and media should use anti-corrosive products.

Thruster Brake For Overhead Crane

Specifications

Thruster Brake

Technical data of YWZ9 series thruster brake for overhead crane

Brake type	Thruster type	Braking torque (Nm)	Dimensions (mm)																Weight (kg)
Brake type	Thruster type	Braking torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	L	Weight (kg)
YWZ9- 160/E23	Ed 23/5	80-160	430	65	160	160	14	145	85	145	195	435	132	55	130	120	8	145	32.5
YWZ9- 200/E23	Ed 23/5	112-200	470	80	160	200	14	175	90	165	265	500	160	55	145	140	10	150	35
YWZ9- 200/E30	Ed 30/5	140-315	470	80	160	200	14	175	90	165	265	500	160	55	145	140	10	150	38
YWZ9- 250/E23	Ed 23/5	140-250	575	100	160	250	18	205	110	200	290	570	190	65	180	160	12	180	42
YWZ9- 250/E30	Ed 30/5	180-315	575	100	160	250	18	205	110	200	290	570	190	65	180	160	12	180	45
YWZ9- 250/E50	Ed 50/6	315-500	575	100	190	250	18	205	110	200	290	570	190	65	180	160	12	180	50
YWZ9- 300/E30	Ed 30/5	250-400	590	125	160	300	18	255	115	245	330	585	225	80	220	180	12	170	70
YWZ9- 300/E50	Ed 50/6	400-630	630	125	190	300	18	255	115	245	330	585	225	80	220	180	12	170	75
YWZ9- 300/E80	Ed 80/6	630-1000	630	125	190	300	18	255	115	245	330	585	225	80	220	180	12	170	80
YWZ9- 315/E30	Ed 30/5	250-400	590	125	160	315	18	255	115	245	330	585	225	80	220	180	12	170	70
YWZ9- 315/E50	Ed 50/6	400-630	630	125	190	315	18	255	115	245	330	585	225	80	220	180	12	170	75
YWZ9- 315/E80	Ed 80/6	630-1000	630	125	190	315	18	255	115	245	330	585	225	80	220	180	12	170	80
YWZ9- 400/E80	Ed 80/6	630-1250	710	160	190	400	22	310	160	310	420	775	280	100	270	220	14	170	110
YWZ9- 400/E121	Ed 121/6	1000-2000	700	160	240	400	22	310	160	310	420	775	280	100	270	220	14	170	125
YWZ9- 500/E80	Ed 80/6	800-1600	810	200	190	500	22	385	180	365	535	845	335	130	325	280	16	180	175
YWZ9- 500/E121	Ed 121/6	1120-2500	800	200	240	500	22	385	180	365	535	845	335	130	325	280	16	180	190
YWZ9- 500/E201	Ed 201/6	2000-4000	800	200	240	500	22	385	180	365	535	845	335	130	325	280	16	180	190
YWZ9- 600/E121	Ed 121/6(12)	1800-2800	925	240	240	600	26	470	220	450	600	1035	425	170	400	340	25	185	300

According to the user needs, this series of brakes can be applied to the gasket wear automatic compensation device, which prevents the braking torque of the brake to avoid safety hazards caused by insufficient power of the brake pads. This series of brakes can also install manual release devices and safety interlock switches, which are more convenient for users.

brake2

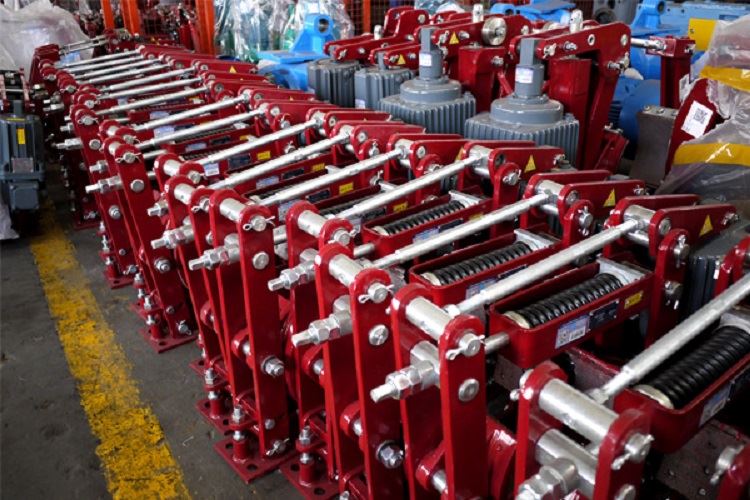

brake3 Thruster Brake For Sale

Our service

1. Reply within 24 hours.

2. Customized brake

3. Each brake will test before delivery.

4. Delivery and excellent after-sales service on time.

5. High quality and reliable price.

About us:

Electromagnetic DC Drum Brake Factory

Zhongyuan Brake is a professional supplier of industrial brakes. Our customized products are mainly used in the fields of cement, steel, docks, winches, belt conveyors, locomotives, gantry cranes, tower cranes, bridge cranes, jib cranes and bridge cranes.

Please feel free to send us your requirements, and we will confirm for you as soon as possible.
