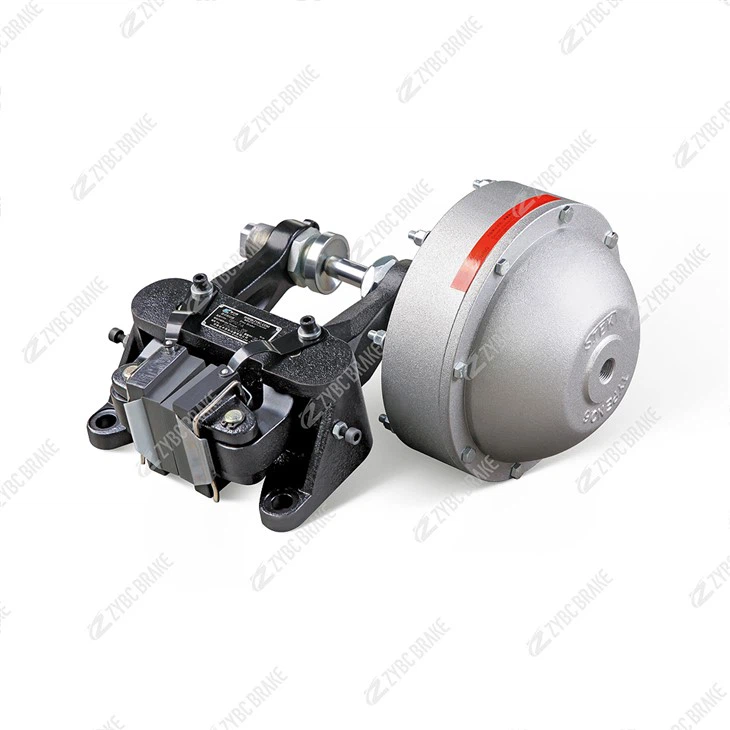

QPD-A Series Pneumatic Disc Brake

⚙️ Product Overview

The QPD-A Series is an industrial Pneumatic Disc Brake (also known as an Air Disc Brake). It is a high-performance braking device that utilizes compressed air as the power source to generate friction torque on a brake disc.

The "A" in the model designation typically refers to the specific Pneumatic Actuator (Air Bag/Cylinder) configuration, which is designed to convert air pressure into linear force to clamp the brake pads against the disc. This series is widely used in heavy-duty applications requiring fast response times and high reliability.

💡 Key Features & Characteristics

Pneumatic Actuation (Air Bag):
The core component is the pneumatic actuator (air bag). When compressed air (typically 5-7 bar) enters the actuator, it drives a piston to push the brake pads against the disc.

Fast Response: Pneumatic transmission allows for extremely rapid braking action (response time ≤ 0.3s), making it ideal for emergency stops.

Clean Operation: Unlike hydraulic systems, it uses clean compressed air, eliminating the risk of oil leaks and making it suitable for clean environments (e.g., food packaging, paper mills).

Modular & Compact Design:
The QPD-A series features a modular structure, allowing for independent installation and removal of the brake caliper and actuator. This design saves space and simplifies maintenance.

Automatic Compensation:
Many models in this series (like the QP variants) include an automatic gap compensation mechanism. This ensures that as the brake pads wear down, the brake automatically adjusts to maintain the optimal air gap, ensuring consistent braking torque without manual intervention.

Heat Dissipation:
The open design of the disc brake allows for excellent heat dissipation. The brake disc (often made of high-thermal-conductivity alloy) can dissipate heat quickly, preventing brake fade during frequent high-speed cycling.

Adjustable Torque:
By adjusting the air pressure in the supply line (using a regulator/speed control valve), the braking torque can be precisely and infinitely adjusted to match the load requirements.

🏭 Typical Applications

The QPD-A Series is versatile and used across various heavy industries:

Cranes & Hoists: Used on the travel and hoisting mechanisms of port cranes, gantry cranes, and overhead cranes for reliable holding and stopping.

Conveyors: Ideal for belt conveyors in mining and power plants, providing emergency braking and holding torque.

Wind Power: Used as yaw brakes or rotor brakes in wind turbines due to their reliability and fail-safe capabilities.

Construction Machinery: Applied in heavy vehicles and drilling rigs.

Paper & Steel Mills: Used in tension control systems (unwind/rewind stands) due to the precise torque control offered by pneumatic regulation.

📋 General Technical Specifications

表格

Note: The QPD-A is often comparable to other industrial pneumatic series like the QP or DB series. When selecting a replacement, ensure the brake disc diameter and mounting dimensions match the existing machinery.
