Eaton Airflex Double Flange Clutch and Brake 24CB500 142267 for Metallurgy

Our company can grasp the pulse of the market, meet the needs of customers for overhead crane brakes, Windproof drum brake, Electro Hydraulically Drum Brakes, win the market, win customers, so as to make our company develop and grow. Our company will strive for the brilliance of innovation with our customers with brand-new business policy and business philosophy. Over the years, under the unremitting efforts of an experienced, responsible, and highly skilled team, our company relies on honest, pragmatic, efficient, and work style to provide excellent products and high-quality services. Besides, we have a group of high-quality management personnels and professionals, who make the high-quality products and have the ability to develop new products to expand our market home and abroad.

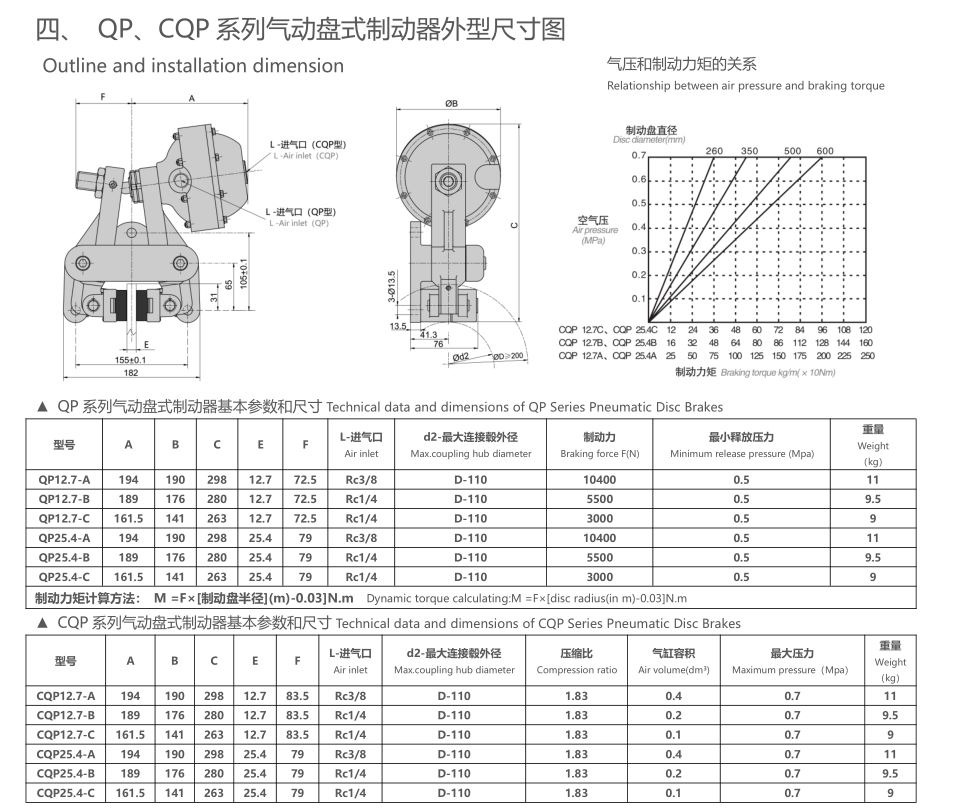

QP, CQP series of disc brake calipers is suitable for use with discs of 12.7mm, 25.4mm, 30mm and 40mm thick respectively. The QP caliper is only suitable for use with discs 12.7mm thick. Minimum disc diameter is 300mm.

The QP/CQP calipers may be used with any of the ZYBC series of thrusters and feature a patented link mechanism to ensure uniform pad wear.

Normally one or two calipers are used per disc, but the number may be increased depending on disc size. The brakes may be positioned at any angle around the periphery of the disc, but should ideally be mounted horizontally (i.e. at the 3 o’clock or 9 o’clock position). If the caliper mounting angle is greater than 10° from the horizontal, or on vertical shaft applications, it should be fitted with an inclined mounting kit or equalising link. A range of brake discs is available from Twiflex (see Disc and Hub Assemblies).

For pneumatic operation use dry, filtered and non-lubricated compressed air. Pneumatic brakes require a control valve, operated either manually or by pneumatic or electrical signal.

The ratings shown on the graphs are based on fully bedded in and conditioned brake pads with a nominal friction coefficient μ = 0.4. Twiflex disc brakes must be used with Twiflex asbestos free brake pads.

Effective disc radius = actual radius (m) – 0.033m.

Eaton Airflex Double Flange Clutch and Brake 24CB500 142267 for Metallurgy have passed the official quality inspection system, and customers can choose our products with confidence. Our company insists on taking the road of high technology and high quality development, leading the direction of development and improving the quality of development through innovation drive. We hope to establish long-term relationships with our customers through our outstanding products and outstanding services.
