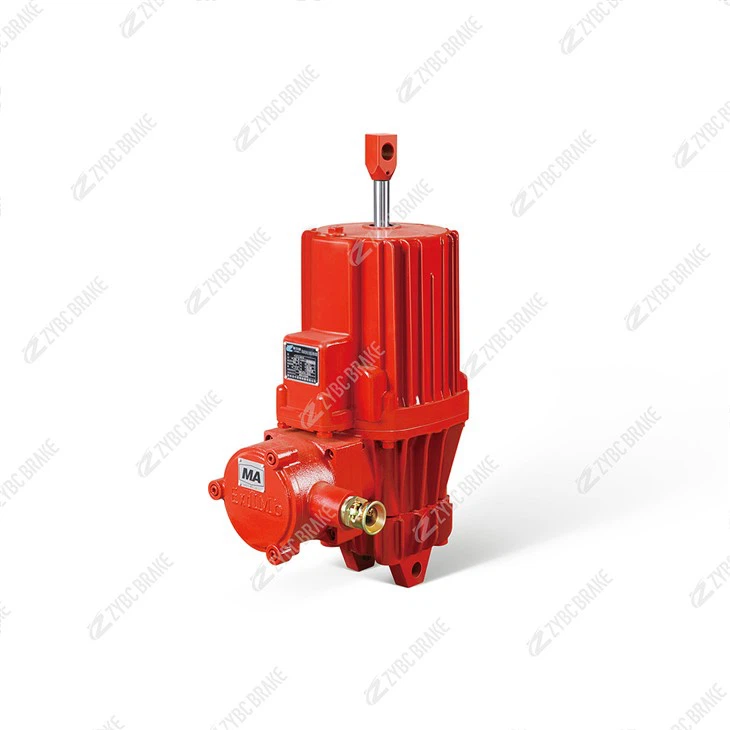

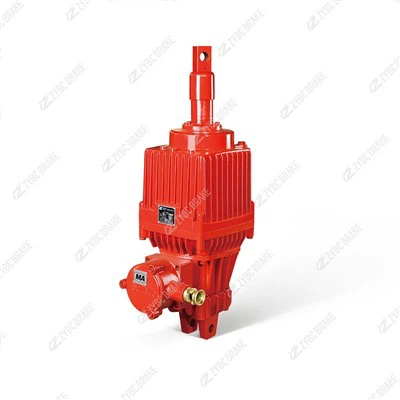

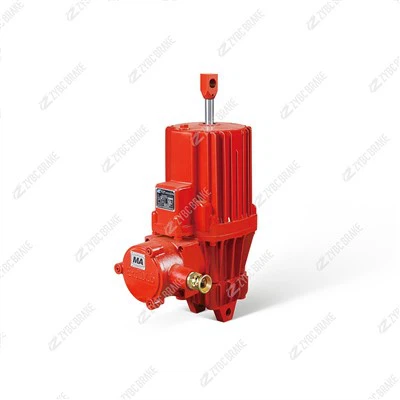

BEd80/12 Series Explosion-Protected Electro-Hydraulic Thruster

The BEd80/12 Series​ is a compact, reliable, and intrinsically safe explosion-proof (Ex) electro-hydraulic thruster​ designed for linear actuation, primarily in industrial braking systems, within hazardous locations. It represents a modern, oil-immersed design specifically engineered to prevent ignition in environments with flammable gases, vapors, mists, or combustible dusts.

Core Design Philosophy & Certification

This series integrates a standard electro-hydraulic thruster mechanism within a fully certified flameproof enclosure (Ex d). Its entire construction-from the terminal box to the main housing-is engineered to contain any potential internal arc, spark, or explosion, preventing it from igniting the surrounding hazardous atmosphere.

Key Protection Standard:​ The "BEd" prefix typically signifies a flameproof enclosure ("d") according to international standards:

ATEX Directive (EU):​ Certified for Category 2G (Zone 1) and/or 2D (Zone 21) environments.

IECEx System:​ Globally recognized certification.

Common Marking:​ Ex d IIC T4 Gb / Ex tD A21 IP66 T135°C Db, indicating protection for gas (Group IIC) and dust (IIIB/IIIC) atmospheres with a maximum surface temperature of 135°C (T4).

Operating Principle

The operation follows the classic, robust electro-hydraulic thruster principle, made safe for hazardous areas:

Upon energization, the explosion-proof electric motor​ starts and drives a centrifugal pump.

The pump pressurizes the hydraulic oil contained within the sealed thruster body.

This pressure acts on a piston, causing it to extend linearly against a spring force (often external to the thruster, in the brake assembly).

This extension typically releases a spring-applied, fail-safe brake.

When power is cut, the pressure drops, and the brake's return spring (or an internal spring) forces the piston to retract, automatically and safely applying the brake. This fail-safe spring-return is critical for safety in hazardous zones.

Key Features & Specifications

Flameproof & Dust-Ignition-Proof Enclosure:​ The main housing and terminal compartment are rugged castings with precisely machined flanges ("flame paths") that cool any escaping gases from an internal explosion below the ignition temperature of the external atmosphere.

Compact Power:​ The "80" in the designation typically refers to a nominal thrust of 800 Newtons (N)​ or approximately 80 kgf, making it suitable for medium-duty to heavy-duty industrial brakes.

Long Actuation Stroke:​ The "/12" denotes a standard piston stroke of 120mm, providing significant travel for brakes with large air gaps.

Oil-Immersed Reliability:​ All moving parts (motor rotor, pump) operate in a bath of hydraulic oil. This ensures:

Continuous lubrication and cooling.

Reduced wear and maintenance.

Quieter, smoother operation.

Effective dissipation of motor heat, aiding in meeting temperature class (T4) requirements.

Robust Construction:​ Heavy-duty cast iron or aluminum alloy housing provides mechanical strength and corrosion resistance for harsh industrial environments.

Integrated Design:​ A self-contained unit that requires only electrical connection and mechanical linkage to the brake lever, simplifying installation in Ex areas.

Typical Technical Data

Rated Thrust:​ ~800 N (at specified pressure)

Stroke:​ 120 mm

Motor:​ Ex d IIC T4 rated, typically 3-phase, 0.37 kW - 0.55 kW, for voltages like 380V, 415V, 50/60 Hz.

Duty Cycle:​ Designed for frequent use, often with a 60% or higher duty cycle.

Ingress Protection:​ Minimum IP66 (dust-tight and protected against powerful water jets).

Ambient Temperature:​ Suited for standard industrial ranges, e.g., -20°C to +40°C.

Primary Applications

It is exclusively​ deployed in hazardous areas (Zones 1, 2, 21, 22)​ to actuate safety-critical brakes on:

Overhead Cranes & Gantry Cranes​ in oil refineries, chemical plants, paint shops, and pharmaceutical facilities.

Conveyor Systems​ in grain elevators, coal handling plants, and fertilizer production (dust hazards).

Hoists & Winches​ in mining (where explosive dust/gas may be present) and offshore platforms.

Processing Machinery​ in areas classified due to the release of flammable solvents or gases.

Advantages

Hazardous Area Compliance:​ Enables safe mechanical actuation where standard electrical devices pose an explosion risk.

Proven & Reliable Technology:​ Based on the simple, durable oil-immersed thruster design with a long service history.

Inherent Safety:​ The fail-safe spring-return function is maintained and is paramount for operational safety in Ex areas.

Low Maintenance:​ The oil-bath design requires minimal intervention-only periodic oil level checks under normal operation.

Summary

The BEd80/12 Series Explosion-Protected Electro-Hydraulic Thruster​ is a purpose-built safety actuator. It delivers a robust 800N thrust with a 120mm stroke through a certified flameproof enclosure, making it a key component for reliable and safe braking in explosive atmospheres. Its design prioritizes intrinsic safety, durability, and compliance with international explosion-protection standards for material handling and process equipment in high-risk industries.
