Electro-hydraulic Push Rod
The electro-hydraulic push rod is a hydraulic drive device integrating electro-hydraulic.
Description
DYT Series Electro-hydraulic Push Rod
The electro-hydraulic push rod is a hydraulic drive device integrating electro-hydraulic. It can be widely used in the drive and control of valves, gates, reversing, tilting, swinging and other machinery in metallurgy, building materials, chemicals, lifting and transportation, and port loading and unloading machinery. It can replace the traditional electric push rod, hydraulic cylinder (driven by hydraulic station) and cylinder (driven and controlled by air pump station).

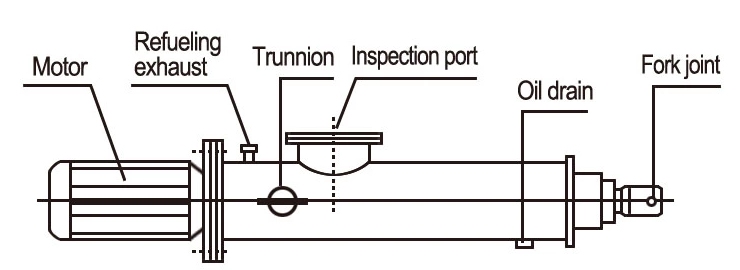

DYT Series Electro-hydraulic Push Rod Diagram:
Technical Details:
| DYT Series Electro-hydraulic Push Rod | ||||||||
| Model No. | Rated Output Force（Kgf） | Rated Speed（mm/s） | Motor Model | Stroke Range | Speed Range | |||
| Thrust | Pull | Push | Pull | （kw） | （mm） | （mm） | ||
| DYT450-S/110 | 450 | 310 | 110 | 140 | 0.75 | 50-800 | 5-250 | |
| DYT700-S/110 | 700 | 510 | 110 | 140 | 1.1 | 50-1500 | 10-110 | |
| DYT1000-S/110 | 1000 | 750 | 110 | 140 | 1.5 | 50-2000 | 10-110 | |
| DYT1750-S/90 | 1750 | 1300 | 90 | 115 | 2.2 | 50-2000 | 10-90 | |
| DYT2550-S/90 | 2500 | 2050 | 90 | 115 | 3 | 50-2000 | 10-90 | |
| DYT3000-S/90 | 3000 | 2500 | 90 | 115 | 4 | 50-2000 | 10-90 | |
| DYT4000-S/80 | 4000 | 2950 | 80 | 100 | 4 | 50-2000 | 10-80 | |
| DYT5000-S/80 | 5000 | 3300 | 60 | 90 | 5.5 | 50-2500 | 10-60 | |
| DYT6000-S/60 | 6000 | 3800 | 60 | 90 | 5.5 | 50-2500 | 5-60 | |
| DYT8000-S/50 | 8000 | 5000 | 50 | 80 | 7.5 | 50-2500 | 5-50 | |
| DYT10000-S/40 | 10000 | 6500 | 40 | 60 | 7.5 | 50-2500 | 5-40 | |
| DYT15000-S/35 | 15000 | 11000 | 35 | 45 | 7.5 | 50-2500 | 5-35 | |
| DYT20000-S/25 | 20000 | 15000 | 25 | 35 | 7.5 | 50-2500 | 5-25 | |
Main feature
1. Compact structure, convenient installation, small space occupation and simple maintenance.
2. There is a two-way pressure-maintaining self-locking device in the loop. It can stop and self-lock at any position within the specified stroke range, and keep the output force unchanged.
3. When the mechanism is powered off due to an accident, the push rod can be automatically locked in this position to avoid accidents.
4. All hydraulic devices are concentrated in the machine body without external pipelines. The oil cylinder seal adopts imported brand-name products with good sealing effect. No oil leakage and pollution, and long life.
5. Simple electrical control. By adding various limit switches, it is extremely easy to realize remote and hazardous area operation control. And computer (PLC) automatic control.

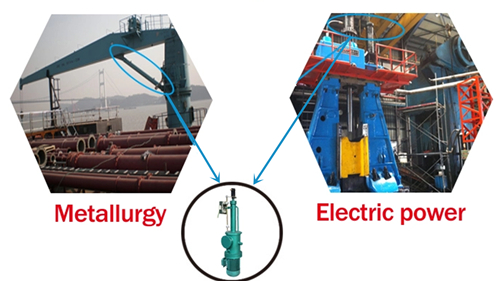

Application:
If you have need, please just send your need to us.
