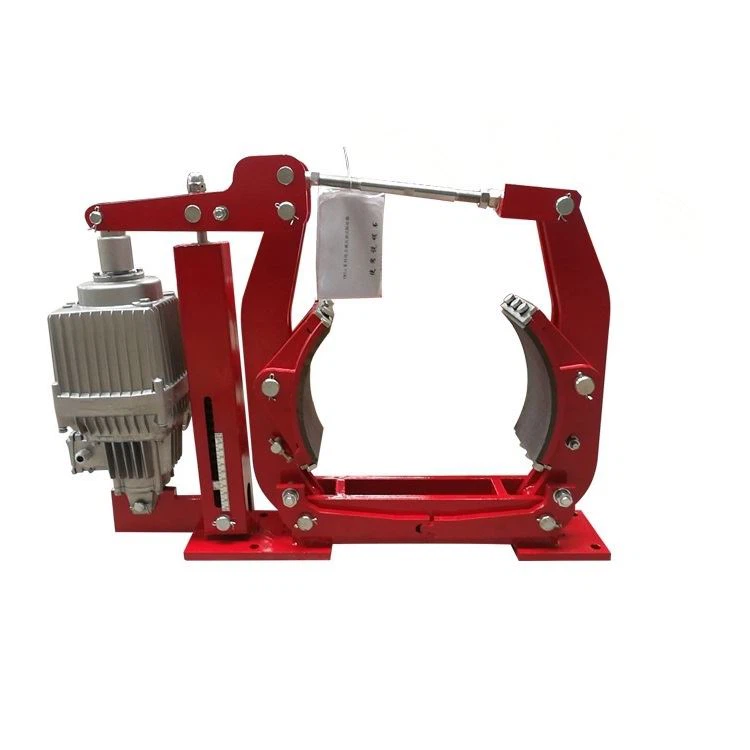

EOT Crane Thruster Brake

The electro-hydraulic thruster brake can be widely used for deceleration and parking brake of various mechanisms in various lifting, belt transportation, port loading and unloading, metallurgy and construction machinery.

Send Inquiry

Description

YW Series Thruster Brake For EOT Crane

Technical data and dimensions of YW series EOT crane

Brake type	Thruster type	Braking torque (Nm)	Dimensions (mm)																Weight (kg)
Brake type	Thruster type	Braking torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	L	Weight (kg)
YW- 160/E23	Ed 23/5	80-160	430	65	160	160	14	145	85	145	195	440	132	55	130	105	8	145	32.5
YW- 200/E23	Ed 23/5	112-200	470	70	160	200	14	175	90	165	255	500	160	55	145	118	10	150	35
YW- 200/E30	Ed 30/5	140-315	470	70	160	200	14	175	90	165	255	500	160	55	145	140	10	150	38
YW- 250/E23	Ed 23/5	140-250	570	90	160	250	18	205	110	200	290	585	190	65	180	149	12	180	42
YW- 250/E30	Ed 30/5	180-315	570	90	160	250	18	205	110	200	290	585	190	65	180	149	12	180	45
YW- 250/E50	Ed 50/6	315-500	570	90	190	250	18	205	110	200	290	570	190	65	180	149	12	180	50
YW- 315/E30	Ed 30/5	250-400	590	110	160	315	18	255	115	245	330	585	230	80	220	174	17	170	70
YW- 315/E50	Ed 50/6	400-630	630	110	190	315	18	255	115	245	330	585	225	80	220	180	17	170	75
YW- 315/E80	Ed 80/6	630-1000	630	110	190	315	18	255	115	245	330	585	225	80	220	180	17	170	80
YW- 400/E80	Ed 80/6	630-1250	710	140	190	400	22	310	160	310	420	775	280	100	270	220	14	170	110
YW- 400/E121	Ed 121/6	1000-2000	700	140	240	400	22	310	160	310	420	775	280	100	270	220	14	170	125
YW- 500/E80	Ed 80/6	800-1600	810	180	190	500	22	390	180	365	535	845	340	130	325	270	21	180	175
YW- 500/E121	Ed 121/6	1120-2500	800	180	240	500	22	390	180	365	535	845	340	130	325	270	21	180	204
YW- 500/E201	Ed 201/6	2000-4000	800	180	240	500	22	390	180	365	535	845	340	130	325	270	21	180	204

Additional option:

1. Manual release device

2. Release (open the brake) or close (close the brake) limit switch, which can realize the signal display of whether the brake is normally released or closed.

3. The lining wear limit switch can realize the signal display when the brake lining wears to the limit (note: automatic compensation device must be used in application).

4. Automatic compensation device for brake pad wear. It can realize stepless automatic compensation of shoe clearance and braking torque when the gasket is worn.

5. It is driven by a pusher with a descending delay valve to realize the delay closing of the brake.
