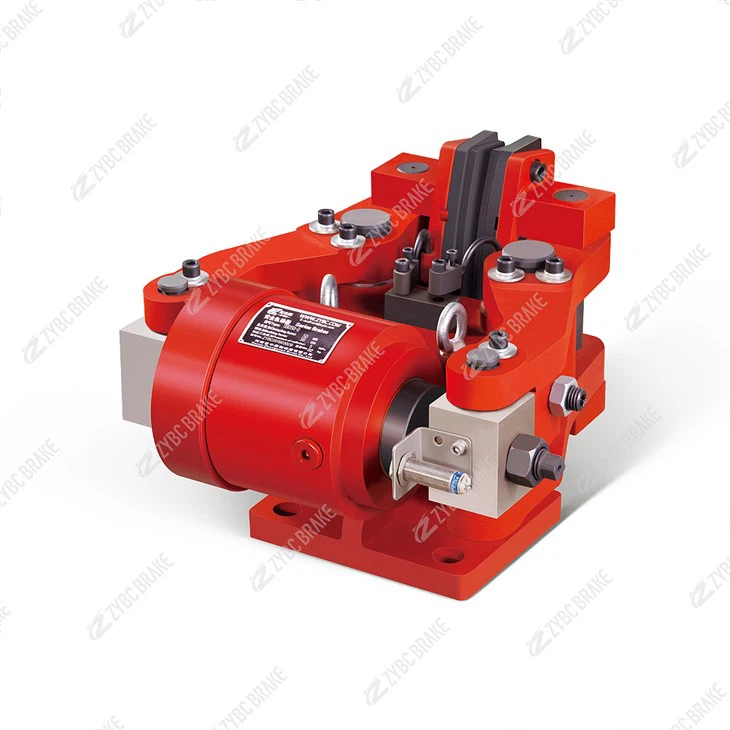

SBD50-D Safety Brake

Installation and Use of the SBD50-D Safety Brake

1. Installation

Important Safety Precautions:

• De-energize:​ Before installation, ensure all power sources (electrical, hydraulic, pneumatic) to the system and brake are isolated and locked out/tagged out (LOTO).
• Professional Handling:​ Installation should be performed by qualified personnel following all applicable local and national safety regulations and mechanical/electrical codes.
• Clean Environment:​ Assemble in a clean area to prevent contamination of friction surfaces and seals.
• Torque Specifications:​ Always use a calibrated torque wrench and adhere strictly to the manufacturer's specified tightening torques for all fasteners.

Installation Steps:

A. Mechanical Mounting:

• Shaft Preparation:​ Ensure the motor or gearbox shaft is clean, dry, and free of burrs. Verify the shaft diameter, keyway dimensions, and tolerances match the brake's hub specifications (SBD series typically uses a hollow shaft/through-bore design).
• Mounting Surface:​ The mounting surface (motor flange, adapter plate) must be flat, clean, and perpendicular to the shaft axis to prevent misalignment and uneven wear.
• Positioning the Brake:​ Slide the brake assembly onto the shaft. Align it carefully with the mounting holes. For keyed connections, ensure the key is properly seated.

Securing:

• Shaft Fixation:​ Secure the brake to the shaft using the designated method (e.g., a locking collar with set screws, or a clamping hub). Tighten evenly and to the specified torque.
• Flange Fixation:​ Insert and hand-tighten the flange mounting bolts. In a star pattern, gradually tighten the bolts to the specified torque to ensure even pressure and avoid distorting the brake housing.

B. Electrical Connection (for electrically released models - if applicable):

• Cable Entry:​ Use the correct cable gland suitable for the cable diameter and providing the required Ingress Protection (IP) rating.
• Wiring:​ Connect the power leads to the correct terminals as per the wiring diagram (typically found on the unit or in the manual). Common connections are for AC/DC supply. Ensure all connections are tight.
• Sealing:​ Ensure the terminal box cover seal is intact and the cover is securely fastened to maintain the IP rating and, if applicable, the explosion-proof integrity.

C. Functional Check (Before Full Operation):

• Manual Release (if equipped):​ Operate the manual release mechanism to ensure the brake disengages smoothly and the shaft can be turned freely by hand.
• Air Gap Check:​ For models with an adjustable air gap, verify the gap between the armature and the rotor/lamination pack is within the manufacturer's specified range using a feeler gauge.
• Clearance:​ Ensure there is adequate physical clearance around the brake for cooling and service access.

2. Use and Operation

Operating Principle:

The SBD50-D is a Spring-Applied, Electrically Released (or Hydraulically Released) Safety Brake.

Default State (De-energized):​ Powerful internal springs apply braking force, clamping the friction disks/plates. The brake is engaged, holding the load securely. This is its fail-safe state.

Release State (Energized):​ When the release mechanism (solenoid coil or hydraulic pressure) is activated, it generates a force that overcomes the spring pressure. This separates the friction surfaces, releasing​ the brake and allowing the shaft to rotate.

Normal Operation Cycle:

To start the machine, the brake's release mechanism (e.g., 24VDC coil) is energized.

The brake disengages with a characteristic "click" or movement observed at the release indicator (if present).

The motor/drive can now accelerate and run freely.

To stop, the motor/drive is commanded to halt. Once near zero speed, the brake's power is cut.

The springs immediately re-apply the braking torque, bringing the shaft to a complete stop and holding it stationary.

Critical Usage Notes:

NOT a Holding Brake Only:​ The SBD50-D is a safety brake. Its primary function is to stop and hold in the event of power loss or as an emergency stop. It is not designed for frequent cycling or dynamic braking​ (slowing down moving loads). Frequent use for stopping will lead to rapid wear and overheating.

Zero-Speed Switching:​ The brake should generally be engaged only when the shaft speed is very low (near zero) to minimize wear. Use appropriate control sequencing.

Thermal Limits:​ Do not exceed the maximum allowable number of engagements per hour or the maximum energy dissipation per stop as defined in the technical data. Excessive cycling will cause overheating and failure.

Monitor Wear:​ Periodically check the wear indicator (if equipped) or measure the air gap. Adjust or replace friction components when wear limits are reached.

Lubrication:​ Do not lubricate the friction surfaces. Some bearings may be pre-lubricated for life; follow manufacturer instructions if re-lubrication is required.

Maintenance:

Perform regular visual inspections for damage, loose hardware, and signs of contamination.

Check electrical connections for tightness periodically.

Monitor performance. Increased release time, unusual noises, or loss of holding torque indicate the need for inspection/service.

Replace worn friction components (discs/linings) as a complete set as specified by the manufacturer.

Summary:​ The SBD50-D Safety Brake is a critical safety component. Correct installation ensures mechanical integrity, while proper use-respecting its role as a fail-safe holding and emergency stop device, not a routine service brake-is essential for safety, performance, and long service life. Always consult and follow the official manufacturer's installation and operation manual​ for the specific SBD50-D model in use.
