DCPZ SERIES ELECTROMAGNETIC DISC BRAKES

APPLICATION

●DCPZ Series electromagnetic disc brakes are widely used for speed reducing, stopping/braking of the low or medium torque drving mechanism. The brakes can also be aplied as tension brake on winding machines, such as: paper-web tension control,news paper publishing tension control, steelunwind control, wire and cable reel unwind tension etc.

OPERATING CONDITION
●Amblient tomperature: -20℃ - + 40℃
●Relative humidity: s90%
●Voltages: AC 380V 50H2; ( Other voltage can be made as requlred ).
●Working condition; No risk of oxplosion condtlons, gas and olectrical angstrom which will corrode metal and damage the insulation.
●Special requirements can be discussed before production.

●Detoction switch can be installed as noded, which can realize signal indlcaton and interlocking protection.

MAIN FEATURE
●Compact structure and small size, light. It is easy to control and operate.
●Many kind of friction materials can be chosen, it adapts to the different operating modes.
●With the manual release function, emergency release when the power failure.
●The linings are of inserting installation style and non-asbestos. It is easy to be replaced.
●Brake closes in case of power failure (Fai-Safe Principle). Normally closed design-Spring Braking,released by electromagnetic.

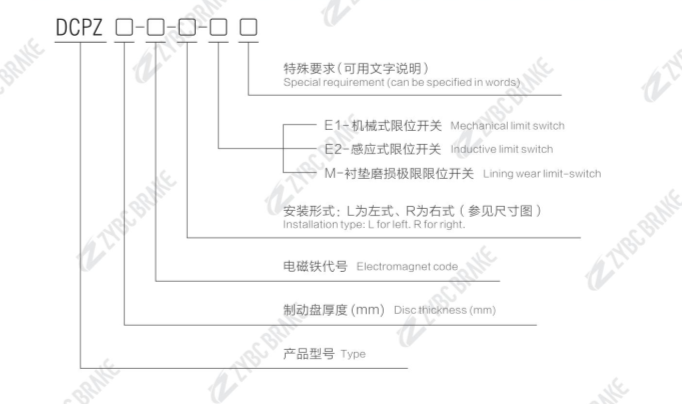

ORDER MARK

ORDER EXAMPLE

●DCPZ12.7-400-L

DCPZ15-315-L-E1

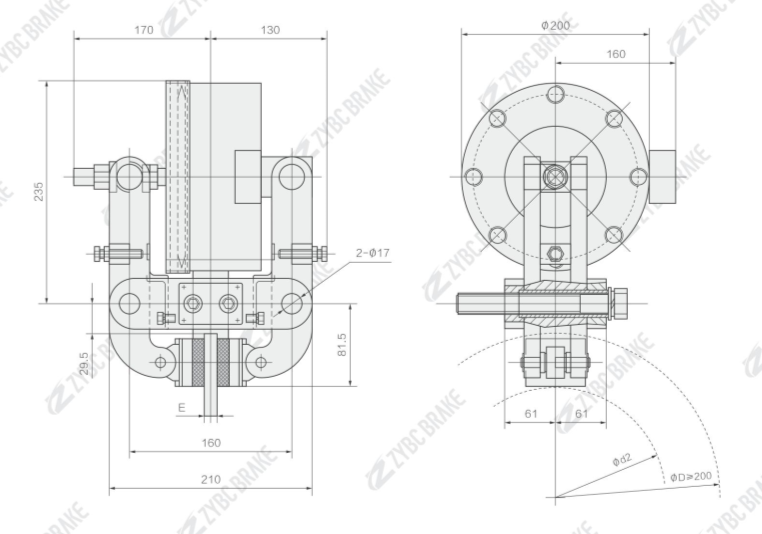

OUTLINE AND INSTALLATION DIMENSION

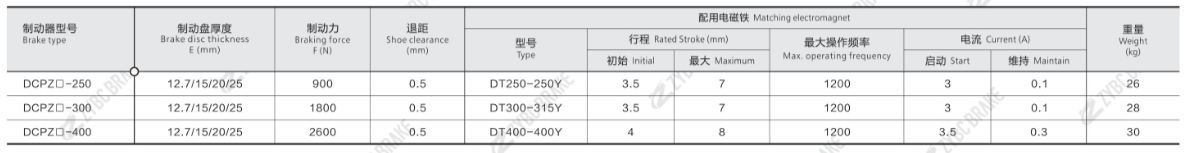

TECHNICAL DATA AND DIMENSIONS OF DCPZ SERIES ELECTROMAGNETIC DISC BRAKES

●Notes: Dynamic torque calculating: M=F x(disc radius (in m)-0.03]N.m

●The size of the specitic type and structure should be retained.
