Electromagnetic Fail Safe Brake
DJPZ Series Electromagnetic Fail Safe Brake The motor disc brakes are an important component of the electric drive system. It is matched with Y series motor to form a new type YEJ series electromagnetic brake three-phase asynchronous motor. Mainly used in metallurgy, chemical industry,...
Description

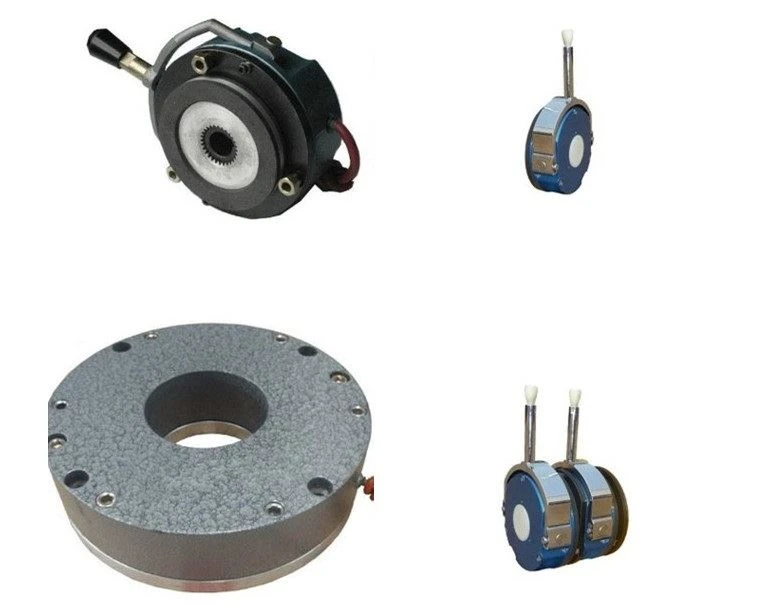

DJPZ Series Electromagnetic Fail Safe Brake
The motor disc brakes are an important component of the electric drive system. It is matched with Y series motor to form a new type YEJ series electromagnetic brake three-phase asynchronous motor. Mainly used in metallurgy, chemical industry, construction, mining machinery and other industries,
It can realize fast parking and accurate positioning, and brake the mechanism. The brake has the advantages of compact structure, convenient installation, low noise, high sensitivity and reliable braking.
Outline and installation dimension
Conditions of Use
1. Suitable ambient temperature: -20℃～+40℃;
2. The power supply voltage is: AC380V/50HZ, and the working mode is S1 or S3;
3. The altitude of the place of use does not exceed 2000m;
4. Use indoors where the relative humidity of the air is not greater than 90% or under rain and snow protection devices;
5. The insulation grade of DJPZ series brake coils is: Class B
Technical parameter of DJPZ
Type | Matching motor frame number | Brake torque (Nm) | Rated power（20℃）W | Braking time（ms） | Max.working air gap（mm） | Max.relative speed（rpm） | Rated voltage DC（V） |
DJPZ-02 | 63 | 2 | 25 | 0.2 | 0.6 | 3000 | 99 |
DJPZ-04 | 71 | 4 | 30 | 0.2 | 0.8 | 3000 | 99 |
DJPZ-08 | 80 | 7.5 | 40 | 0.2 | 1 | 3000 | 99 |
DJPZ-15 | 90 | 15 | 50 | 0.2 | 1 | 3000 | 99 |
DJPZ-30 | 100 | 30 | 65 | 0.2 | 1 | 3000 | 99 |
DJPZ-40 | 112 | 40 | 70 | 0.25 | 1 | 3000 | 170 |
DJPZ-80 | 132 | 75 | 95 | 0.25 | 1.2 | 3000 | 170 |
DJPZ-150 | 160 | 150 | 110 | 0.35 | 1.2 | 3000 | 170 |
DJPZ-200 | 180 | 200 | 150 | 0.35 | 1.2 | 3000 | 170 |
DJPZ-300 | 200 | 300 | 200 | 0.45 | 1.5 | 3000 | 170 |
DJPZ-450 | 225 | 450 | 200 | 0.45 | 1.5 | 3000 | 170 |
DJPZ-600 | 250 | 600 | 210 | 0.5 | 1.5 | 3000 | 170 |
DJPZ-850 | 280 | 850 | 340 | 0.6 | 1.5 | 3000 | 170 |
DJPZ-2000 | 315 | 2000 | 400 | 0.7 | 2 | 3000 | 170 |
Our service
1. 12 months product warranty
2. Provide technical support 24/7 by phone, Whatsapp or email
3. Lifetime parts support
4. Integrity management is our philosophy, welcome to visit our company at any time
5. According to your order, we will confirm the fastest delivery date for you.
6. We also provide reasonable packaging and transportation solutions to save money and safe transportation.
Just trust us, you will get a satisfactory answer.
If you want more detailed information, please feel free to contact Zhongyuan Brake, we can also design various non standard brakes for users.
