DCPZ-300 Electromagnetic Caliper Disc Brake – DC 24V/110V/220V, Air-Off-to-Release, No Hydraulic, No Air, For CNC, Robot & Automation
DCPZ-300 Electromagnetic Caliper Disc Brake ✔ Normally Open - Power ON = Clamp, Power OFF = Release: DCPZ-300 is a spring-release, DC-electromagnet-apply disc brake . With no power, the caliper pads retract and the disc rotates freely. Energize the DC coil → electromagnetic force + assist...
Description

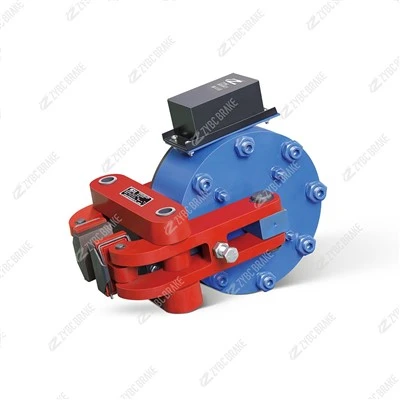

DCPZ-300 Electromagnetic Caliper Disc Brake
✔ Normally Open - Power ON = Clamp, Power OFF = Release: DCPZ-300 is a spring-release, DC-electromagnet-apply disc brake. With no power, the caliper pads retract and the disc rotates freely. Energize the DC coil → electromagnetic force + assist spring close both arms → pads clamp the Ø300 disc. Designed for work-holding, tensioning, indexing, and positioning - the disc-brake equivalent of the CQP-A pneumatic logic, but driven purely by electricity.
✔ Zero Air, Zero Oil, Pure Electric Control: No compressor, no air tank, no pneumatic valves, no hydraulic thruster, no oil seals. Just 24V / 110V / 220V DC wiring. Cleanroom-ready, lab-safe, food & pharma compatible - no oil mist, no exhaust noise, no condensation drip.
✔ Fast Response - ~0.10s Clamp / ~0.10s Release: Electromagnetic actuation is inherently faster than pneumatic (no air-line fill time) and hydraulic (no oil flow delay). 0.1s-level action suits high-cycle automation and servo-controlled stopping.
Products Description
The DCPZ-300 Series is a range of normally open electromagnetic caliper disc brakes built for work-holding and positioning - the electromagnetic, disc-type counterpart to the CQP-A pneumatic caliper. Same "air-on-to-clamp" philosophy, but actuated by a DC electromagnet instead of compressed air.
It completes the actuation map:
| Logic | Series | Actuation | Best For |
|---|---|---|---|
| Fail-safe NC (power/air off = brake ON) | MWZ / TJ2 / JZ (drum), YW (drum), SBD (disc) | Spring-applied | Emergency stop, safety |
| Work-hold NO (power/air on = clamp) | DCPZ-300 (this) | DC electromagnet | Precision clamp, automation |
| Work-hold NO (air on = clamp) | CQP-A | Pneumatic | Clamp where air exists |
Typical Applications:
Servo press ram lock - hold ram at position against load
Indexing / rotary table - precise angular positioning
Robot joint brake - hold pose when servo is off (safety + energy saving)
CNC rotary table & 4th-axis - zero-backlash clamping
Wind turbine yaw lock - hold nacelle against wind torque (DC, no oil)
Coiler / unwinder tension brake - adjustable back-tension via current control
Conveyor transfer stop, pallet position lock - positive repeatable stop
Lab / cleanroom / medical automation - oil-free, quiet, electric-only
Technical Specifications
| Parameter | Value |
|---|---|
| Series | DCPZ-300 (Normally Open, DC electromagnet apply, spring release) |
| Brake Type | Electromagnetic caliper disc brake, floating arm |
| Disc Diameter | Ø300 mm (common DCPZ disc size; 250/400 also available in family) |
| Disc Thickness | 15 / 20 / 25 mm (confirm at order) |
| Caliper Models | DCPZ-300/05 · /10 · /20 · /30 |
| Clamping Force (per side, at rated)* | /05: ~5 kN · /10: ~10 kN · /20: ~20 kN · /30: ~30 kN |
| Est. Braking Torque (Ø300, μ0.35)* | /10 ≈ 525 N·m · /20 ≈ 1050 N·m · /30 ≈ 1575 N·m |
| Actuation | DC electromagnet (single-current, shunt coil) |
| Coil Voltage | DC24V / DC110V / DC220V (others on request) |
| Response Time | ~0.10s clamp / ~0.10s release |
| Operating Frequency | ≤ 720 cycles/h (continuous holding OK, S1) |
| Force Adjustment | Infinitely via coil current (PWM / current control) |
| Holding Current (typical)* | Coil stays energized while clamping; use economizer for long hold |
| Protection Class | IP20 (coil) / IP54 optional enclosure |
| Friction Lining | Asbestos-free, card-lock insert, low-wear |
| Lining Wear Limit | 5 mm (wear limit switch optional) |
| Ambient Temp. | -20°C to +50°C (std); low-temp & high-temp coil options |
| Standards | JB/T 7685 reference, IEC 60204-1 electrical |
| Mounting | Side-mount bracket, horizontal/vertical adaptable |
| Options | Economizer (reduced holding current), Ex d coil, limit switch, manual release, IP54 cover, low-/high-temp coil |
