Overhead Crane Electro Hydraulic Drum Brake Device video

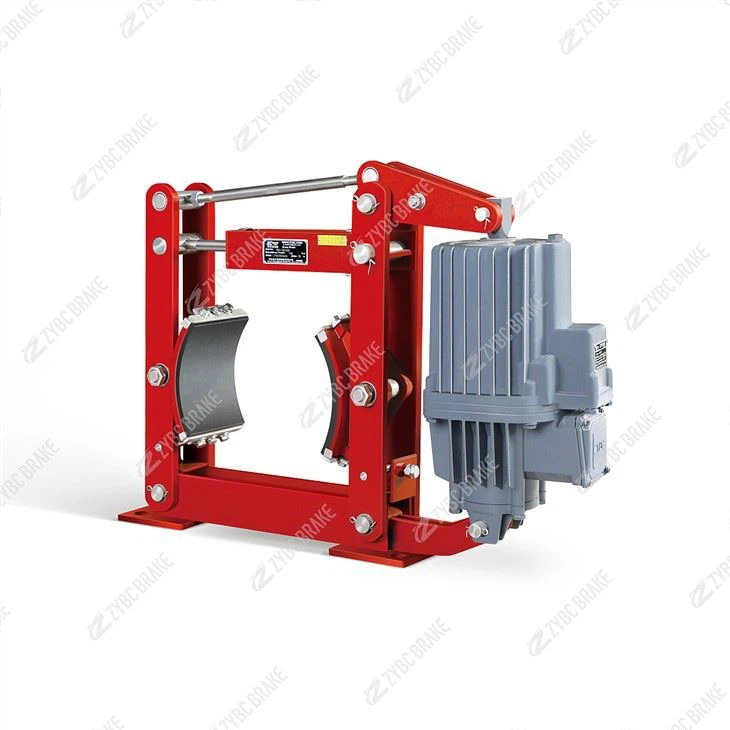

Overhead Crane Electro Hydraulic Drum Brake Device

High quality electric hydraulic drum brake is widely used in the hoisting, transportation, metallurgy, mines, ports, and civil construction as brake gears of various machines.

Description

YWZ4 Series Electro-hydraulic Drum Brakes(with type ED electrohydraulic thruster)

Original:He Nan, China

Certification: ISO9001, ISO14001, OHSAS18001, TX, EX, MA etc

Packing: export standard

Max. Drum Diameter(mm) 800

Max. Brake Torque (Nm) 12500

Operating Condition" Ambient temperature: -20°C~+50°C ;

Relative humidity:≤90%;

Power:AC 3 phases 50(60)Hz

Voltages: 380~400V 50Hz  440~460V 60Hz

Operating duty: intermittent (S3-60%.1200times per hour)and continuous (S1).

Special requirements can be discussed in order.

The dimensions and braking torque parameters of YWZ4 series brakes comply with JB/ZQ4388-86 standard,technology requirements comply with JB/T6406-2006 standard.

They are equipped with Ed series thrusters which comply with DIN15430 standard.


YWZ4系列电力液压鼓式制动器-22_副本


Hot Tags: overhead crane electro hydraulic drum brake device, China, manufacturers, supplier, factory, customized, crane Disc brake, Foot Operated Hydraulic Drum Brakes, Conveyor Disc brake, overhead crane brakes, thrusters drum brake, air pressure crane drum brake
