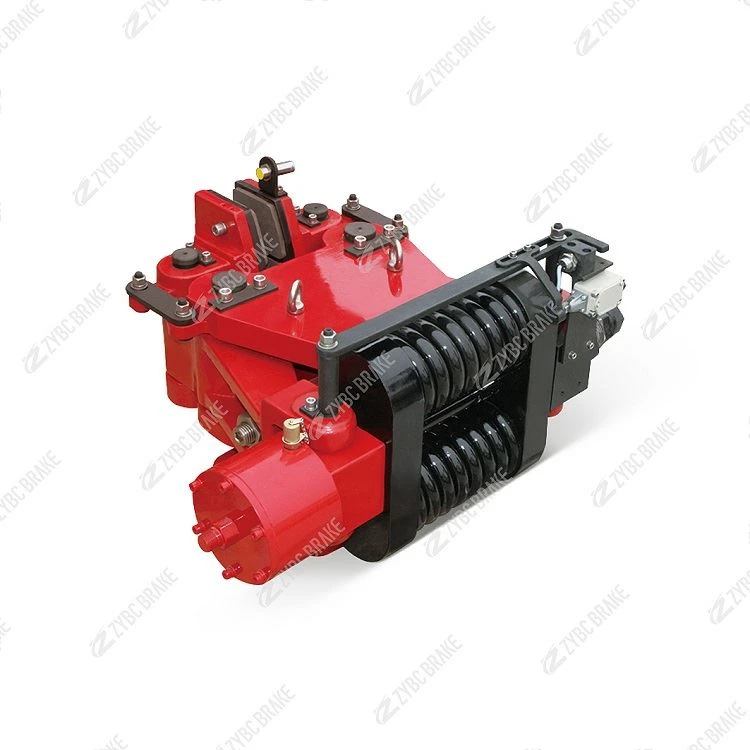

SBD-B Series Hydraulic Failsafe Brake

The brake has the advantages of compact structure, large braking torque and convenient installation. It is mainly used for the mechanical braking or deceleration of various mechanical drives in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, sling equipment, wind generators, textile machinery and so on.

Basic parameters

Product model: SBD80-B, SBD160B

Applicable disk diameter: ØD≥Ø800mm

Braking force: 57KN-115KN

Conditions of Use

1. Ambient temperature: -20℃～+50℃.

2. The relative humidity of the air is less than or equal to 90%.

3. There should be no flammable and explosive gas in the surrounding working environment.

4. The altitude of the place of use conforms to GB755-2000.

5. Anti-corrosion products should be used if the outdoor rain and snow erodes or is caused by corrosive gases and media.

Main feature

1. Compact structure and large braking torque.

2. With automatic compensation device, the response time is short.

3.It can be used for work braking and safety braking.

4. Work braking, allowing high frequency braking.

5. Normally closed design is safe.

Outline and installation dimension

Installation diagram
