Hydraulic Rail Clamp

Most of the hoisting machinery and equipment used in ports and large railway cargo sites are installed in open places with extremely strong winds, and they will be attacked by sudden gusts and typhoons. Many major accidents have caused huge losses, so some wind-proof safety measures need to be taken.

YJGQ hydraulic rail clamp is mainly used for various bridge type, gantry type container cranes and other rail-mounted machinery in working or non-working state to prevent wind and resist other external impacts.

Conditions of Use

1. Ambient temperature: -20°C~+50°C

2. Hydraulic station drive power: generally used for three-phase AC380V, 50HZ

3. Control power supply of hydraulic station: AC220V, 50HZ

4. Applicable working mode: intermittent, short-term action, lower frequency

Main feature

1. Normally closed design, spring force clamping, hydraulic cylinder drive release

2. Equipped with a limit switch, which can be interlocked and protected with the crane traveling mechanism

3. The clamp body can be a floating structure: horizontal floating distance ±20mm, vertical floating distance ±20mm

Outline and installation dimension

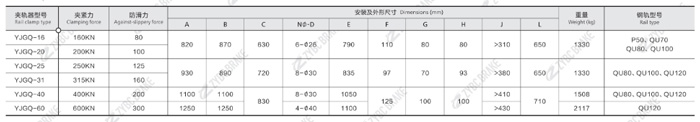

Technical data and dimensions of YJGQ hydraulic rail clamp
