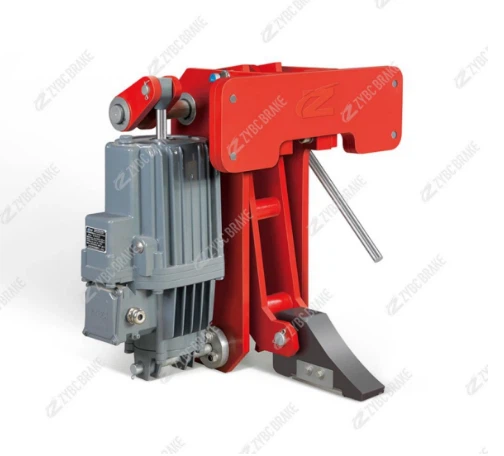

The YFX-800/80 is a specialized electro-hydraulic storm braking wedge (also known as a rail clamp or wind-proof brake). It is a critical safety device designed specifically for large, outdoor rail-mounted machinery to prevent them from sliding or tipping over during sudden high winds or storms.

The model number breakdown is as follows:

YFX: The series designation for electro-hydraulic storm braking wedges.

800: Indicates it is designed for a crane wheel diameter of 800 mm.

80: Indicates it is matched with an Ed80 electro-hydraulic thruster (typically 800 N thrust force).

💡 Key Features & Characteristics

Fail-Safe "Normally Closed" Operation:

Power-to-Release, Spring-to-Brake: When the crane is operating, the electro-hydraulic thruster is powered on. The thruster's push rod rises, lifting the iron wedge via a lever mechanism so the crane can move freely. When the power is cut (during a shutdown or unexpected power outage), the internal spring forces the push rod down, instantly dropping the wedge onto the rail to firmly lock the crane's wheels in place.

Storm Protection: This fail-safe mechanism ensures the machinery is automatically secured against strong winds the moment it loses power, preventing catastrophic sliding or overturning accidents.

High-Performance Specifications (YFX-800/80):

Wheel Compatibility: Specifically engineered to fit a standard 800 mm crane wheel.

Drive Unit: Powered by an Ed80 series electro-hydraulic thruster (such as Ed80/6), providing reliable and rapid actuation.

Power Supply: Operates on a standard AC 380V / 50Hz three-phase power supply.

Robust & Safety-Oriented Design:

Interlocking Protection: Equipped with limit switches (行程开关) that interlock with the crane's travel circuit. The crane's main travel motor cannot operate unless the wedges are fully raised, preventing the machinery from moving while the brakes are engaged.

Delayed Drop Mechanism: The hydraulic thruster features a built-in delay valve. This ensures that when power is cut, all wedges on the crane drop onto the rail simultaneously and smoothly, avoiding sudden impact shocks to the running mechanism.

Manual Release: Includes a manual release handle for maintenance purposes. This allows technicians to lift and lock the wedges in the open position without needing to energize the system.

High-Friction Wedges: The iron wedges are treated with special processes to ensure a high friction coefficient and excellent corrosion resistance, guaranteeing a firm grip on the rail even in harsh outdoor environments.

Environmental Adaptability:

Designed to operate reliably in ambient temperatures ranging from -20°C to +50°C and in environments with relative humidity up to 90%.

🏭 Typical Applications

The YFX-800/80 is essential for securing massive outdoor machinery in exposed environments:

Port & Harbor: Large container gantry cranes (RMGs/RTGs), ship-to-shore cranes, and bulk material handling equipment.

Heavy Industry: Large outdoor gantry cranes (such as MG type cranes, typically 20 tons to 200+ tons) used in mining, metallurgy, and heavy manufacturing.

Railway & Logistics: Outdoor rail-mounted loading/unloading bridges and portal cranes.

📋 General Technical Specifications

表格

Note: The YFX-800/80 is a critical life-saving safety component for outdoor cranes. During installation, it must be securely welded or bolted to the crane's end carriage (traveling beam). Regular inspection of the wedge's height relative to the rail, the hydraulic fluid levels, and the functionality of the interlocking limit switches is absolutely essential to ensure the system reacts instantly during a power loss or storm emergency.
