Heavy Duty YWZ8-200/E30 Power-Off Brake | Ø200 Drum, Ed30/5 (IP65), Spring-Applied Drum Brake For Overhead Crane Trolley & Winch
Heavy Duty YWZ8-200/E30 Power-Off Brake ✔ Fail-Safe, Spring-Applied - Power Off = Brake On Normally closed design. When power cuts or Ed thruster de-energizes, internal main springs instantly clamp both brake shoes onto the Ø200mm drum from both sides. Zero external energy required to...
Description

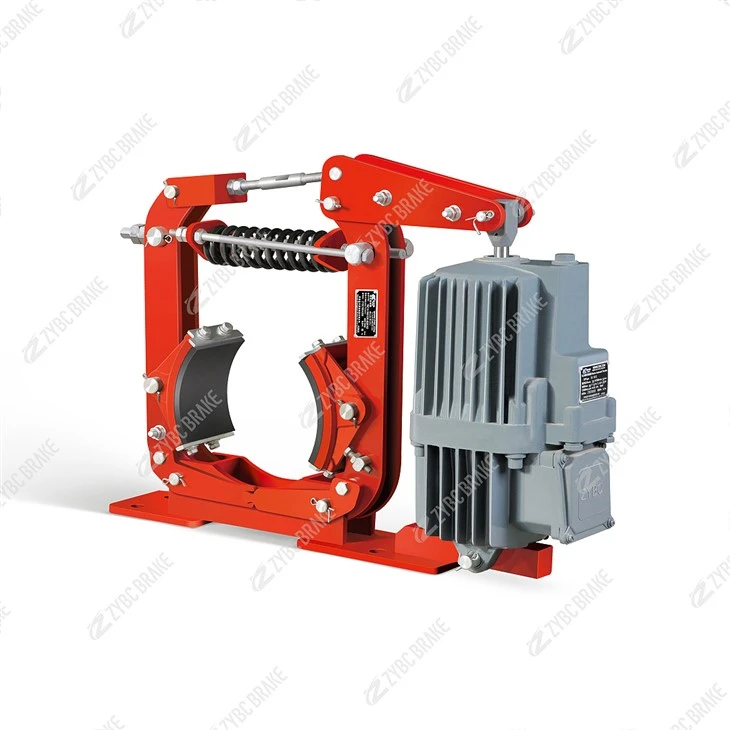

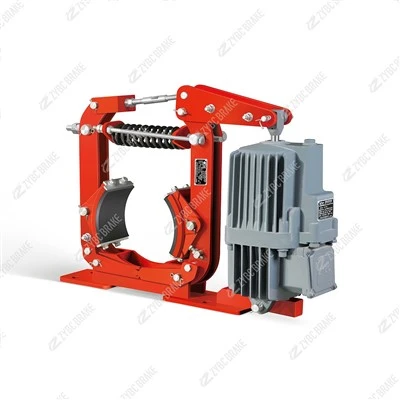

Heavy Duty YWZ8-200/E30 Power-Off Brake
✔ Fail-Safe, Spring-Applied - Power Off = Brake On
Normally closed design. When power cuts or Ed thruster de-energizes, internal main springs instantly clamp both brake shoes onto the Ø200mm drum from both sides. Zero external energy required to stop the load - your automatic safety barrier on every crane and conveyor.
✔ Ed30/5 Thruster - 30% More Thrust Than Ed23/5
23kgf → 30kgf of push force. Engineered for heavier loads and higher friction demand. IP65 sealed motor, class F insulation, HZ/TZ dual-travel. Smooth release, low shock, rated ≥800,000 cycles.
✔ Upgraded YWZ8 Frame - No More Shoe Chatter
The YWZ8 series re-proportions the lever ratio and thickens the brake housing to 18mm cast steel. Tested at 120% of rated torque - shoes stay seated even at high drum RPM. Eliminates the shoe-judder and drum-scrub problems common on YWZ4-200 units.
✔ Auto Equal Clearance + Self-Lubricating Pivots
Both shoes retract evenly on opening. All 4 pivot pins use oil-free self-lubricating bushings - no daily greasing. Card-lock insert linings (no riveting) cut on-site change time to under 10 minutes.
Products Description
The YWZ8-200/E30 is a heavy-duty normally closed electro-hydraulic drum brake, the upgraded sibling of the YWZ4 series, designed for medium-to-heavy duty braking on 5–10 ton bridge/gantry cranes, belt conveyor head pulleys, and winch/trolley drives.
It combines a spring for braking force with an Ed30/5 electro-hydraulic thruster for release. Electricity is used ONLY to open the brake - the spring does all the stopping work. This is why it is called "fail-safe": remove the power and the brake engages automatically.
Typical Applications:
5–10t Overhead / gantry crane hoist & trolley drives
Belt conveyor head pulley (emergency & parking brake)
Port quayside & container crane travel mechanism
Mine hoist and drawworks auxiliary brakes
Metallurgy furnace charger & ladle transfer car
⚙️ Technical Specifications
|
Parameter |
Value |
|---|---|
|
Model |
YWZ8-200/E30 |
|
Brake Type |
Normally closed, spring-applied, electro-hydraulic released |
|
Brake Wheel (Drum) Diameter |
Ø200 mm |
|
Rated Braking Torque |
200 N·m |
|
Thruster Model |
Ed30/5 (Ed30/6 optional for cold zone) |
|
Thruster Thrust |
30 kgf |
|
Opening Time |
~0.35 s |
|
Closing Time |
~0.50 s |
|
Thruster Voltage |
380V/50Hz (220V/440V/60Hz available) |
|
Protection Class |
IP65 (thruster) |
|
Insulation Class |
F |
|
Friction Lining |
Asbestos-free insert, card-lock type |
|
Lining Wear Limit |
5 mm (visual scale on spring rod) |
|
Brake Housing Material |
Cast steel, wall thickness 18 mm |
|
Ambient Temp. |
-20°C to +50°C (standard) |
|
Standard |
JB/T6406-2006 (equivalent DIN 15435) |
|
Mounting |
Horizontal base, left/right hand interchangeable |
|
Options |
Limit switch, manual release lever, low-temp heater, Ed30/6 thruster |
