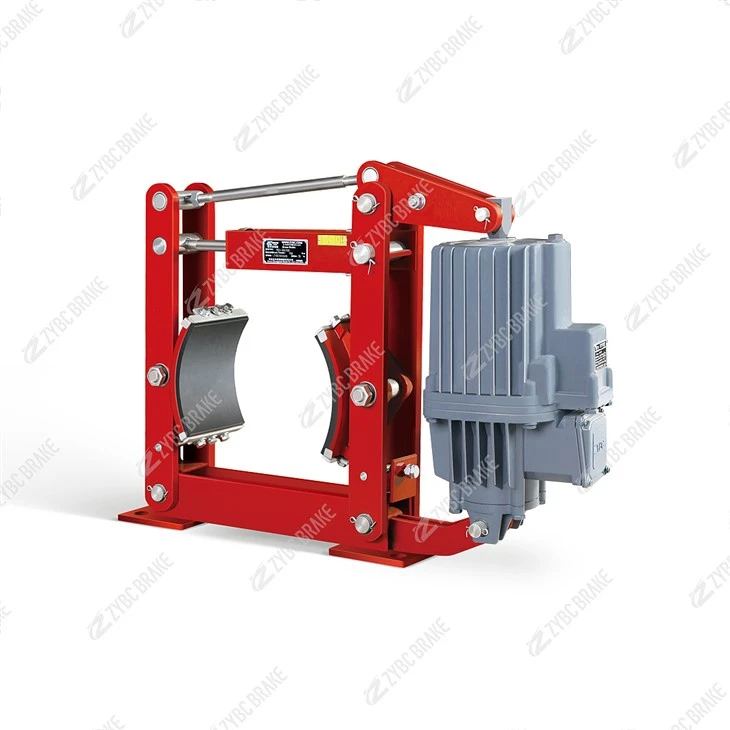

YWZ4-150/E23 Power-Off Auto Brake – 100N·m Spring-Applied Drum Brake With Ed23/5 Thruster, JB/T6406 Compliant
YWZ4-150/E23 Power-Off Auto Brake ✔ Fail-Safe, Spring-Applied - Power Off = Brake On Normally closed design. When power cuts or thruster de-energizes, internal springs instantly clamp the brake shoes onto the drum. No external energy needed for braking. Prevents load runaway on crane hoist and...
Description
YWZ4-150/E23 Power-Off Auto Brake
✔ Fail-Safe, Spring-Applied - Power Off = Brake On
Normally closed design. When power cuts or thruster de-energizes, internal springs instantly clamp the brake shoes onto the drum. No external energy needed for braking. Prevents load runaway on crane hoist and trolley drives.
✔ Ed23/5 Electro-Hydraulic Thruster - Fast & Stable
Equipped with Ed23/5 thruster (23kg thrust / 0.5s closing, 0.35s opening). IP65 motor, class F insulation, HZ/TZ dual-travel structure. Smooth engagement, low impact, long service life (≥1 million cycles).
✔ Equal Clearance Mechanism - No Shoe Drag
Automatic equal-retraction linkage ensures both brake shoes retract evenly. No unilateral wear, no drum overheating. Lining life extended by 30% vs. old YWZB series.
✔ Quick-Change Lining, Self-Lubricating Pivot
Asbestos-free insert linings with card-lock design - no riveting, replace in 10 minutes on site. All hinge pins use oil-free self-lubricating bearings (no daily greasing needed).
Products Description
The YWZ4-150/E23 is a heavy-duty normally closed electro-hydraulic drum brake widely used on bridge cranes, gantry cranes, belt conveyors, and winch trolleys. It uses a spring for braking and an Ed23/5 electro-hydraulic thruster for release - the most proven and economical brake solution in Chinese crane industry for 20+ years.
It is the recommended upgrade over legacy YWZB models: improved equal-clearance mechanism, self-lubricating hinges, and torque scale indicator on the spring rod.
Typical Applications:
Overhead / gantry crane hoist & trolley drives
Belt conveyor head pulley (emergency & parking stop)
Port quayside crane travel mechanism
Mine hoist auxiliary drives
Metallurgical plant transfer cars
⚙️ Technical Specifications
|
Parameter |
Value |
|---|---|
|
Model |
YWZ4-150/E23 |
|
Brake Type |
Normally closed, spring-applied, electro-hydraulic released |
|
Brake Wheel (Drum) Diameter |
Ø150 mm |
|
Rated Braking Torque |
100 N·m |
|
Thruster Model |
Ed23/5 (Ed23/6 optional) |
|
Thruster Thrust |
23 kgf |
|
Opening Time |
~0.35 s |
|
Closing Time |
~0.50 s |
|
Thruster Voltage |
380V/50Hz (220V/440V/60Hz available on request) |
|
Protection Class |
IP65 (thruster) |
|
Insulation Class |
F |
|
Friction Lining |
Asbestos-free, rivet-free insert type |
|
Lining Wear Indicator |
Torque scale on spring rod (visual check) |
|
Ambient Temp. |
-20°C to +50°C (standard) |
|
Standard |
JB/T6406-2006 (equivalent DIN 15435) |
|
Mounting |
Horizontal base mounting, left/right hand interchangeable |
|
Options |
Manual release lever, limit switch (open/closed signal), heating element for cold zone |
