Thruster Brake For EOT Crane

Thruster Brake For EOT Crane

YW-E series electric hydraulic thruster brake is widely used in the operating mechanism of various large and medium-sized outdoor cranes. It has superior deceleration braking performance and ideal wind braking effect. The product can also be used in the large and small car operating mechanism of large special cranes, which can realize smooth deceleration braking and reliable maintenance braking. This product also has ideal braking performance for working brakes used for belt transportation.

Basic parameters:

Product model: YW-E200, YW-E250, YW-E300, YW-E315, YW-E400

Applicable wheel diameter: 200～400mm

Braking torque: 200～2500Nm

Working conditions:

Altitude: <2000m;

Ambient temperature: -20°C~+40°C;

Relative humidity: ≤90%;

Work system: intermittent (S3-60%) and continuous (S1);

Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as required);

If there are special requirements, please negotiate and determine when ordering.

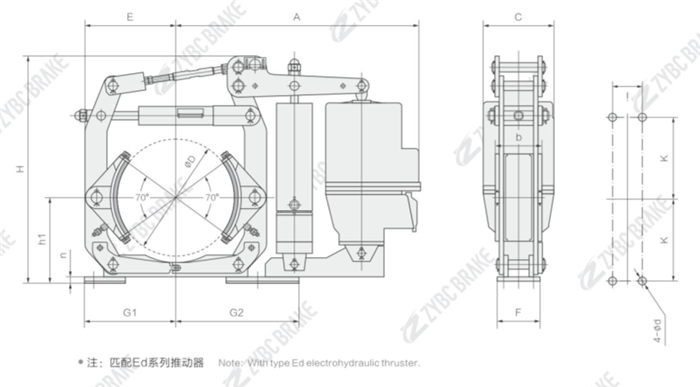

Outline and installation dimension

Technical data of YW-E series electric hydraulic thruster brake
