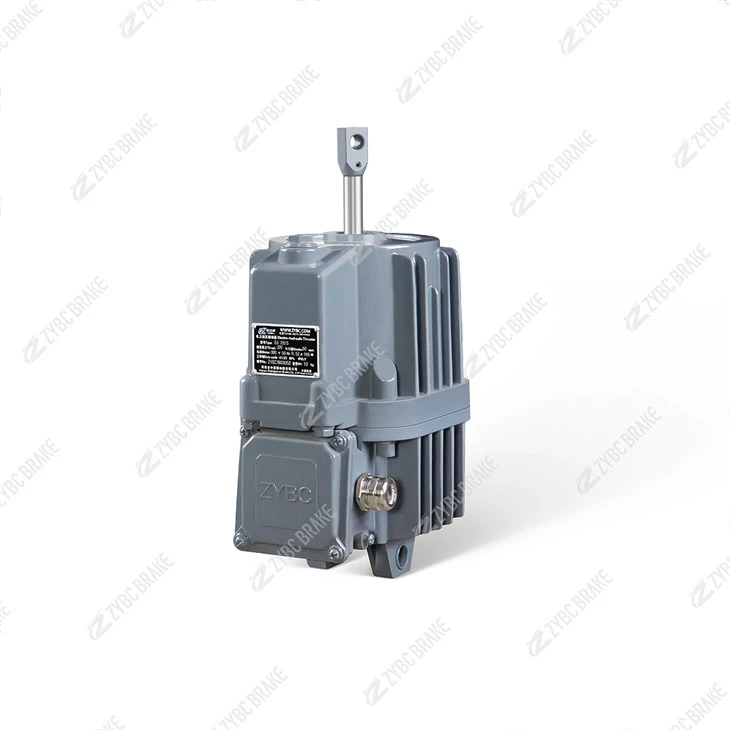

Ed23/5 Series Electro‑hydraulic Thruster | Brake Driving Pusher For Industrial Drum Brakes

Ed23/5 Series Electro‑hydraulic Thruster | Brake Driving Pusher for Industrial Drum Brakes

Ed23/5 Series Electro‑hydraulic Thruster is a dedicated driving actuator for industrial drum brakes. When powered on, the built‑in motor drives the hydraulic system to produce thrust, pushing the brake mechanism to release the brake. After power‑off, it resets under spring force to realize brake engagement.

Featuring compact size, this thruster can be conveniently assembled with various drum brake frames. It delivers steady thrust output, runs smoothly with low noise and performs well under frequent cyclic operation. Adopting reliable sealing structure, it effectively prevents oil leakage and adapts to complex factory and outdoor working environments. With premium internal components, it ensures long‑term stable operation and reduces failure probability.

Ed23/5 Series Electro‑hydraulic Thruster is a core driving actuator specially designed for industrial drum brakes. When energized, the built‑in motor drives the internal hydraulic assembly to generate linear thrust, which pushes the brake linkage to open the brake and allow mechanical equipment to run normally. Once power is cut off, the internal spring drives the piston to retract rapidly, assisting the brake to complete braking action.

This thruster features compact overall layout and small installation dimension, which can be perfectly matched with multiple types of drum brake frames without complicated modification. It provides stable and consistent thrust output, operates smoothly with low noise, and shows excellent performance under frequent start‑stop cyclic working conditions. Adopting high‑reliability multi‑layer sealing structure, it effectively avoids oil leakage, dust and moisture intrusion, adapting to diverse working scenarios including indoor workshops and outdoor hoisting sites.

Key internal parts are precisely manufactured with strict quality control, realizing long service life and low failure rate. The unit is easy for on‑site mounting and commissioning. Routine inspection and oil replacement can be finished quickly, greatly lowering daily maintenance workload.

As a vital driving component for braking systems, Ed23/5 series electro‑hydraulic thruster is extensively applied to overhead cranes, gantry cranes, electric hoists and conveying machinery, cooperating with drum brakes to realize reliable deceleration and parking braking for lifting and transporting equipment.

Core Features

‑ Professional driving actuator for industrial drum‑type brakes‑ Compact structure, small installation space, easy matching with various brake frames‑ Stable thrust output, smooth running and low noise for frequent start‑stop operation‑ Premium sealing performance, anti‑leakage, dust‑proof and moisture‑proof‑ High‑precision internal components, long service life and low failure rate‑ Simple installation and convenient routine maintenance‑ Widely used for overhead cranes, gantry cranes, hoists and conveying machinery brake assemblies
