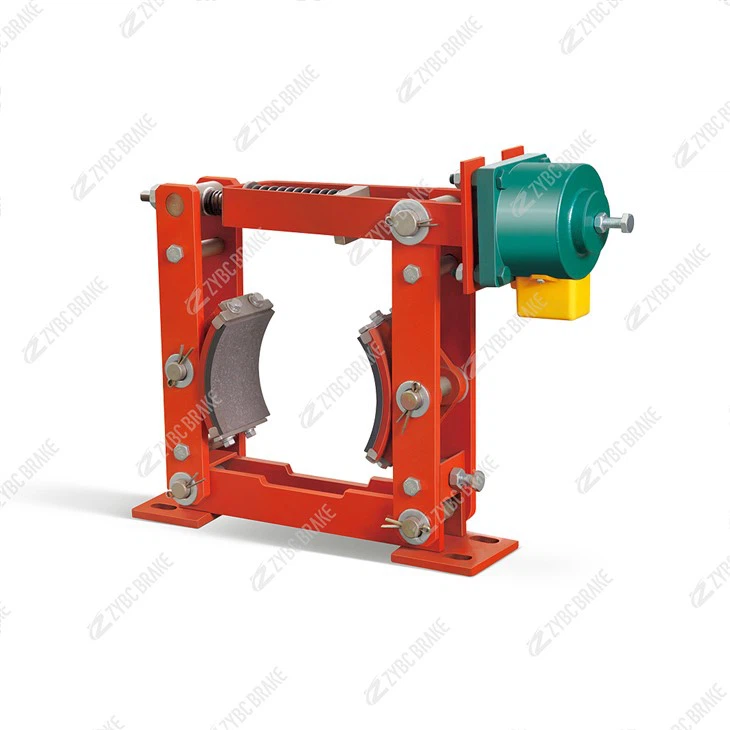

JZ SERIES ELECTROMAGNETIC DRUM BRAKES FOR PORT HANDLING
Electromagnetic brakes are used in conjunction with other equipments where smooth, rapid and dependable stopping is required. Electromagnetic brakes are electrically released & spring set. when the coil is energized the armature are attracted together to compress the torque spring and move the shoes away from the wheel, thus releasing the brake.
Description
FEATURES
◎COIL
The encapsulated thermal class 'F'coil is in a sheet steel housing for complete environmental protection.
◎MAGNET
The two identical magnetic steel armature offers a powerful short stroke magnet system.
◎SHOE LINING
Asbestos base shoe linings are selected to offer a high co-efficient of friction and low wear. The shoe linings are firmly riveted to the shoes and are easy to replace.
◎SHOE ADJUSMENT
The brake shoes are so arranged that the drum is aligned with ease and simplicity while installation.
◎TORQUE SETTLING
The braking torque can be adjusted stepless in the specifed range by adjusting the nut. The nut is first turned clockwise to positive stop and then turned anti-clockwise to get the desired braking torque.
