Crane Electro Hydraulic Thruster Brake
YWZ8 Series Crane Electro Hydraulic Thruster Brake Drum brakes are widely used for deceleration or braking of mechanical driving devices such as lifting, transportation, metallurgy, mining, ports, docks, and construction machinery. Details Place of Origin: Henan, China Brand Name:Zhongyuan Brake...
Description

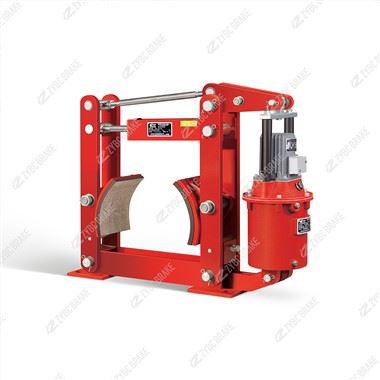

YWZ8 Series Crane Electro Hydraulic Thruster Brake
Drum brakes are widely used for deceleration or braking of mechanical driving devices such as lifting, transportation, metallurgy, mining, ports, docks, and construction machinery.
Details
Place of Origin: Henan, China
Brand Name:Zhongyuan Brake
Keyword:Crane brake
Dead weight: 32.5-545kg
Diameter of brake wheel:200～800mm
Braking torque: 135～10000Nm
Application: Winch, crane, etc.
Color:According to your requirement
Type:Drum brake
After Warranty Service:Video technical support, Online support
Model | Braking torque (Nm)) | A | b | C | D | d | E | F | G1 | G2 | H | h1 | i | k | M | n | G3 | Weight (kg) | |
Brake type | Thruster type | ||||||||||||||||||
YWZ8-200/E23 | Ed23/5 | 135-200 | 430 | 90 | 160 | 17 | 200 | 210 | 100 | 210 | 265 | 470 | 170 | 60 | 175 (190) | 140 | 8 | 75 | 35 |
YWZ8-200/E30 | Ed30/5 | 135-310 | 43 | ||||||||||||||||
YWZ8-300/E30 | Ed30/5 | 200-320 | 500 | 140 | 160 | 22 | 300 | 310 | 130 | 300 | 300 | 610 | 240 | 80 | 250 (270) | 180 | 12 | 120 | 65 |
YWZs-300/E50 | Ed50/6 | 200-550 | 540 | 190 | 80 | ||||||||||||||
YWZ8-300/E80 | Ed80/6 | 350-850 | 92 | ||||||||||||||||
YWZ8-400/E50 | Ed50/6 | 600-750 | 660 | 180 | 190 | 22 | 400 | 355 | 180 | 350 | 400 | 760 | 320 | 130 | 325 | 220 | 14 | 150 | 120 |
YWZ8-400/E80 | Ed80/6 | 600-1300 | 130 | ||||||||||||||||
YWZ8-400/E121 | Ed121/6 | 850-2000 | 650 | 240 | 150 | ||||||||||||||
YWZ8-500/E121 | Ed121/6 | 1000-2600 | 735 | 200 | 240 | 22 | 500 | 455 | 200 | 405 | 455 | 930 | 400 | 150 | 380 | 280 | 16 | 205 | 220 |
YWZ8-500/E201 | Ed201/6 | 1500-3700 | |||||||||||||||||
YWZe-600/E121 | Ed121/6 | 1700-2800 | 845 | 240 | 240 | 26 | 600 | 543 | 220 | 500 | 550 | 1110 | 475 | 170 | 475 | 340 | 20 | 240 | 360 |
YWZs-600/E201 | Ed201/6 | 1700-4300 | |||||||||||||||||
YWZ8-600/E301 | Ed301/6 | 3000-6500 | |||||||||||||||||
YWZ8-700/E201 | Ed201/6 | 3000-5000 | 948 | 280 | 240 | 34 | 700 | 615 | 280 | 580 | 650 | 1278 | 550 | 200 | 540 | 380 | 25 | 300 | 450 |
YWZ8-700/E301 | Ed301/6 | 3700-8000 | |||||||||||||||||
YWZ8-800/E301/12 | Ed301/12 | 6000-10000 | 980 | 320 | 240 | 34 | 800 | 640 | 310 | 670 | 830 | 1430 | 600 | 240 | 620 | 440 | 38 | 310 | 560 |
Use environment
Ambient temperature: -20℃-50℃.
There should be no flammable, explosive and corrosive gases in the surrounding working environment, otherwise anti-corrosion products should be used.
The relative humidity of the air is not more than 90%.
The altitude of the place of use conforms to GB755-2000.
Application
If you want more detailed information, please feel free to contact Zhongyuan Brake, we can also design various non standard brakes for users.
