Hydraulic Drum Brake For Crane

Name: Hydraulic Drum Brake For Crane Manufacturers and Supplier - China Factory - Zhongyuan Brake
Brand: ZHONGYUAN BRAKE
SKU: 163218804

YW Series Hydraulic Drum Brake For Crane Brand: Zhongyuan Brake Brake classification: YW series electric hydraulic drum brake Braking torque: 80-12500 Nm Match thruster: ED thruster Weight: 34-600 Kg Brake wheel diameter: 160-800 mm Ambient temperature: -20℃~H0℃ Altitude conforms to: GB755-2008...

Send Inquiry

Description

YW Series Hydraulic Drum Brake For Crane

Brand: Zhongyuan Brake

Brake classification: YW series electric hydraulic drum brake

Braking torque: 80-12500 Nm

Match thruster: ED thruster

Weight: 34-600 Kg

Brake wheel diameter: 160-800 mm

Ambient temperature: -20℃~H0℃

Altitude conforms to: GB755-2008

Relative air humidity: ≤90%

Uses: Lifting, transportation, metallurgy, mines, ports, construction

YWZ9-12

Model meaning of YW drum brake

Hydraulic Drum Brake For Crane

Specifications/Technical parameters

Technical data and dimensions of YW series hydraulic drum brake for crane

Brake type	Thruster type	Braking torque (Nm)	Dimensions (mm)																Weight (kg)
Brake type	Thruster type	Braking torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	L	Weight (kg)
YW- 160/E23	Ed 23/5	80-160	430	65	160	160	14	145	85	145	195	440	132	55	130	105	8	145	32.5
YW- 200/E23	Ed 23/5	112-200	470	70	160	200	14	175	90	165	255	500	160	55	145	118	10	150	35
YW- 200/E30	Ed 30/5	140-315	470	70	160	200	14	175	90	165	255	500	160	55	145	140	10	150	38
YW- 250/E23	Ed 23/5	140-250	570	90	160	250	18	205	110	200	290	585	190	65	180	149	12	180	42
YW- 250/E30	Ed 30/5	180-315	570	90	160	250	18	205	110	200	290	585	190	65	180	149	12	180	45
YW- 250/E50	Ed 50/6	315-500	570	90	190	250	18	205	110	200	290	570	190	65	180	149	12	180	50
YW- 315/E30	Ed 30/5	250-400	590	110	160	315	18	255	115	245	330	585	230	80	220	174	17	170	70
YW- 315/E50	Ed 50/6	400-630	630	110	190	315	18	255	115	245	330	585	225	80	220	180	17	170	75
YW- 315/E80	Ed 80/6	630-1000	630	110	190	315	18	255	115	245	330	585	225	80	220	180	17	170	80
YW- 400/E80	Ed 80/6	630-1250	710	140	190	400	22	310	160	310	420	775	280	100	270	220	14	170	110
YW- 400/E121	Ed 121/6	1000-2000	700	140	240	400	22	310	160	310	420	775	280	100	270	220	14	170	125
YW- 500/E80	Ed 80/6	800-1600	810	180	190	500	22	390	180	365	535	845	340	130	325	270	21	180	175
YW- 500/E121	Ed 121/6	1120-2500	800	180	240	500	22	390	180	365	535	845	340	130	325	270	21	180	204
YW- 500/E201	Ed 201/6	2000-4000	800	180	240	500	22	390	180	365	535	845	340	130	325	270	21	180	204
YWZ9- 630/E121	Ed 121/6(12)	1800-3150	925	250	240	630	26	470	220	450	600	1035	420	170	400	330	20	185	310
YWZ9- 630/E201	Ed 201/6(12)	2500-5000	925	225	240	630	26	470	220	450	600	1035	420	170	400	330	20	185	310
YWZ9- 630/E301	Ed 301/6(12)	4000-7100	925	225	240	630	26	470	220	450	600	1035	420	170	400	330	20	185	315
YWZ9- 710/E201	Ed 201/6(12)	2500-5600	980	255	240	710	27	520	240	500	650	1140	470	190	450	372	25	220	420
YWZ9- 710/E301	Ed 301/6(12)	4000-8000	980	255	240	710	27	520	240	500	650	1140	470	190	450	372	25	220	425
YWZ9- 800/E301	Ed 301/6(12)	10500-12500	1227	280	240	800	27	580	280	570	830	1360	530	210	520	410	30	240	600

Features:

1. Compact structure

2. Respond quickly

3. Long life

Quality Control:

We make sure that all hydraulic drum brakes are 100% tested. We also provide a one-year factory warranty. All production processes will be strictly implemented in accordance with ISO standards.

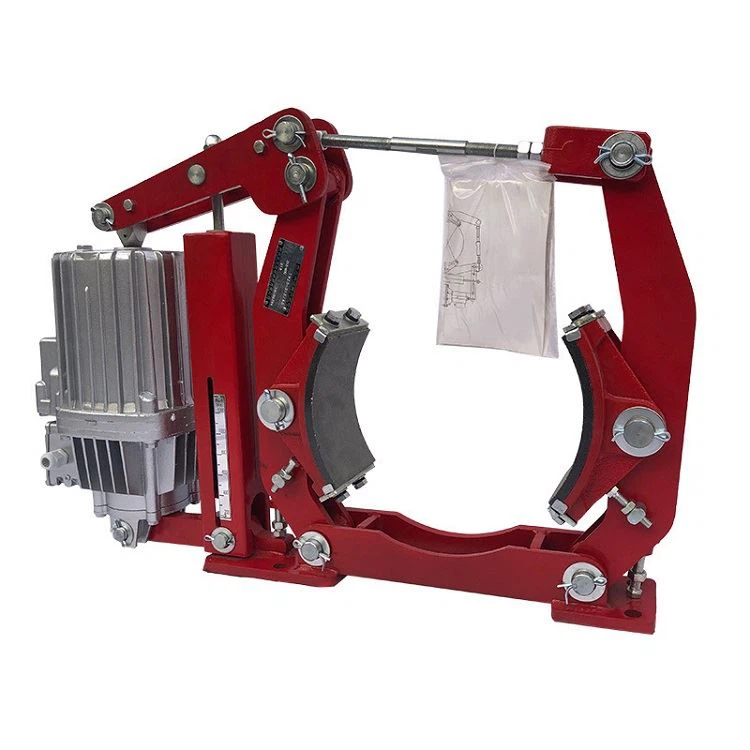

Hydraulic Drum Brake Factory

Hydraulic Drum Brake For Sale

Special requirements

According to requirements, the electro-hydraulic brake system can be designed with more technical options, such as automatic wear adjustment, manual release device, etc. Please tell us your needs.

Applications for electro-hydraulic brakes are crane systems, winches and conveyor belts, steel plants and material handling equipment.

About us:

Henan Zhongyuan Brake Co.,Ltd focuses on the research, development, production and sales of brakes and related products. Brake products are mainly used in lifting, metallurgy, mining, ports, construction, electric power and other industries.

19211208

Please feel free to send us your detailed requirements, you would be satisfied with our service.

Hot Tags: hydraulic drum brake for crane, China, manufacturers, supplier, factory, customized, Port handling drum brake, inserted type crane drum brake, Metallurgical equipment drum brake, ED thrusters drum brake, Electro Hydraulic Thruster Operated Drum Brakes, thruster released drum brakes
