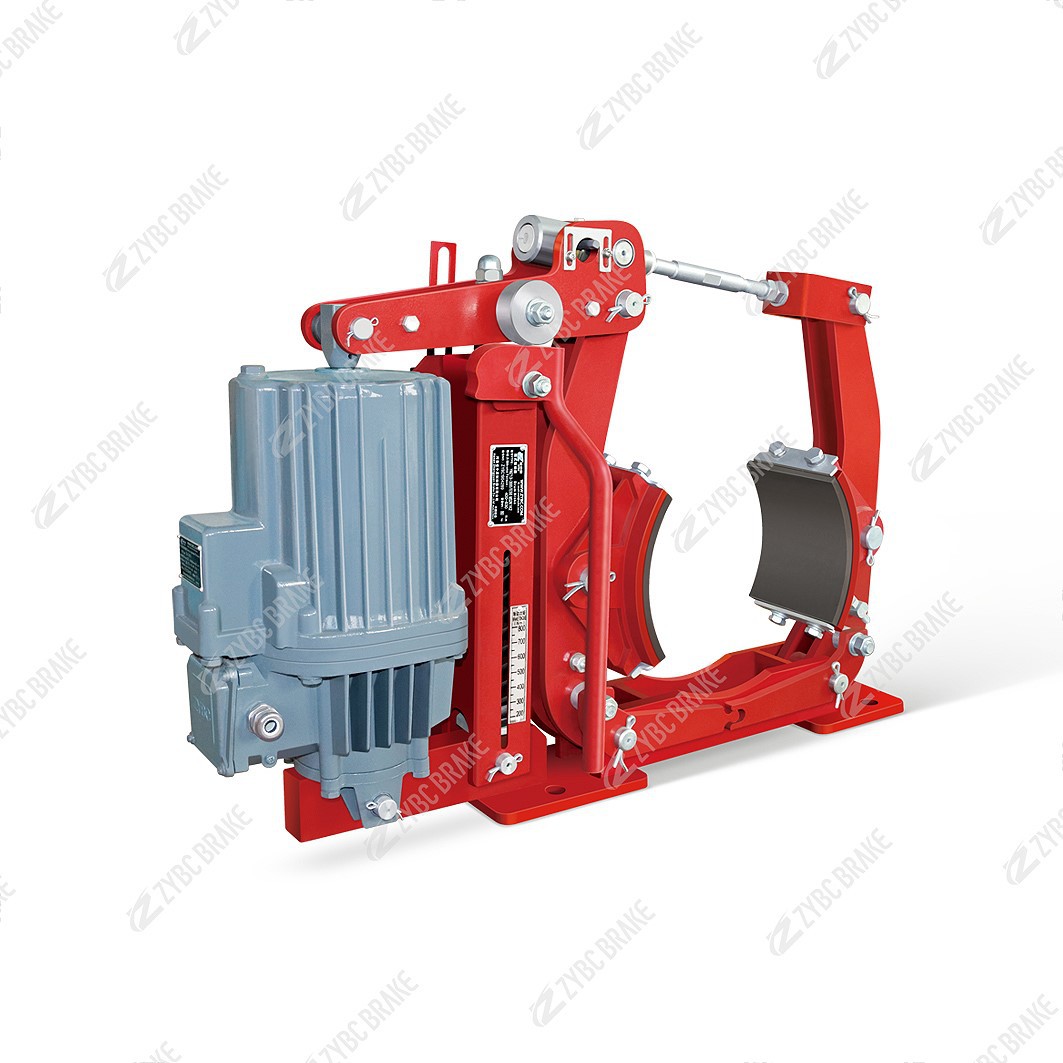

YW630-1250 Electro-hydraulic Drum Brakes



💡 Key Features & Characteristics

Heavy-Duty Performance:

Massive Braking Capacity: With a 630 mm brake wheel and an exceptionally powerful 12500 N thruster, this brake delivers extremely high braking torque. It is specifically engineered for heavy-load, high-inertia machinery.

High Action Frequency: Capable of frequent braking operations, ensuring reliable performance in demanding, continuous-cycle applications.

Advanced Structural Design:

Self-Lubricating Bearings: The main swing hinge points are equipped with self-lubricating bearings. This ensures high transmission efficiency, a long service life, and eliminates the need for regular greasing during use.

Equal Clearance Mechanism: Features an interlocking equal clearance device that automatically keeps the clearance between the brake shoes and the wheel perfectly even on both sides. This prevents one side from dragging or rubbing against the brake wheel.

Easy Maintenance: The brake pads (linings) use a secure, quick-release inserted or clipped structure. They are typically made of non-asbestos materials, making replacement fast, convenient, and environmentally friendly.

Intuitive Adjustment: The main brake spring is housed inside a spring tube, and a braking torque scale is usually provided on one side, allowing for convenient and precise adjustment of the braking force.

Robust Environmental Adaptability:

Designed to operate reliably in ambient temperatures ranging from -20°C to +50°C and in environments with up to 90% relative humidity.

Optional Safety Devices:

Can be equipped with optional limit switches for "brake open" status and "pad wear limit", providing interlock protection and fault signals to enhance operational safety.

🏭 Typical Applications

The YW630-1250 is essential for heavy machinery in demanding industrial environments:

Port & Harbor: Large ship-to-shore cranes, RMGs, and bulk material handling equipment.

Metallurgy & Steel Mills: Heavy overhead cranes, rolling mills, and other equipment requiring frequent and powerful braking.

Mining: Heavy-duty hoists, winches, and large inclined belt conveyors.

General Industry: Large-scale construction machinery, heavy valves, and rotating mechanical drives.

📋 General Technical Specifications

表格

Parameter	Description
Type	Electro-Hydraulic Drum (Block) Brake
Model Series	YW Series
Model Variant	YW630-1250
Brake Wheel Diameter	630 mm
Thruster Thrust	12500 N (approx. 1250 kgf)
Drive Unit	Electro-Hydraulic Thruster (e.g., Ed or YTD series)
Power Supply	AC 380V / 50Hz (3-Phase, standard for thrusters)
Ambient Temperature	-20°C to +50°C
Key Features	Self-lubricating bearings, equal clearance, non-asbestos pads

Note: The YW630-1250 is a critical safety component. Always ensure that the equipment's foundation and shaft can withstand the reaction forces generated during emergency braking. Due to its massive size and extreme braking power, regular inspection of the brake pads and hydraulic thruster is essential to maintain peak safety and performance.
