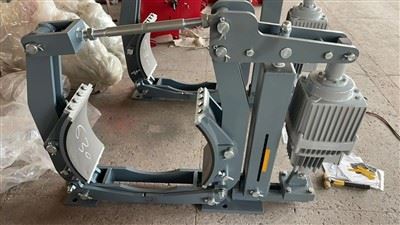

YWZ9-400/E80 Electro Hydraulic Drum Brake For Overhead Crane

Simple Introduction:

YWZ9-400/E80 electro hydraulic drum brake is made according to GB6333-86 brake standard, and technical data meet requirement of JB/T6406-2006. YWZ9 series type thurster brake is mianly used for overhead crane.

Main Data for YWZ9-400/E80 electro hydraulic drum brake:

brake type: YWZ9-400/E80

drum diameter: 400mm

thruster type: Ed80/60, 800N, 60mm stroke

Brake torque: 630-1250Nm

Voltage/power supply: AC 380V, 50HZ, 3 phase

Working condition:-20-50 ℃

Brake color: general red color for brake frame, and gray color for electro hydraulic thruster, but we can make color as required

working duty: intermittent(S3-60%,operation frequency: 1200/hour max) and continuous(S1)

Some additional device can be provided according to end user's requirement: manual release leaver, lining wear conpensator, limit switch etc.

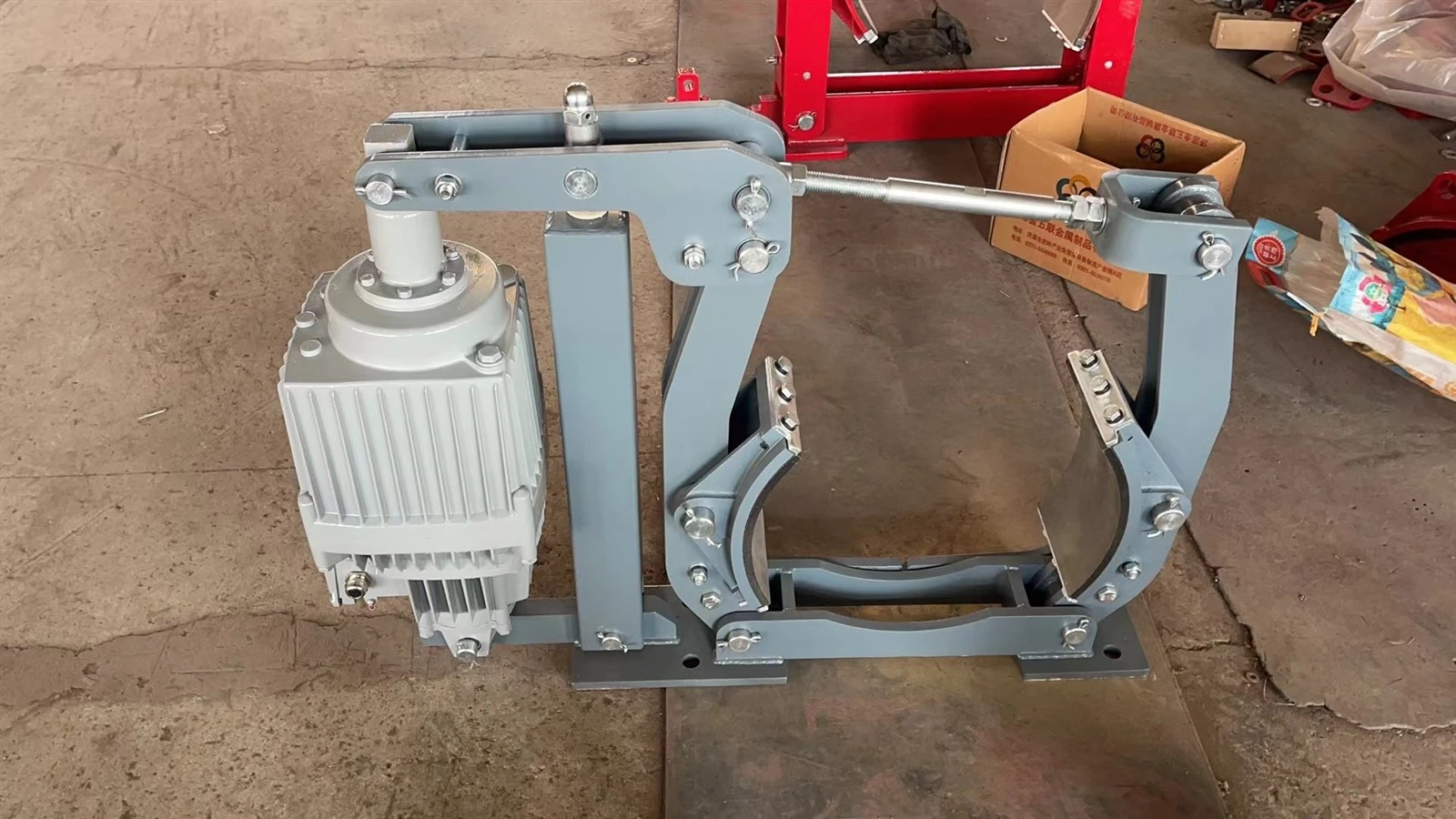

Company Production Photos:

How  to adjust our YWZ9 series electro hydraulic drum brakes? check the following vedio:
