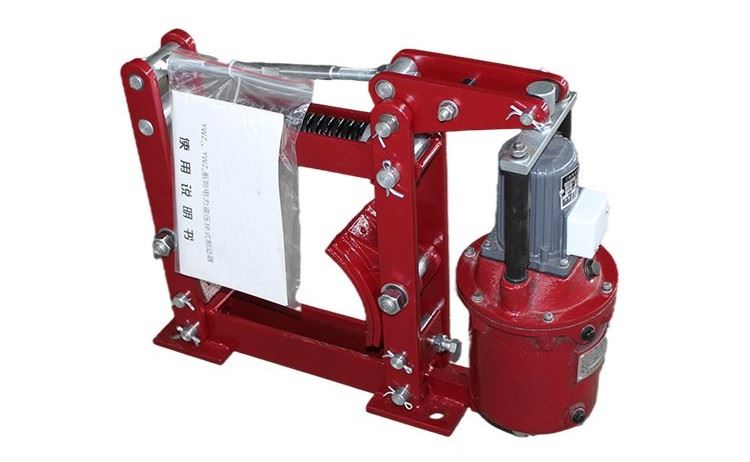

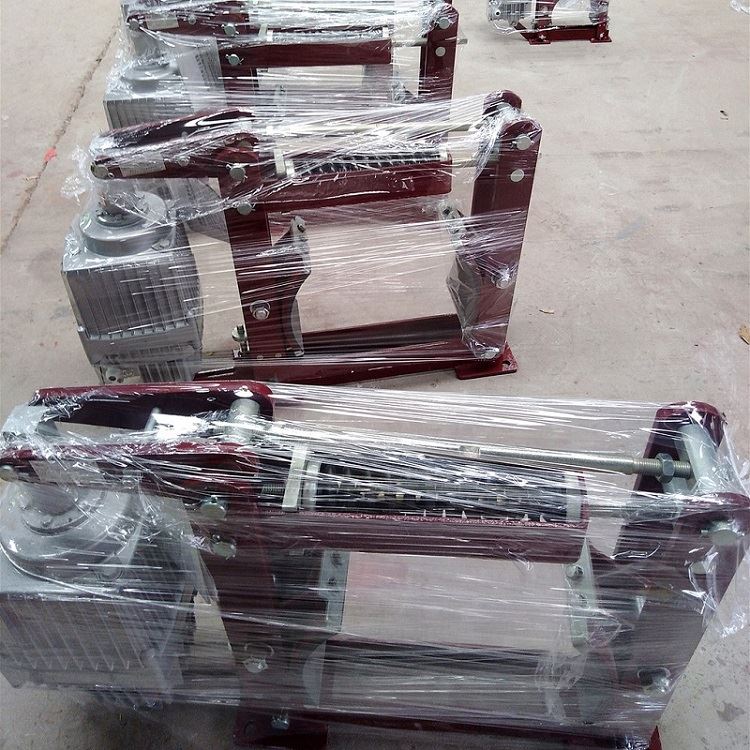

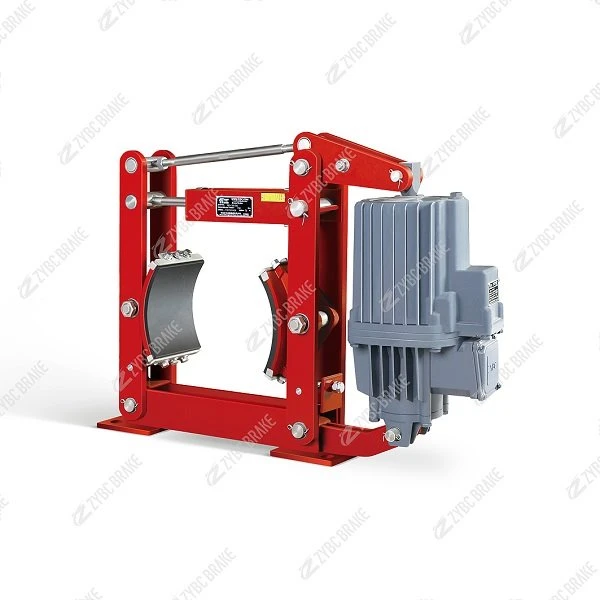

YWZ4 Electro Hydraulic Industrial Drum Brake
YWZ4 electro hydraulic industrial drum brake is mainly used for mechanical braking of driving devices of lifting, transportation, metallurgy, mining, ports, and construction machinery. It has the advantages of stable braking, safe and reliable, convenient maintenance, low power consumption, long...
Description
YWZ4 electro hydraulic industrial drum brake is mainly used for mechanical braking of driving devices of lifting, transportation, metallurgy, mining, ports, and construction machinery. It has the advantages of stable braking, safe and reliable, convenient maintenance, low power consumption, long life and no noise.
Operating conditions of electro hydraulic industrial drum brake
Ambient temperature: -20℃~+50%
Use DB-25 hydraulic oil, when below -20℃, use YH-10 aviation hydraulic oil
The relative humidity of the air is not more than 90%
Generally used for three-phase AC power supply, 50HZ, 380V
The sea height meets the GB755-87 standard;
Dimensions of YWZ4 electro hydraulic industrial drum brake
Brake type | Thruster type | Braking torque (Nm) | Dimensions (mm) | Weight (kg) | |||||||||||||||
A | b | C | D | d | E | F | G1 | G2 | H | h1 | i | K | M | n | G3 | ||||
YWZ4- 100/E23 | Ed 23/5 | 40 | 320 | 70 | 160 | 100 | 13 | 130 | 75 | 125 | 125 | 377 | 100 | 40 | 110 | 144 | 6 | 50 | 21 |
YWZ4- 150/E23 | Ed 23/5 | 100 | 347 | 90 | 160 | 150 | 17 | 175 | 100 | 170 | 170 | 437 | 140 | 60 | 150 | 144 | 8 | 70 | 25 |
YWZ4- 150/E30 | Ed 30/5 | 120 | 347 | 90 | 160 | 150 | 17 | 175 | 100 | 170 | 170 | 461 | 140 | 60 | 150 | 144 | 8 | 70 | 29 |
YWZ4- 200/E23 | Ed 23/5 | 200 | 430 | 90 | 160 | 200 | 17 | 210 | 100 | 195 | 195 | 468 | 170 | 60 | 175 | 156 | 8 | 95 | 31 |
YWZ4- 200/E30 | Ed 30/5 | 230 | 430 | 90 | 160 | 200 | 17 | 210 | 100 | 195 | 195 | 468 | 170 | 60 | 175 | 156 | 8 | 95 | 34 |
YWZ4- 300/E30 | Ed 30/5 | 320 | 529 | 140 | 160 | 300 | 22 | 290 | 130 | 275 | 275 | 595 | 240 | 80 | 250 | 213 | 10 | 125 | 65 |
YWZ4- 300/E50 | Ed 50/6 | 630 | 529 | 140 | 190 | 300 | 22 | 290 | 130 | 275 | 275 | 595 | 240 | 80 | 250 | 213 | 10 | 125 | 78 |
YWZ4- 300/E80 | Ed 80/6 | 750 | 529 | 140 | 190 | 300 | 22 | 290 | 130 | 275 | 275 | 595 | 240 | 80 | 250 | 213 | 10 | 125 | 79 |
YWZ4- 400/E50 | Ed 50/6 | 1000 | 664 | 180 | 220 | 400 | 22 | 370 | 180 | 350 | 350 | 764 | 320 | 130 | 325 | 275 | 12 | 190 | 128 |
YWZ4- 400/E80 | Ed 80/6 | 1600 | 664 | 180 | 220 | 400 | 22 | 370 | 180 | 350 | 350 | 764 | 320 | 130 | 325 | 275 | 12 | 190 | 130 |
YWZ4- 400/E121 | Ed 121/6 | 2000 | 664 | 180 | 240 | 400 | 22 | 370 | 180 | 350 | 350 | 764 | 320 | 130 | 325 | 275 | 12 | 190 | 150 |
YWZ4- 500/E121 | Ed 121/6 | 2500 | 713 | 200 | 250 | 500 | 22 | 440 | 200 | 405 | 405 | 919 | 400 | 150 | 380 | 310 | 16 | 225 | 210 |
YWZ4- 500/E201 | Ed 201/6 | 3600 | 713 | 200 | 250 | 500 | 22 | 440 | 200 | 405 | 405 | 919 | 400 | 150 | 380 | 310 | 16 | 225 | 210 |
YWZ4- 600/E121 | Ed 121/6 | 3200 | 848 | 240 | 315 | 600 | 26 | 555 | 220 | 500 | 500 | 1095 | 475 | 170 | 475 | 400 | 18 | 250 | 390 |
YWZ4- 600/E201 | Ed 201/6 | 5000 | 848 | 240 | 315 | 600 | 26 | 555 | 220 | 500 | 500 | 1095 | 475 | 170 | 475 | 400 | 18 | 250 | 390 |
YWZ4- 700/E201 | Ed 201/6 | 8000 | 978 | 280 | 390 | 700 | 34 | 600 | 270 | 575 | 575 | 1251 | 550 | 220 | 540 | 495 | 25 | 315 | 465 |
YWZ4- 700/E301 | Ed 301/12 | 8650 | 978 | 280 | 390 | 700 | 34 | 600 | 270 | 575 | 575 | 1251 | 550 | 220 | 540 | 495 | 25 | 315 | 466 |
YWZ4- 800/E301 | Ed 301/12 | 12500 | 1115 | 320 | 436 | 800 | 34 | 680 | 320 | 677 | 677 | 1417 | 600 | 240 | 620 | 556 | 25 | 367 | 885 |
