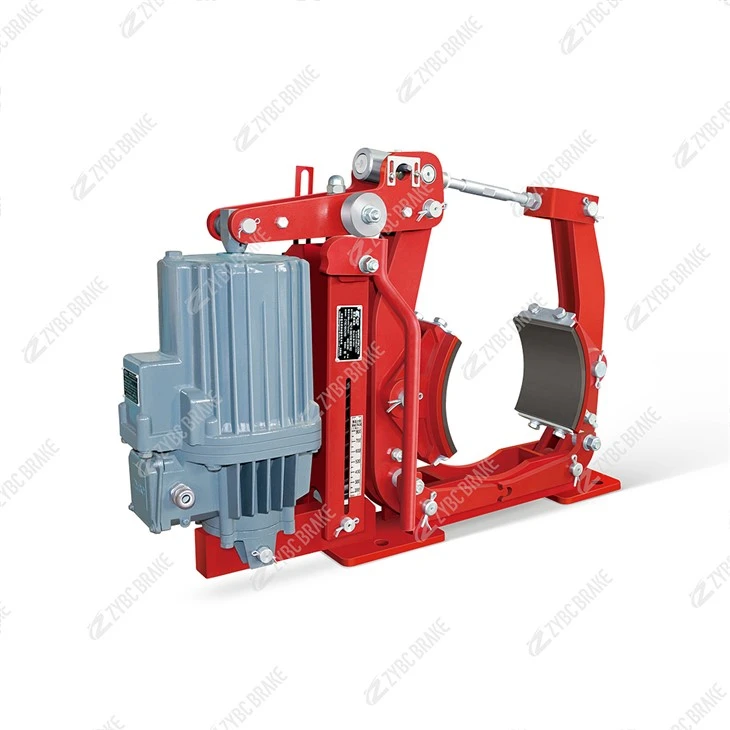

YWZ9-300/E30A Spring-Applied Hydraulic-Release Drum Brake
YWZ9-300/E30A is a medium-duty electro-hydraulic drum brake for crane travel, conveyor head pulleys, portal slewing, stacker-reclaimer travel and winch front stages. The suffix A means it is fitted with the M-type automatic lining wear compensator — as the shoe lining wears, the clearance is taken up automatically, so you stop sending people up to adjust the brake every few weeks.
Description
Product Overview
YWZ9-300/E30A is a spring-applied, electro-hydraulically released drum brake. Ed30/5 builds hydraulic pressure, extends the push rod and opens the shoes against the spring. Power off → spring closes the shoes onto the 300 mm drum.
It is a service brake for deceleration and stopping in non-hazardous areas. The A version adds automatic wear compensation on top of the standard YWZ9 service brake. It is not a holding-only safety brake, and not for explosive gas or dust zones - for hazardous areas use the explosion-protected version.
Ambient: −20 °C to +50 °C, RH ≤ 90%, no flammable/explosive/corrosive gas, altitude per GB 755. Humid or corrosive site → order anti-corrosion type (F).
What "A" Actually Means
Non-A YWZ9-300/E30: manual clearance setting, operator re-adjusts as lining wears.
A version YWZ9-300/E30A: built-in M compensator takes up lining wear automatically and holds the set retreat. You still inspect lining and wear limit, but you do not chase clearance every shift.
Add-on codes you can combine:
M automatic lining wear compensation (already in A version)
K1 open/release limit switch
K2 closed/brake-on limit switch
K3 lining wear limit switch
S1 left hand manual release lever
S2 right hand manual release lever
F anti-corrosion type
Technical Data
|
Item |
YWZ9-300/E30A |
|---|---|
|
Braking torque |
250–400 N·m (spring adjustable) |
|
Brake wheel diameter D |
300 mm |
|
Retreat / clearance E |
1.0 mm |
|
Matched thruster |
Ed30/5 |
|
Thruster thrust / stroke |
300 N / 50 mm |
|
A |
630 mm |
|
b |
140 mm |
|
C |
160 mm |
|
d |
22 mm |
|
F |
255 mm |
|
G1 |
130 mm |
|
G2 |
295 mm |
|
H |
605 mm |
|
h1 |
240 mm |
|
i |
80 mm |
|
K |
250 mm |
|
M |
180 mm |
|
n |
12 |
|
L |
170 mm |
|
Weight |
65 kg |
|
Duty |
S1 continuous + S3-60%, 1200 cycles/h |
|
Voltage |
AC 3-phase, 380 V 50 Hz std; 440–460 V 60 Hz optional |
|
Ambient |
−20~+50 °C, RH ≤ 90% |
|
Environment |
No flammable, explosive or corrosive gas |
|
Standards |
JB/ZQ4388-86 dimensions, JB/T 6406-2006 technical, Ed thruster DIN 15430 |
