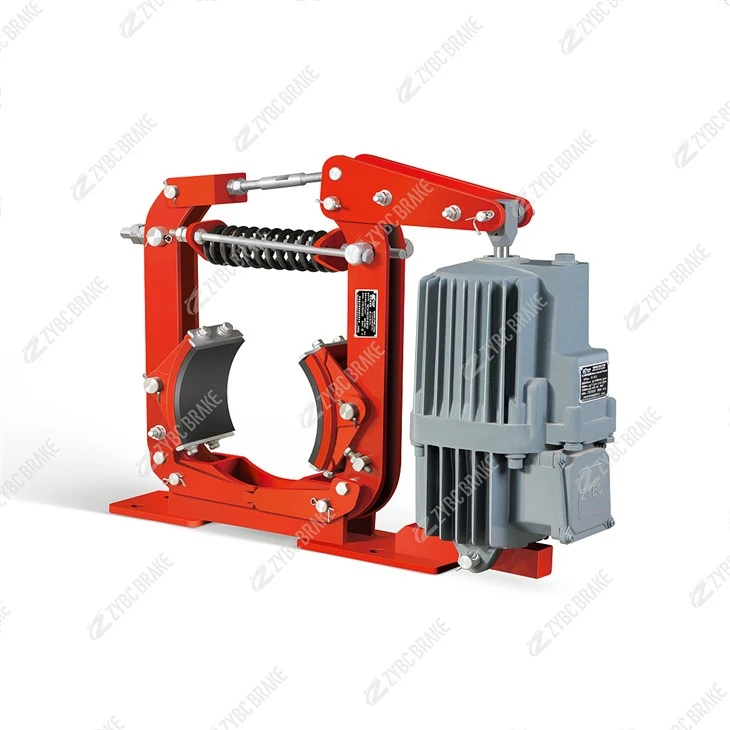

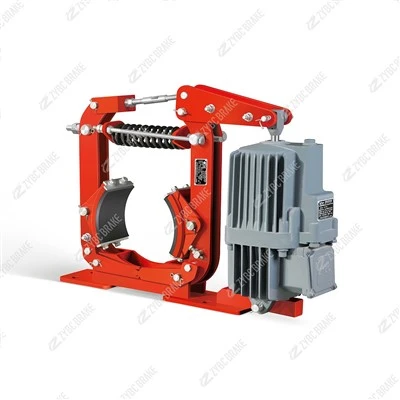

YWZ8-300/E30 Spring-Applied Hydraulic-Release Drum Brake
YWZ8-300/E30 is a medium-duty electro-hydraulic drum brake for crane travel, conveyor head pulleys, portal slewing, stacker-reclaimer travel and winch front stages. It runs on a matched Ed30/5 thruster, spring-applied braking and power-on release. Cut the power and the spring locks the shoe — no air, no external hydraulics, no doubt. It carries the YWZ8 family’s interlocking equal-clearance linkage and shoe auto-aligning device, so both linings wear evenly and you stop chasing one-side drag. The brake spring sits inside the square tube with a torque scale on the side — set and read preload on site. Lining is whole card-mounted; swap the pad without dismantling the shoe.
Description
Key Selling Points
200–320 N·m adjustable braking torque, Ø300 mm wheel, 65 kg.
Matched Ed30/5 thruster: 300 N thrust, 50 mm stroke, F-class, S1 continuous + S3-60% up to 1200 cycles/h.
Interlocking equal-clearance linkage - both shoes back off evenly, no single-side sticking, no uneven lining wear.
Shoe auto-aligning - no frequent clearance re-adjustment.
Torque scale on square-tube spring - read preload directly, no calc on site.
Card-mounted non-asbestos lining - change pad in minutes, no shoe teardown. Half-metal / soft / hard lining selectable.
NC fail-safe: power off = brake on. Standard safety for lifting and travel drives.
Flexible voltage: 380–400 V 50 Hz std, 440–460 V 60 Hz optional.
Standard-compliant: dimensions to JB/ZQ4388-86 / GB6333-86, technical to JB/T 6406-2006, Ed thruster to DIN 15430.
Product Overview
YWZ8-300/E30 is a spring-applied, electro-hydraulically released drum brake. The Ed30/5 thruster builds hydraulic pressure, extends the push rod and opens the shoes against the spring. Power off → spring closes the shoes onto the 300 mm drum.
It is a service brake for deceleration and stopping in non-hazardous areas. It is not a holding-only safety brake, and not for explosive gas or dust zones - for hazardous areas use the explosion-protected version.
The YWZ8 series shares the Ed thruster interface with YWZ4B and YWZ13; YWZ8 and YWZ13 have the equal-clearance device. YWZB uses the older YT thruster and is not directly thruster-interchangeable without checking the envelope.
Technical Data
|
Item |
YWZ8-300/E30 |
|---|---|
|
Braking torque |
200–320 N·m (spring adjustable) |
|
Brake wheel diameter D |
300 mm |
|
Retreat / clearance E |
1.0 mm |
|
Matched thruster |
Ed30/5 |
|
Thruster thrust |
300 N |
|
Thruster stroke |
50 mm |
|
A |
500 mm |
|
b |
140 mm |
|
C |
160 mm |
|
d |
22 mm |
|
F |
310 mm |
|
G1 |
130 mm |
|
G2 |
300 mm |
|
H |
610 mm |
|
h1 |
240 mm |
|
i |
80 mm |
|
K |
250 mm (270 mm bracket option, specify at order) |
|
M |
180 mm |
|
n |
12 |
|
G3 |
120 mm |
|
Weight |
65 kg |
|
Operating duty |
S1 continuous + S3-60%, 1200 cycles/h |
|
Voltage |
AC 3-phase, 380–400 V 50 Hz std; 440–460 V 60 Hz optional |
|
Ambient temp. |
−20 °C to +50 °C |
|
Relative humidity |
≤ 90% |
|
Environment |
No flammable, explosive or corrosive gas; use anti-corrosion type otherwise |
|
Standards |
JB/ZQ4388-86 / GB6333-86 dimensions, JB/T 6406-2006 technical, Ed thruster DIN 15430 |
Mounting & Retrofit Note
YWZ8-300 shares the 300 mm wheel envelope across E30 / E50 / E80:
YWZ8-300/E30 - Ed30/5 - 200–320 N·m - 65 kg
YWZ8-300/E50 - Ed50/6 - 200–550 N·m - 80 kg
YWZ8-300/E80 - Ed80/6 - 350–850 N·m - 92 kg
All three keep A500 / C160 / D300 / H610 / h1 240. Moving up torque only changes thruster and spring preload, not the foundation bolts - unless you need the bracket K=270 mm, which must be specified at order.
Before ordering, confirm: wheel diameter = 300 mm, hub width against C = 160 mm, and A / H / K envelope. If replacing YWZB (YT thruster) or very old drums, check thruster interface and shoe arc, don't assume drop-in.
