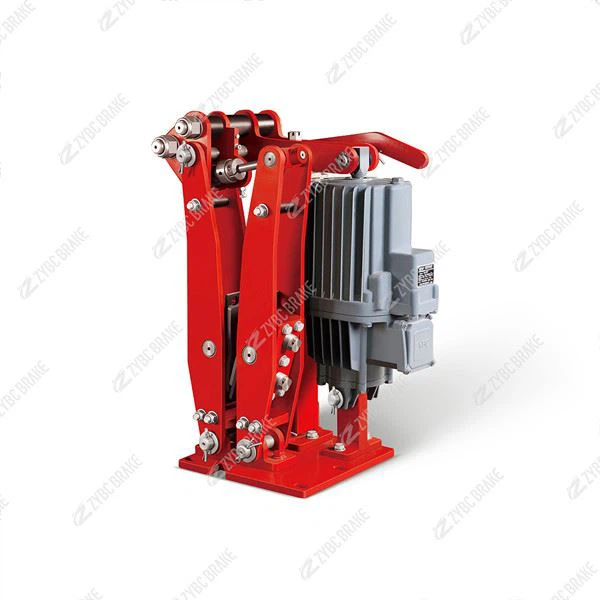

YP1 SERIES ELECTRO-HYDRAULIC DISC BRAKES

APPLICATION
●Electro-hydraulic disc brakes are advanced products with high performance and multiple functions.
They are maintenance -friendly due to advanced functions applied on them such as automatic shoe clearance balancing and wear self- compensation device. Varlous limit switches can provide interlocking protection signal to main machinery PLC. They fit very well for decelerating and stop/braking large-scale modern machines such as loading and unloading machinery, lfting and transporting machinery, metallurgy equipment and mining equipment.

MAIN FEATURE
●Interlocking shoes clearance equalization device and shoe auto-aligning device, constantly equalize the clearance of brake shoes on both sides and no need to adjust, thus completely avoid one side of brake lining sticking to brake disc.
●Self-lubricating bearings are equipped at main hinge points, which bring high efficiency of transmission,flexible action life and unnecessary to lubricate in the course of operation.
The closing time is short (only 0.25-0.4s).
●Stepless lining wear-self-compensation devices can make shoe clearance and brake torque be kept constant in the process of operation, thus be free from the trouble of frequent adjustment.
●Torque adjustable built-in springs is set up with torque scale.
●Brake lining are plug-in style, which are easy to replace. Brake linings of various materials such as powder metallurgy and semi metals (non-asbestos), which are suitable for different working conditions.
●With hand release device, which can open the brake when under the powered -off condition.

OPTIONS AND ACCESSORIES (SELECTION)
●Hand release device can automatically send signals to main control to carry out the interlocking protection when
brake applies the hand release.
●Release limit switches can indicate signals such as whether brake is properly released or provide interlocking
protection.
●Close limit switch can make the closing signals of brakes are correctly displayed or the interlocking protection be properly carried out.
●Lining wear limit switches can automatically indicate alarm signal or provide interlocking protection when wear of brake lining reached the limit.

OPERATING CONDITION
●Ambient temperature: -25℃- + 50℃
●Relative humidity:≤90%
●Voltages: Ac 3 phase 380V, 50Hz
●Operating duty; Intermittent (S3-60%. 1200 times per hour) and continuous(S1)
●Special requirements can be discussed before production.

ORDER MARK

ORDER EXAMPLE

●YP1-800-450x 20-IA-HL.RL   YP21-500-560 x 30-IIB-HL. WL. RL

OUTLINE AND INSTALLATION DIMENSION

DIMENSIONS AND TECHNICAL DATA OF YP1 SERIES DISC BRAKES
