Storm Rail Safety Brake Iron Wedge

Product Description

1) Application fields:
YFX series electric hydraulic windproof iron wedge brake is mainly used as windproof brake for gantry cranes, gantry cranes, loading bridges and other rail cranes working in the open air such as ports, docks and railways under working conditions. At the same time, it can also work together with the anchoring device, windproof cable, etc., and be used for the safe windproof braking measures of the crane under non-working conditions.

2) Product selling points:
Compact structure and beautiful shape.
Matched with Ed thruster, with excellent action performance, good sealing performance, and enclosure protection grade of IP65.
The friction block is made of advanced high wear-resistant steel with reliable performance.
The main swing hinge points are installed with self-lubricating bearings, with high transmission efficiency, fast, sensitive and reliable action, and long service life.
Manual release, easy to maintain.
It has a travel switch to display the working status.
3) Service conditions:
Ambient temperature: - 20 ºC - 50 ºC;
Generally used for three palm AC power supply: 380V, 50Hz;
The altitude of the use site complies with the relevant provisions of G8755-2000;
Outdoor rain and snow erosion or corrosive gases and media shall be anti-corrosion products.

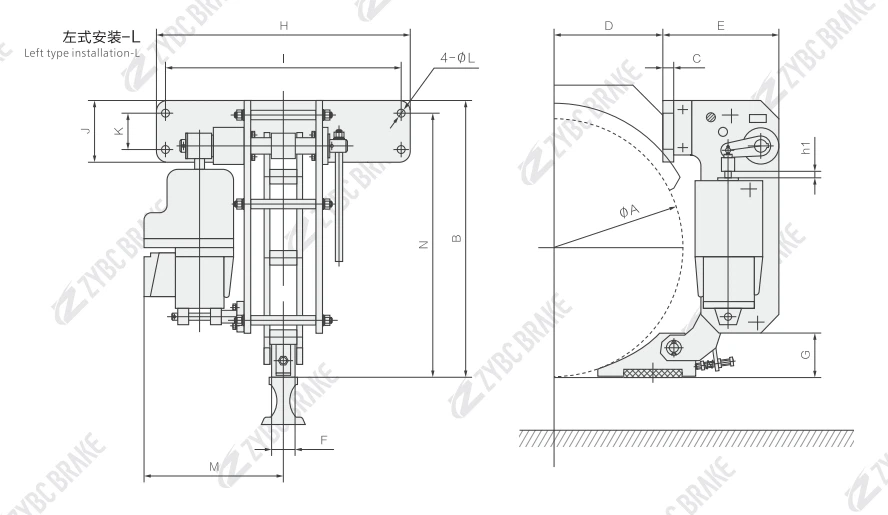

4) Mechanical drawing:
5) Techncial data:
unit: (mm)

Note: The right to change the specific model, structure and overall dimension is reserved;
No further notice will be given if the product is improved.

6) Additional function:
