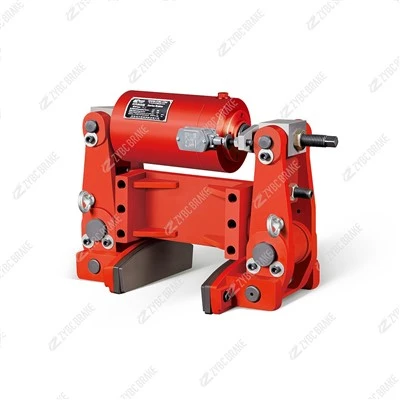

YLZ Hydraulic Wheel Brake – Direct Wheel Clamp, Dual Working & Parking Wind Protection

YLZ series hydraulic wheel brakes

YLZ series hydraulic wheel brake is professional wheel-side windproof safety equipment independently clamping crane wheel tread, specially designed for all kinds of outdoor rail-mounted heavy machinery. It adopts disc spring normally closed structure: hydraulic station supplies pressure to push brake shoes open for crane normal traveling; once hydraulic power fails or equipment shuts down, high-strength disc springs instantly clamp wheel tread to form reliable static holding lock.Different from YFX rail wedge brake clamping steel rails, YLZ directly acts on crane wheels without scratching rails, realizing dual anti-wind protection both during equipment operation and long-term parking. Widely matched with port rail-mounted gantry cranes (RMG), stacker-reclaimers, ship unloaders, outdoor metallurgical transfer trolleys and mining bucket wheel excavators.

Core Competitive Advantages

Direct wheel tread clamping, rail-friendly dual wind protection (Core Highlight)

Unique side-mounted wheel clamp structure locks wheels directly instead of rails, completely eliminate rail scratch and abrasion caused by rail clamps, extend rail service life significantly. It provides two-layer windproof safety: prevent wheel rolling drift under crosswind during crane working; act as auxiliary storm lock for long-time unattended parking, can be combined with YFX iron wedge brake to form full-grade typhoon resistance safety system for ports.

Disc spring fail-safe auto-clamp design

Power-off passive safety mechanism, no manual intervention needed. When hydraulic pipeline rupture, hydraulic station shutdown or emergency stop occurs, disc spring group instantly pushes friction pads to tightly grip wheels, avoid crane sliding collision and cargo tipping under strong coastal wind, suitable for unmanned container yard all-day operation. Optional travel limit switches feed brake open/closed signals to PLC for full safety interlock chainsi.

Built-in equal retraction balance linkage

Patented synchronous retraction structure ensures consistent gap between two friction pads and wheel surface after each braking. Effectively solve unilateral pad dragging, local overheating and uneven wear problems, double friction pad service life and reduce spare parts replacement cost for port factories

Ultra-low maintenance modular structure

All swing hinge points equipped with maintenance-free self-lubricating bearings, no regular grease filling required;

Plug-in snap-on friction pads, quick replacement without disassembling the whole brake body, save over 60% maintenance time;

IP65 fully sealed housing with heavy-duty salt-fog anti-corrosion coating, adapt long-term coastal high-humidity, high-dust mine environment without rust jamming;

Graduated adjustment scale for spring preload, intuitive stepless holding torque matching different tonnage cranes.

Centralized hydraulic station unified control

Multiple YLZ wheel brakes can share one hydraulic station for synchronous release, simplify pipeline layout and reduce equipment investment cost. Complete specifications YLZ63 / YLZ100 cover light to heavy tonnage rail machinery, vertical side mounting bracket fits most passive wheel structures without large-scale crane transformation.

Diversified customized options

Custom anti-corrosion coating, rainproof & dustproof outer cover for seaport and cement plants; matched explosion-proof hydraulic components available for chemical and underground mining hazardous zones; left/right symmetric models optional for both sides of crane wheel sets, fully comply with JB/T7021 industrial brake standard.

Main Application Scenarios

Port rail-mounted container gantry cranes (RMG), stacker-reclaimers, ship unloaders, outdoor portal cranes, metallurgical heavy transfer trolleys, mining bucket wheel excavators, large construction gantry cranes and all outdoor rail running equipment requiring double anti-wind protection.

Working Condition Parameters

Driving mode: Disc spring normally closed, hydraulic station pressure release

Standard hydraulic working pressure: 4–6.3MPa

Ambient temperature: -20℃ ~ +50℃

Protection grade: IP65

Executive standard: JB/T7021, JB/T6406 industrial brake standards

Core function: Anti-slip during traveling, auxiliary storm parking brake, double windproof safety matched with rail wedge brakes
