Ed Hydraulic Thruster
Ed Series Hydraulic Thruster The electro-hydraulic thruster is a very compact drive control system that integrates a motor, a centrifugal pump, and an oil cylinder. It is widely used in the drive mechanism of various drum and disc brakes, the drive control of various industrial valves, pressure...
Description
Ed Series Hydraulic Thruster
The electro-hydraulic thruster is a very compact drive control system that integrates a motor, a centrifugal pump, and an oil cylinder. It is widely used in the drive mechanism of various drum and disc brakes, the drive control of various industrial valves, pressure pipes, directional pendulums and steering mechanisms. It can also be used as the drive control of the punching device.
Product model: Ed 23/5, Ed 30/5, Ed 40/5, Ed 50/6, Ed 70/5, Ed 80/6, Ed 100/6, Ed 121/6, Ed201/6, Ed 301/ 6. Ed 50/12, Ed 80/12, Ed 121/12, Ed 201/12, Ed 301/12, Ed 450/12, Ed 630/12, Ed121/8, Ed 201/8, Ed 301/8 , Ed 450/8
Rated thrust: 220～6300N
Rated stroke: 50～120mm
Technical parameter
Drive number | The rated thrust（N） | Rated stroke（mm） | Spring power（N） | Consumed power（W） | Rated current（A） | Rated voltage（V） | Maximum operating frequency（1/h） | The weight of the（kg） |
Ed 23/5 | 220 | 50 | 180 | 165 | 0.52 | 380 | 2000 | 10 |
Ed 30/5 | 300 | 50 | 270 | 200 | 0.46 | 380 | 2000 | 14 |
Ed 40/4 | 400 | 40 | 270 | 200 | 0.46 | 380 | 2000 | 14 |
Ed 50/6 | 500 | 60 | 460 | 210 | 0.48 | 380 | 2000 | 21 |
Ed 70/5 | 700 | 50 | 460 | 210 | 0.50 | 380 | 2000 | 21 |
Ed 80/6 | 800 | 60 | 750 | 330 | 1.42 | 380 | 2000 | 24 |
Ed 100/6 | 1000 | 60 | 750 | 330 | 1.42 | 380 | 2000 | 29 |
Ed 121/6 | 1250 | 60 | 1200 | 330 | 1.44 | 380 | 2000 | 39 |
Ed 201/6 | 2000 | 60 | 1900 | 450 | 1.45 | 380 | 2000 | 39 |
Ed 301/6 | 3000 | 60 | 2700 | 550 | 1.46 | 380 | 1500 | 40 |
Ed 50/12 | 500 | 120 | 210 | 0.48 | 380 | 1200 | 26 | |
Ed 80/12 | 800 | 120 | 330 | 1.42 | 380 | 1200 | 27 | |
Ed 121/12 | 1250 | 120 | 330 | 1.44 | 380 | 1200 | 39 | |
Ed 201/12 | 2000 | 120 | 450 | 1.45 | 380 | 1200 | 39 | |
Ed 301/12 | 3000 | 120 | 550 | 1.46 | 380 | 900 | 40 | |
Ed 450/12 | 4500 | 120 | 1100 | 2.56 | 380 | 900 | 45 | |
Ed 630/12 | 6300 | 120 | 1100 | 2.40 | 380 | 630 | ||
Ed 121/8 | 1250 | 80 | 330 | 1.44 | 380 | 1200 | 39 | |
Ed 201/8 | 2000 | 80 | 450 | 1.45 | 380 | 1200 | 39 | |
Ed 301/8 | 3000 | 80 | 550 | 1.46 | 380 | 900 | 40 | |
Ed 450/8 | 4500 | 80 | 1100 | 2.56 | 380 | 900 | 45 |

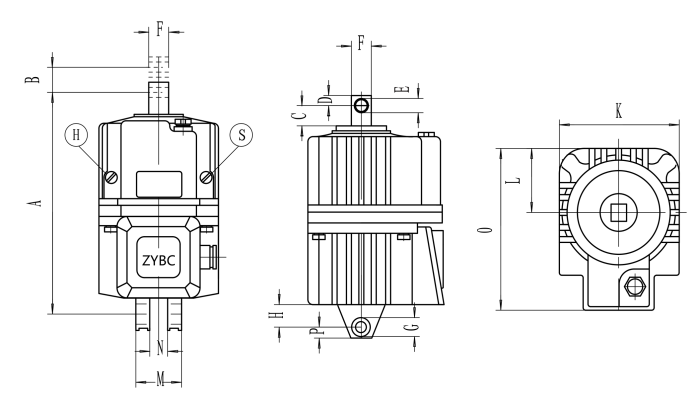

Ed23

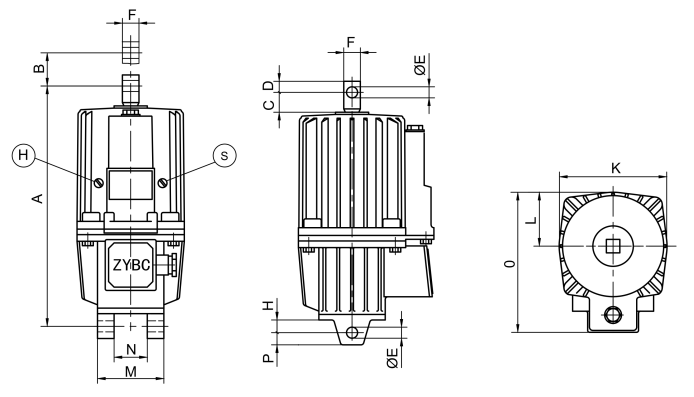

Ed30-Ed100

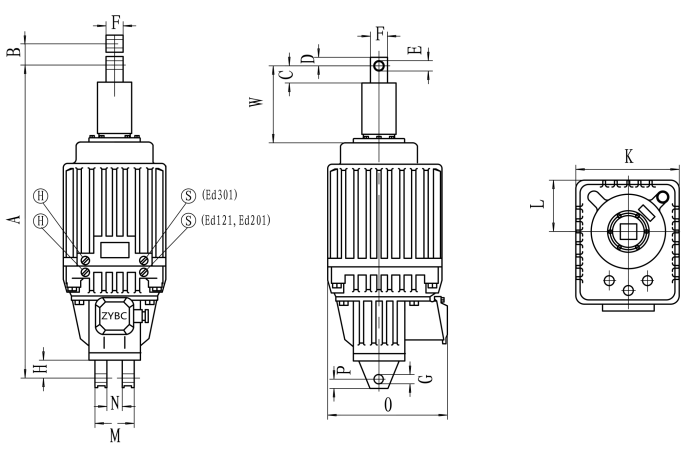

Ed121-630
Additional devices
1. The upper limit switch can indicate whether the brake is on or whether the thruster is in the correct position.
2. The lower limit switch can indicate whether the brake is normally closed and whether the propeller is back. The upper and lower limit switches can be set together.
3. In addition, install the built-in spring. The spring force can be determined by the customer, but it is within the force limit of the built-in spring.
4. Heater: Customers can request heaters where the ambient temperature is lower than -25°C.
