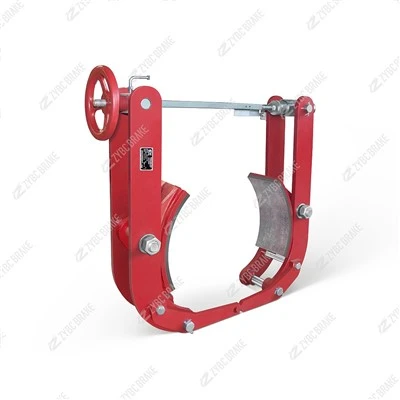

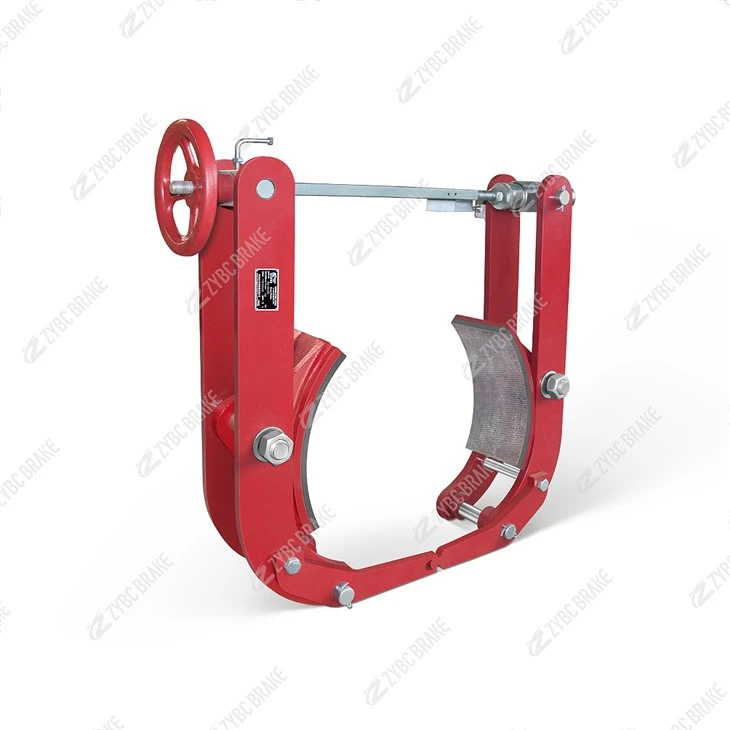

TYW-300 Series Foot Operated Hydraulic Drum Brake | Manual Foot Controlled Brake

TYW-300 Series Foot Operated Hydraulic Drum Brake | Manual Foot Controlled Brake

This brake features intuitive manual control and smooth adjustable braking force, allowing operators to flexibly control deceleration and stopping process. Equipped with high wear-resistant friction linings, it maintains consistent braking performance under long-term repeated operation. The robust cast iron structure guarantees high rigidity and vibration resistance in harsh working environments. Friction linings can be replaced rapidly, lowering maintenance costs.

It is an ideal controlled braking solution for winches, rotary equipment, construction machinery and belt conveyors in mines, ports and factories.

TYW-300 Series Foot Operated Hydraulic Drum Brake is a normally open, manually controlled hydraulic braking equipment. Adopting foot pedal hydraulic drive mode, the brake remains released under standby status. When stepping on the pedal, hydraulic pressure drives the brake shoes to clamp the brake drum for braking; when the pedal is released, the brake automatically returns to the open state. Operators can flexibly adjust braking strength according to on-site operating requirements to achieve stable deceleration and reliable stopping.

The brake delivers smooth and controllable braking effect with moderate reaction speed, effectively avoiding sudden impact during braking and protecting the transmission components of equipment. The braking torque can be adjusted conveniently to match various load weights and operating speeds. Fitted with high wear-resistant non-asbestos friction linings, the brake maintains stable friction coefficient and consistent braking capacity under frequent cyclic operation, extending the service cycle of friction parts and reducing replacement frequency.

Constructed with high-rigidity integral cast iron frame, the brake body possesses outstanding vibration resistance and structural stability, adapting to complex working environments such as construction sites, mines and port yards. All transmission hinge parts are precisely machined to guarantee sensitive and accurate movement. The overall layout is compact, easy for on-site installation, and friction linings can be replaced without complicated disassembly, which minimizes equipment maintenance downtime.

With simple operation, reliable performance and low failure rate, TYW-300 Series foot operated hydraulic drum brake is widely used for winches, rotary machinery, belt conveyors and light construction machinery. It serves as ideal manual controlled braking device for industrial equipment requiring artificial real-time braking adjustment.

Core Features

Normally open structure, activated by foot hydraulic pressure and released after loosening the pedal

Manual foot control design, operators can freely adjust braking force flexibly

Smooth controllable braking, effectively reduce impact on mechanical transmission systems

Adjustable braking torque to satisfy diverse load and operating condition requirements

High wear-resistant friction linings, stable braking performance and long service life

Robust cast iron frame, strong vibration resistance suitable for harsh working sites

Compact structure, convenient installation and quick replacement of friction linings

Widely matched with winches, conveyors, rotary and construction machinery
