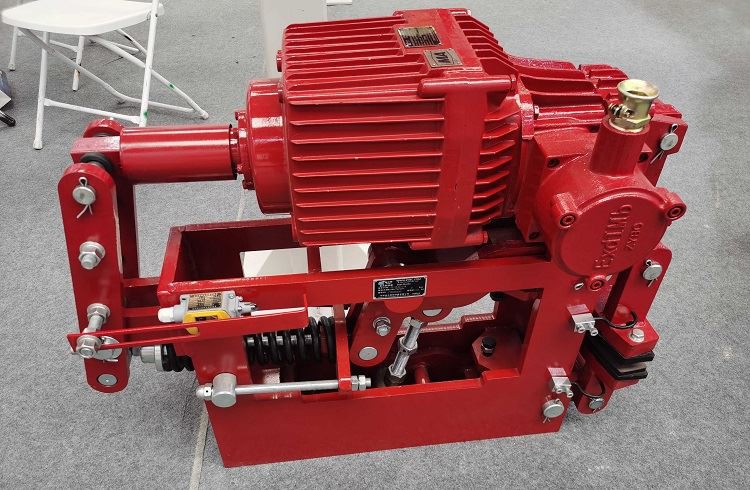

Electro-hydraulic Drum Brake With ED Thruster

Name: Electro-hydraulic Drum Brake With ED Thruster Manufacturers and Supplier - China Factory - Zhongyuan Brake
Brand: ZHONGYUAN BRAKE
SKU: 156232532

YWZ4 series electro-hydraulic drum brakes are widely used in deceleration or parking brakes of mechanical driving devices such as lifting, metallurgy, mining, ports, docks, and construction machinery.

Send Inquiry

Description

Electro-hydraulic Drum Brake With ED Thruster

Conditions of Use

Ambient temperature -20℃～+50℃

The relative air temperature is not more than 90%

There should be no flammable, explosive and corrosive gases in the surrounding environment. The altitude of the place of use conforms to GB755-2000

Anti-corrosion products should be used for outdoor rain and snow erosion or corrosive gases and media

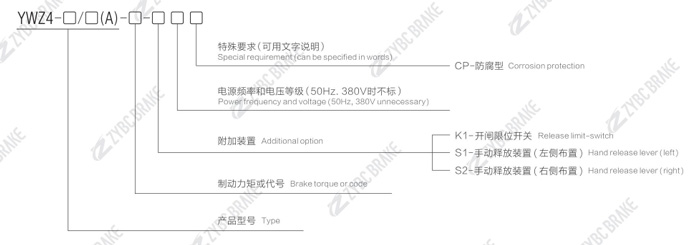

Model meaning

Technical parameter

Note:YWZ4 series brake matches Ed Thruster

Brake type	Thruster type	Braking torque (Nm)	Dimensions (mm)																Weight (kg)
Brake type	Thruster type	Braking torque (Nm)	A	b	C	D	d	E	F	G1	G2	H	h1	i	K	M	n	G3	Weight (kg)
YWZ4- 100/E23	Ed 23/5	40	320	70	160	100	13	130	75	125	125	377	100	40	110	144	6	50	21
YWZ4- 150/E23	Ed 23/5	100	347	90	160	150	17	175	100	170	170	437	140	60	150	144	8	70	25
YWZ4- 150/E30	Ed 30/5	120	347	90	160	150	17	175	100	170	170	461	140	60	150	144	8	70	29
YWZ4- 200/E23	Ed 23/5	200	430	90	160	200	17	210	100	195	195	468	170	60	175	156	8	95	31
YWZ4- 200/E30	Ed 30/5	230	430	90	160	200	17	210	100	195	195	468	170	60	175	156	8	95	34
YWZ4- 300/E30	Ed 30/5	320	529	140	160	300	22	290	130	275	275	595	240	80	250	213	10	125	65
YWZ4- 300/E50	Ed 50/6	630	529	140	190	300	22	290	130	275	275	595	240	80	250	213	10	125	78
YWZ4- 300/E80	Ed 80/6	750	529	140	190	300	22	290	130	275	275	595	240	80	250	213	10	125	79
YWZ4- 400/E50	Ed 50/6	1000	664	180	220	400	22	370	180	350	350	764	320	130	325	275	12	190	128
YWZ4- 400/E80	Ed 80/6	1600	664	180	220	400	22	370	180	350	350	764	320	130	325	275	12	190	130
YWZ4- 400/E121	Ed 121/6	2000	664	180	240	400	22	370	180	350	350	764	320	130	325	275	12	190	150
YWZ4- 500/E121	Ed 121/6	2500	713	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZ4- 500/E201	Ed 201/6	3600	713	200	250	500	22	440	200	405	405	919	400	150	380	310	16	225	210
YWZ4- 600/E121	Ed 121/6	3200	848	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	390
YWZ4- 600/E201	Ed 201/6	5000	848	240	315	600	26	555	220	500	500	1095	475	170	475	400	18	250	390
YWZ4- 700/E201	Ed 201/6	8000	978	280	390	700	34	600	270	575	575	1251	550	220	540	495	25	315	465
YWZ4- 700/E301	Ed 301/12	8650	978	280	390	700	34	600	270	575	575	1251	550	220	540	495	25	315	466
YWZ4- 800/E301	Ed 301/12	12500	1115	320	436	800	34	680	320	677	677	1417	600	240	620	556	25	367	885

We look forward to your confirmation of the above points, and hope that you can become one of my valued customers.
