Electro Magnetic Brake
Crane brakes play an important role in overhead cranes or gantry cranes. It is mainly composed of brake pads, brake arms, brake wheels and brake releasers. Usually installed on the high-speed shaft of the crane, it is used to decelerate and stop the crane. ZWZ Series Electro Magnetic Brake Basic...
Description
Crane brakes play an important role in overhead cranes or gantry cranes. It is mainly composed of brake pads, brake arms, brake wheels and brake releasers. Usually installed on the high-speed shaft of the crane, it is used to decelerate and stop the crane.

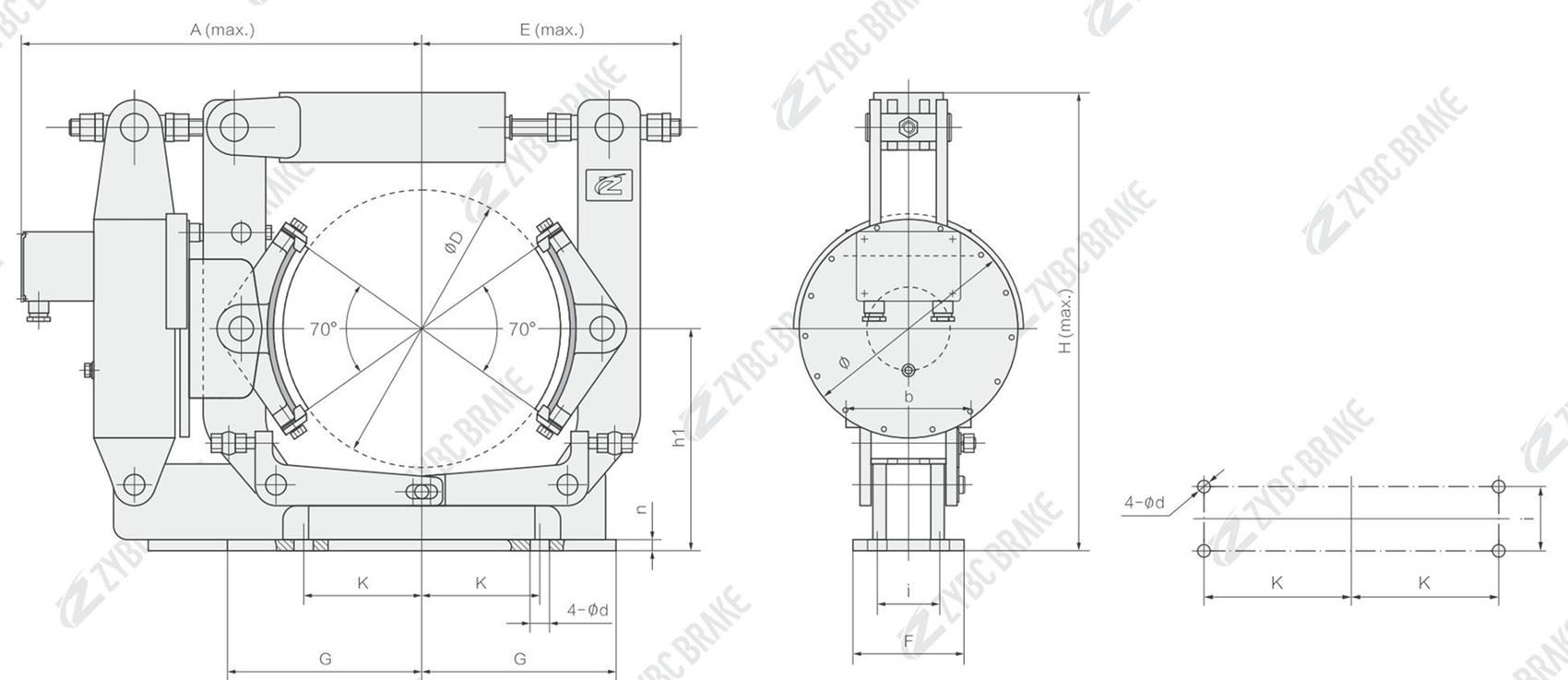

ZWZ Series Electro Magnetic Brake
Basic parameters:
Product model: ZWZA, ZWZB
Applicable wheel diameter: 200～800mm
Braking torque: 32～10000Nm
Working conditions:
Ambient temperature: -20°C~+40°C;
Relative humidity: ≤90%;
Working system: continuous (S1-100%) and intermittent (S3-25%, 40%, 60%, operating frequency ≤ 720c/h) working system;
Power supply voltage: DC 110V, 220V;
There is no explosive dangerous medium, gas and conductive dust enough to corrode metals and destroy insulation in the surrounding working environment.
Features DC electromagnetic brake
The construction is sturdy and simple.
Reliable braking action.
Effectively transmit power.
Brake shoes can be replaced without disassembly.
Easy to maintain.
Easy torque adjustment.
Technical data
Brake Type | Electromagnet type | Brake Torque (Nm) | Total Weight (KG) | |
JC 25% | JC 40% | |||
Shunt coil | Shunt coil | |||
ZWZA200-40 | MZZ1-100 | 40 | 32 | 1 |
ZWZA200-160 | MZZ1-200 | 160 | 128 | |
ZWZA300-250 | MZZ1-200 | 250 | 200 | 1.25 |
ZWZA300-500 | MZZ1-300 | 500 | 430 | |
ZWZB-160/100 | MZZ1-100 | 35.5 | 28 | 1 |
ZWZB-160/200 | MZZ1-200 | 140 | 112 | |
ZWZB-200/100 | MZZ1-100 | 40 | 31.5 | |
ZWZB-200/200 | MZZ1-200 | 160 | 125 | |
ZWZB-200/300 | MZZ1-300 | 315 | 280 | |
ZWZB-250/200 | MZZ1-200 | 200 | 160 | 1.25 |
ZWZB-250/300 | MZZ1-300 | 450 | 355 | |
ZWZB-315/200 | MZZ1-200 | 250 | 200 | |
ZWZB-315/300 | MZZ1-300 | 500 | 450 | |
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer. Mainly produces industrial brakes.
Q: What is the minimum order quantity?
A: 1 unit.
Q: If I need advice on brakes, what do you need to know?
A: Usually we need to know the size, rated voltage, torque, etc.
Q: Can you please help if I don't know anything about brakes?
A: Yes, we are very happy. Please contact us directly
Q: Where is your loading port?
A: China Qingdao or Shanghai, according to your request.
If you want more detailed information, please feel free to contact Zhongyuan Brake, we can also design various non standard brakes for users.
