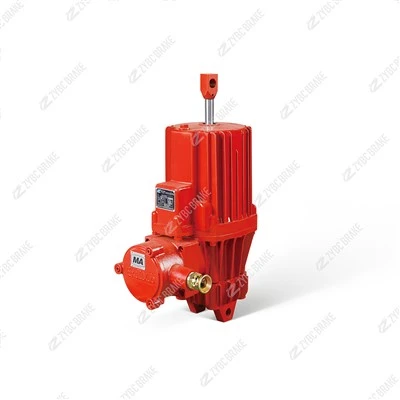

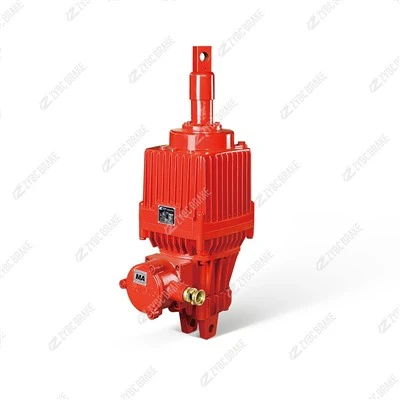

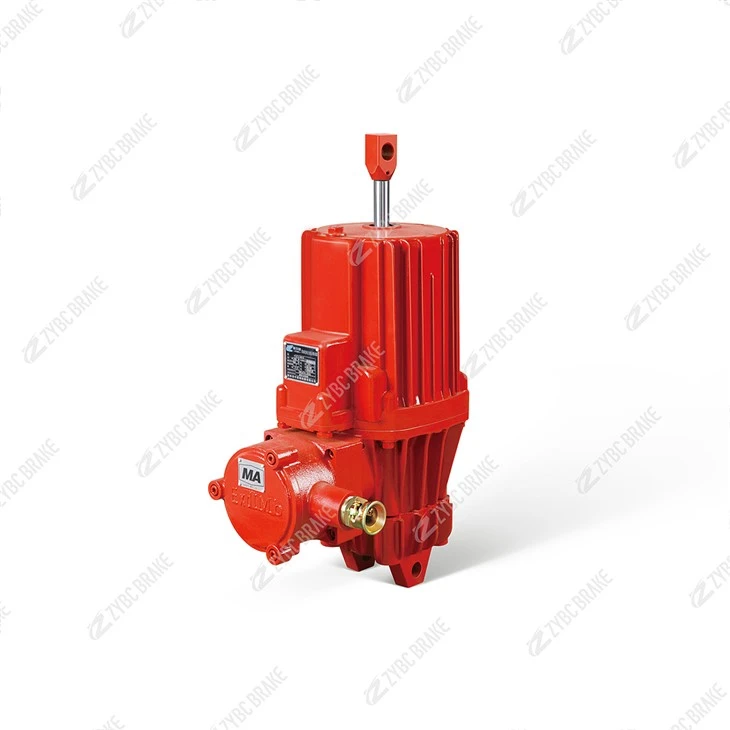

BEd50/6 Flameproof Hydraulic Pusher – 500N/60mm

Product Overview The BEd series is a German EMG Eldro-derived design, locally produced and fully compliant with DIN15430 (international) and GB3836 / JB/T 10603-2006 / Q/ZYBC (national). The BEd50/6 integrates a flameproof motor + centrifugal pump + cylinder in one compact aluminum housing -...

Send Inquiry

Description

Product Overview

The BEd series is a German EMG Eldro-derived design, locally produced and fully compliant with DIN15430 (international) and GB3836 / JB/T 10603-2006 / Q/ZYBC (national). The BEd50/6 integrates a flameproof motor + centrifugal pump + cylinder in one compact aluminum housing - energized, the impeller builds pressure oil, the piston extends to the preset stroke and holds thrust; de-energized, pressure collapses and the external brake spring retracts the rod.

2.1 Five structural advantages

Non-immersed F-class motor - windings are fully separated from hydraulic oil, eliminating the oil-ageing / burnt-winding failure mode common to the old oil-immersed BYT1 family. The 275 W (Ex dⅡCT4) / 240 W (Ex dⅠ) rating runs hot environments reliably.

Cast aluminum flameproof housing - lighter and with better heat dissipation / corrosion resistance than the cast-iron BYT1, ideal for humid mine tunnels and coastal chemical plants.

Dual Ex coverage - Ex d I Mb for underground coal (methane + coal dust, non-excavation faces); Ex d IIB T4 for IIA / IIB flammable-gas workshops. Full certification files ship with the unit for safety-department filing.

Built-in balance air chamber - internal oil pressure stays balanced in any orientation, enabling 0–180° free mounting (vertical, horizontal, inclined) without the air-lock thrust-loss problem of legacy thrusters. No bracket modification on most retrofits.

IP65 fully sealed - flameproof junction box + waterproof cable gland block mine moisture, coal dust and chemical vapour. Double seals on the shaft and push-rod extend seal life dramatically.

2.2 Where it fits

BEd50/6 is the release thruster for BYWZ, BYWZ4, BYWZ5, BYWZ8/9 and YWZP explosion-proof drum and disc brakes, and through simple lever linkage it also drives reciprocating, rotary and swing (<90°) motions in valves, gates, clamps and conveyors. Typical sites: underground belt conveyors, mine hoists, explosion-proof cranes, coal feeders, coke-oven transfer cars, paint shops, grain elevators, oil refineries and chemical plants.

Technical Specifications

Values are the manufacturer's rated data (multi-source consistent). Configuration-related items must be confirmed against the actual order / Ex certificate.

BEd50/6 - Rated parameters
Rated thrust	500 N (±20%)	Rated stroke	60 mm
Brake spring force	460 N	Action time, rise / fall	0.62 s / 0.61 s
Rated power	240 W (Ex dⅠ) / 275 W (Ex dⅡCT4)	Rated current	1.2 A @ 380 V
Operating frequency	1500 cyc/h	Duty	S1 continuous + S3 intermittent
Rated voltage	380 V (options: 127/220/660/1140 V)	Frequency	50 Hz (60 Hz on request)
Insulation class	F-class, non-immersed	Protection	IP65
Ex marking	Ex d I Mb / Ex d IIB T4 Gb	Weight	47 kg (Ex dⅠ) / 37 kg (Ex dⅡCT4)
Mounting	0–180° (balance air chamber)	Reference standard	GB3836, JB/T 10603, DIN15430

Mounting & outline dimensions (mm)

BEd50/6 shares its outline envelope with BEd80/6. Always confirm the drawing against the ordered certificate unit.

Type	A	B	C	D	E	F	G	H	K	L	M	N	O	P	R	S	T	U	V	W
BEd50/6	490	60	36	18	20	30	20	23	190	95	120	60	285	20	85	75	100	22	15	-
BEd30/5	410	50	34	15	16	25	16	18	160	80	80	40	270	16	85	75	98	20	15	-
BEd80/6	490	60	36	18	20	30	20	23	190	95	120	60	285	20	85	75	100	22	15	-
BEd121/6	690	60	38	25	25	40	25	35	240	112	90	40	324	25	130	120	147	35	20	130
