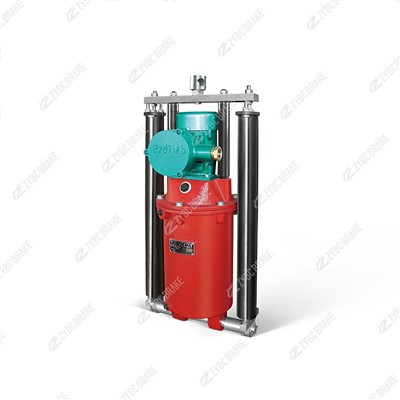

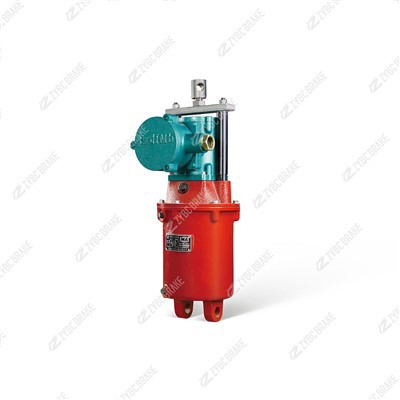

BYT1-180Z/12.C Explosion-Protected Electro-Hydraulic Thruster





💡 Key Features & Characteristics

Explosion-Protected Design:

Flameproof Enclosure: The entire unit is housed in a robust, sealed explosion-proof casing. It is designed to contain any internal explosion and prevent it from igniting the surrounding hazardous atmosphere.

Safety Certification: Complies with strict international and national standards for explosive atmospheres (typically marked with certifications like Exd I for mining environments or Exd IIB T4 for industrial gas atmospheres).

High-Performance Specifications (BYT1-180Z/12):

Rated Thrust: Delivers a consistent and powerful thrust force of 1800 N.

Rated Stroke: Provides a lifting travel of 120 mm.

Motor Power: Typically driven by a 400 W explosion-proof motor.

Power Supply: Operates on standard industrial 3-phase AC power (commonly 380V/660V, 50Hz), with voltage fluctuations allowed within a specific range (e.g., +10% to -25%).

Operating Frequency: Capable of high-frequency operations, typically up to 600 to 720 cycles per hour, making it ideal for frequent start-stop braking applications.

Robust & Reliable Operation:

Electro-Hydraulic Actuation: When powered on, the motor drives a centrifugal pump to generate hydraulic pressure, rapidly pushing the piston and pushrod upward. When powered off, the piston quickly returns to its original position via an external load spring or gravity, ensuring a fail-safe braking action.

Wide Temperature Range: Designed to operate reliably in harsh ambient temperatures ranging from -20°C to +40°C.

High Protection Rating: Features excellent sealing to achieve a high IP rating (typically IP54 or IP65), effectively protecting against dust, moisture, and corrosion.

Maintenance-Free: The sealed hydraulic system requires no regular oil changes, and the durable construction ensures a long service life with minimal maintenance.

Flexible Installation:

Multi-Position Mounting: Can be installed in various orientations (vertical, horizontal, or inclined) to adapt to complex mechanical layouts in heavy machinery.

🏭 Typical Applications

The BYT1-180Z/12.C is a critical safety component in industries with high explosion risks:

Mining & Coal Processing: Used in underground coal mines to actuate brakes on belt conveyors, hoists, and winches where methane gas (firedamp) and coal dust are present.

Oil & Gas / Petrochemical: Ideal for operating valves, emergency shutdown systems, and braking mechanisms in refineries, chemical plants, and offshore platforms containing flammable vapors.

Metallurgy & Heavy Industry: Applied in steel mills and foundries where industrial gases or combustible dust create hazardous working environments.

📋 General Technical Specifications

表格

Parameter	Description
Type	Explosion-Protected Electro-Hydraulic Thruster
Model Series	BYT1 Series
Model Variant	BYT1-180Z/12.C
Rated Thrust	1800 N
Rated Stroke	120 mm
Motor Power	400 W
Explosion-proof Mark	Exd I / Exd IIB T4 (Typical)
Ambient Temperature	-20°C to +40°C
Key Features	Flameproof housing, hazardous area certified, high operating frequency

Note: The BYT1-180Z/12.C is a highly specialized safety device. The ".C" suffix indicates a custom configuration, so it is crucial to verify the exact voltage, mounting dimensions, and specific explosion-proof certification against the manufacturer's nameplate before installation. Regular visual inspections of the flameproof enclosure and cable glands are essential to maintain its safety integrity in hazardous locations.
