YW-E Series Two-Stage Drum Brake, Auto Equal Clearance, Fail-Safe Power-off Holding Brake For Port Gantry Cranes

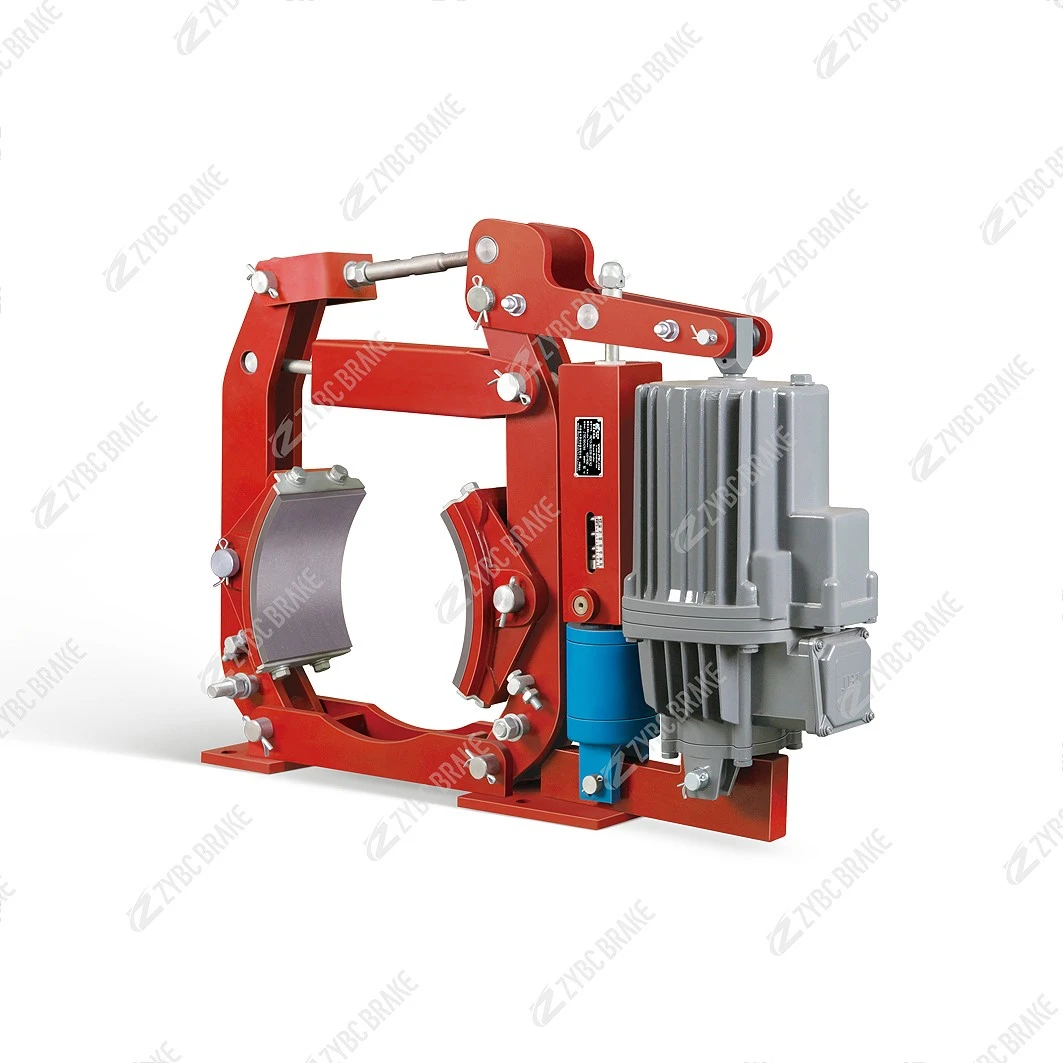

YW-E Series Two-Stage Drum Brake

YW-E two-stage electro-hydraulic drum brake is a specialized braking solution independently developed for outdoor port gantry cranes, yard trolleys and large lifting equipment. Different from ordinary single-stage brakes, it adopts a unique two-step braking structure with adjustable delay function, equipped with built-in auto equal clearance linkage and spring fail-safe power-off locking design. It realizes soft deceleration first and full windproof holding afterward, effectively solving cargo swing, trolley sliding and transmission shock problems in open-air port operation scenarios.

Core Competitive Advantages

Unique Two-Stage Cushioned Braking (Core Selling Point)

Step 1: Soft deceleration with moderate torque (30%–60% rated torque) to slow down the trolley smoothly, eliminate rigid braking impact and protect steel wire ropes, gearboxes and cargo from violent shaking.

Step 2: Windproof full holding braking with adjustable delay (1–15 seconds via one-way flow valve). After the trolley fully stops, full spring torque locks the brake drum tightly to resist strong crosswinds and prevent trolley drift on port yards.

Built-in Auto Equal Clearance Balancing MechanismInterlocking linkage structure automatically keeps uniform clearance between two friction linings and brake drum all the time. No frequent manual gap calibration required, thoroughly avoid unilateral lining dragging, local overheating and uneven wear, greatly extending friction block service life.

Reliable Fail-Safe Power-off Safety DesignSpring-applied fail-safe structure: When power cuts off unexpectedly, main compression springs instantly push brake shoes to clamp the drum completely. Dual safety protection for power failure emergency stop and long-term windproof parking of port gantry cranes.

Low Maintenance Heavy-Duty Structure

All hinge pivot points fitted with maintenance-free self-lubricating sleeves, no regular greasing needed;

Snap-in plug-type non-asbestos friction linings, quick replacement without disassembling the whole brake frame, cut maintenance time by over 60%;

Graduated torque scale on spring tube for intuitive adjustment of braking torque to match different container load weights.

Flexible Matching & Customization OptionsMatched with ED two-stage dedicated electro-hydraulic thrusters as standard; BEd flameproof thruster versions available for chemical and mine hazardous zones. Vertical standard mounting & custom horizontal transition brackets support compact trolley installation. Optional accessories include rain/dust protective covers, anti-corrosion coated frames and dual state feedback limit switches for PLC safety interlock.

Main Application Scenarios

Port container gantry cranes, yard travel trolleys, outdoor overhead cranes, large metallurgical transfer carts, long-distance belt conveyors and all outdoor lifting machinery requiring windproof parking and shock-free deceleration.

Working Condition Specifications

Ambient temperature: -20℃ ~ +50℃, adaptable to open-air coastal high-wind port environments

Delay adjustment range of second-stage braking: 1–15 seconds

Standard thruster voltage: AC380V; AC220V/660V customizable

Explosion-proof grade optional: Ex d I (coal mine), Ex d IIB T4 (chemical plant)
