Reliable Windproof Holding Torque QW/QWZ5 Air Brake For Outdoor Port Gantry & Rubber-Tyred Cranes

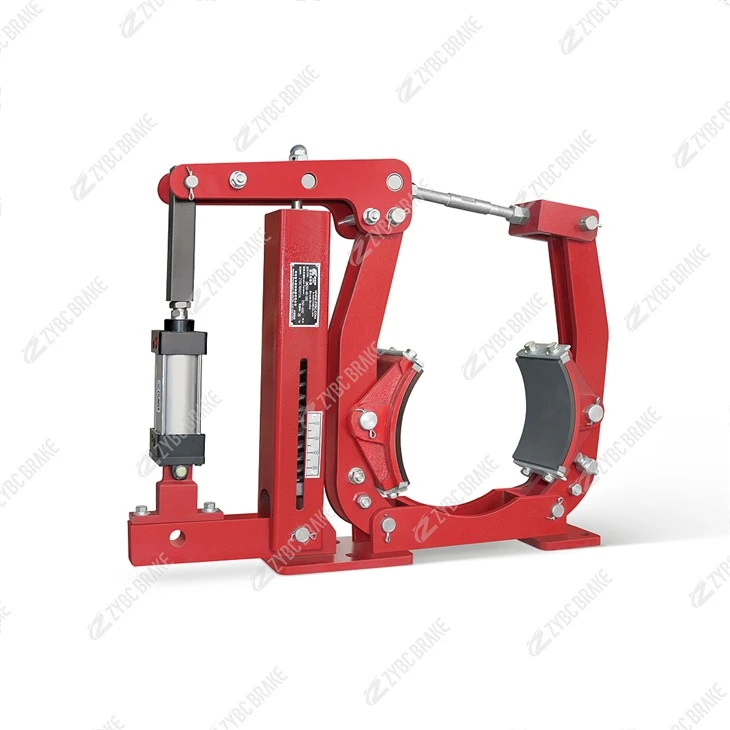

QW/QWZ5 pneumatic drum brake

QW and QWZ5 series pneumatic drum brakes are air-driven spring-closed safety brakes specially developed for outdoor port machinery with stable compressed air supply. Different from electro-hydraulic brakes, they rely on factory compressed air to push the cylinder and release the brake; once air pressure drops or the air supply fails, built-in heavy-duty springs immediately clamp the brake drum to realize reliable windproof parking locking. They are widely matched with outdoor gantry cranes, rubber-tyred container gantry cranes (RTG), yard trolleys and ship loading & unloading equipment in open-air port yards exposed to strong crosswinds.

Core Competitive Advantages

• Powerful windproof static holding torque (Core selling point)
• Thickened high-strength braking springs provide large static locking torque. When the crane stops working or loses air supply, the brake firmly locks the wheel set, effectively resisting strong coastal winds and eliminating safety hazards such as trolley drift, container tipping and track collision. Ideal for long-term unattended outdoor parking of port rubber-tyred and rail-mounted gantry cranes.
• Oil-free pneumatic drive, zero hydraulic leakage trouble
• Adopt air cylinder driving structure without hydraulic oil, completely avoid common faults such as oil leakage, seal aging and oil deterioration of electro-hydraulic thrusters. Reduce regular oil replacement and sealing maintenance, greatly lower long-term operation costs for port workshops.
• Instant fail-safe lock upon air lossFail-safe spring-applied design: if air pipeline rupture, air compressor shutdown or pressure loss occurs, the brake automatically closes within a short response time without manual intervention, realizing passive safety protection for outdoor unmanned port equipment.
• Built-in automatic equal clearance balancing linkage
• Interlocking balance mechanism keeps consistent gap between two friction linings and brake drum automatically during long-time reciprocating operation. No frequent manual gap adjustment, effectively prevent unilateral lining dragging, local overheating and uneven wear, extend friction lining service life.
• Low-maintenance modular structure
• All hinge pivot points equipped with maintenance-free self-lubricating bearings, no regular grease filling required;
• Snap-in plug-type non-asbestos friction linings support quick replacement without disassembling the whole brake frame, saving maintenance time;
• Graduated scale on spring tube for intuitive stepless adjustment of braking torque to adapt different container loads and wind resistance demands.
• Diversified customization & matching options
• Stable working air pressure range: 0.5–0.7 MPa, compatible with standard port factory air source systems. Explosion-proof versions can be customized for chemical and mining hazardous areas. Optional accessories include manual emergency release lever, travel limit switches for PLC safety interlock, dustproof & rainproof protective covers and anti-corrosion coating for coastal salt fog environment. Vertical and horizontal installation brackets are available to fit various RTG and gantry crane layout spaces.

Main Application Scenarios

Outdoor rail-mounted gantry cranes, rubber-tyred container gantry cranes (RTG), port yard travel trolleys, ship unloaders, large outdoor belt conveyors and all open-air lifting equipment requiring windproof parking and air-source driving.

Working Condition Parameters

Ambient temperature: -20℃ ~ +50℃, suitable for high-wind, high-humidity coastal port environment

Standard working air pressure: 0.5–0.7 MPa

Comply with JB/T 6406 industrial brake standards

Optional explosion-proof grade: Ex d I (coal mine), Ex d IIB T4 (chemical plant)
