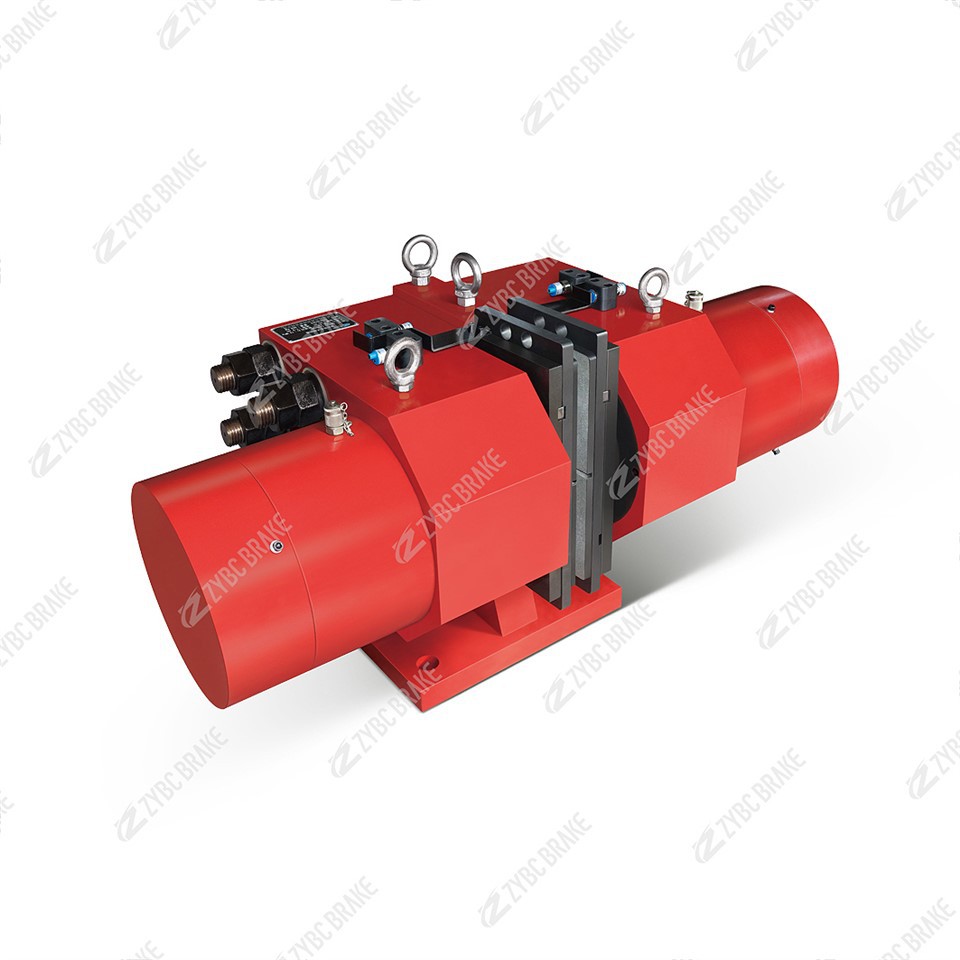

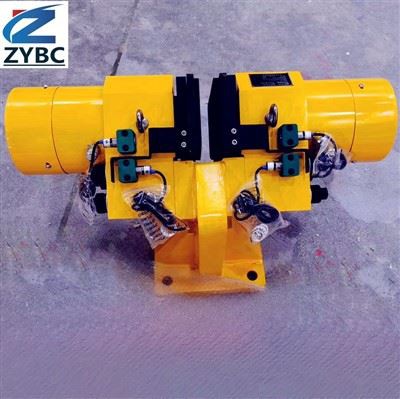

Fail-Safe Caliper Disc Safety Brake

1) Synopsis:
The fully automatic follow-up device ensures that the clearance between the brake disc and the brake disc is equal under the brake release state to avoid floating. The high adjustability of the center can effectively compensate for the errors in the installation site. It is equipped with AC/DC wide voltage switch and wear induction switch for interlock protection and fault warning.
2) Application domain:
The fail-safe caliper disk brake is widely used for the emergency safety braking of the low-speed shaft of the hoisting mechanism of large and medium-sized cranes, port handling machinery and boom pitching mechanism, the working braking and emergency safety braking of mining winches, hoists and high-power inclined belt conveyors, the safety braking of the driving mechanism of cable cars and cable cranes, and the safety (emergency) braking of the low-speed shaft of the hoisting mechanism of special cranes such as casting cranes.
3) Application conditions:
Ambient temperature: - 20 ºC~+40 ºC;
Relative humidity: ≤ 90%;
Optional hydraulic station (see hydraulic station sample for hydraulic station selection);
In case of special requirements, it shall be determined through negotiation when ordering.

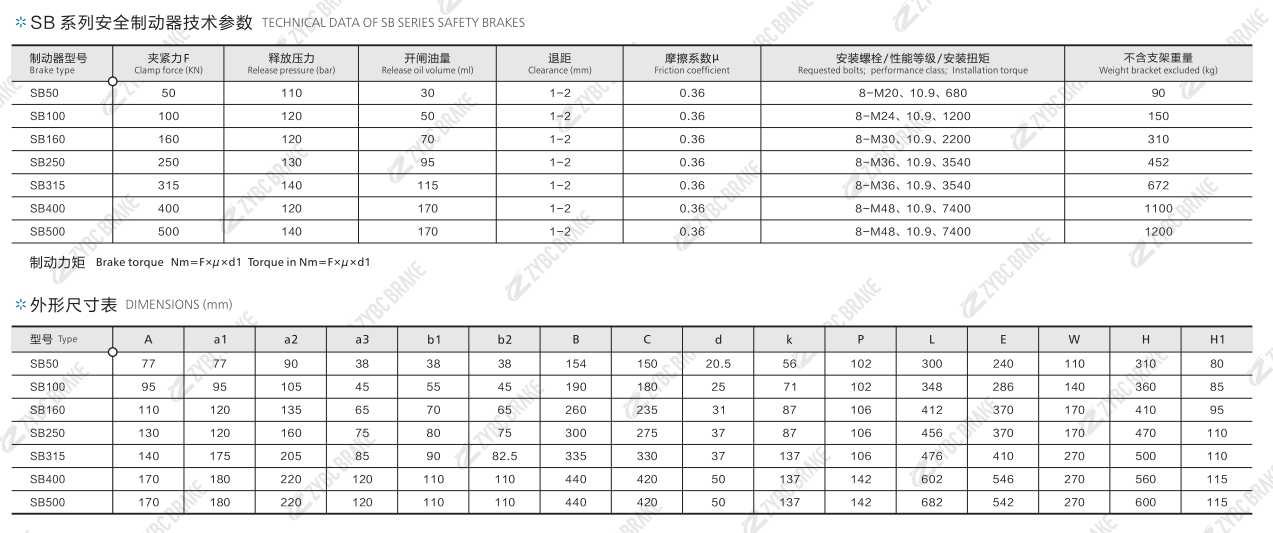

4) Technical parameter:

5) after-sale service:
1) Pre-sales service:
Free field survey, project consultation, drawing design and relevant technical data for customers.
Focusing on customers, we will provide customers with a variety of feasible solutions for their reference to obtain the best solution for customer satisfaction.
2) In-sale service:
The production shall be carried out in strict accordance with the relevant national standards, the product quality shall be controlled in the whole process according to the ISO9001 quality system, and the relevant provisions of the contract shall be strictly observed.
Free delivery, installation and commissioning for customers, complete the quality acceptance form, and complete the technical guidance for customers' use, maintenance and general troubleshooting.
3) After-sales service:
Warranty service: The equipment performs one-year free warranty and lifelong maintenance, and provides customers with the required services quickly and quickly. After the warranty period, the equipment maintenance only charges material costs, not labor costs.
Telephone service: set up a customer hotline to deal with customers' problems in the process of using the equipment at the first time.
Guarantee service: establish customer files, implement tracking service for customers, and carry out annual inspection and regular warranty for customers free of charge.
Finally, "professional", "efficient" and "timely" after-sales service will always be the largest and most reliable guarantee of Hongqiao Company!

6) Why choose us:
1) Brand: ZYBC Brake
2) Place of shipment: Henan Changyuan, famouse city to produce kinds of cranes
3) Sales channel: direct sales
4) Supply quantity: unlimited
5) Product type: brand new
6) Shelf life: 18 months
7) Sellable place: nationwide
8) Packaging form; Firm and reliable
9) Transportation mode: goods transportation with good continuity, reliability and accessibility
10) Delivery date: delivery within 15 days after the order is confirmed
