Windproof Brakes

Electro-hydraulic windproof iron wedge brakes are mainly used as auxiliary windproof brakes for various rail cranes, gantry cranes, and loading and unloading cranes in ports, docks, railways, etc.

Send Inquiry

Description

YFX Series Windproof Brakes

Electro-hydraulic windproof iron wedge brakes are mainly used as auxiliary windproof brakes for various rail cranes, gantry cranes, and loading and unloading cranes in ports, docks, railways, etc.

Windproof Brakes

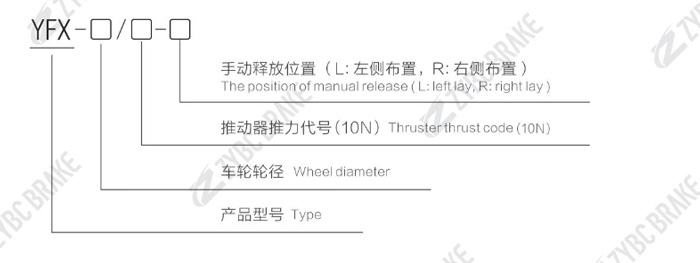

Order mark

Order example

YFX-600/80-L

YFX-600/80-R

Note: If power supply is 380V 50Hz, it is unnecessary to specify in order, if not, please specify voltage and frequency.

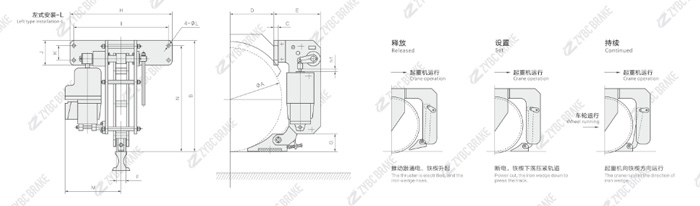

Outline and installation dimension

Specifications

Brake Type	A	B	C	D	E	F	G	H	I	J	K	L	M	N	h1	Weight (Kg)	Thruster type
YFX-350-80	350	640	20	180	310	60	55	520	460	165	100	18	360	607	8	129	Ed80/6C Ed80/6SC
YFX-500/80	500	640	20	240	310	60	55	480	430	165	100	18	360	605	8	129
YFX-550/80	550	640	20	240	310	60	55	480	430	165	100	18	360	605	8	129
YFX-600/80	600	760	25	260	315	60	120	650	600	170	100	22	360	725	8	146
YFX-630/80	630	760	25	260	315	60	120	650	600	170	100	22	360	725	8	146
YFX-700/80	700	760	25	300	315	70	120	700	650	170	100	22	360	725	8	146
YFX-710/60	710	760	25	300	315	70	120	700	650	170	100	22	360	725	8	149
YFX-800/80	800	950	25	300	355	70	120	700	650	170	100	22	395	915	8	164
