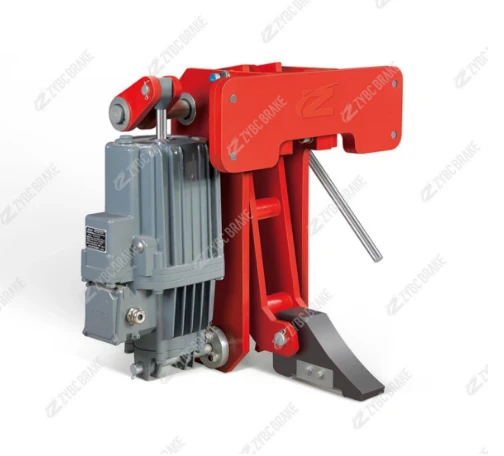

YFX Series Electro-Hydraulic Wedge Brake YFX-550/80

Product Overview

YFX-550/80 storm wedge brake is a dedicated wind safety locking device for outdoor rail cranes, with the core working principle of spring applied wind braking, electro-hydraulic thruster release. Different from conventional running brakes, this brake focuses on static anti-slip and storm protection during crane shutdown.

When the crane is ready to operate, the supporting ED80 electro-hydraulic thruster is energized to generate hydraulic thrust, pulling the wedge block away from the rail and releasing the brake, so the crane can travel freely. When the crane stops working or encounters sudden power failure, the built-in high-strength compression spring instantly pushes the wedge block to clamp the rail tightly. With reliable self-locking structure, it firmly locks the crane travelling wheel, completely avoiding equipment runaway and displacement caused by strong wind or storm.

The whole machine adopts heavy-duty cast steel structure, featuring strong impact resistance and wind resistance. With automatic gap adjustment and stable self-locking performance, it is the standard safety matching device for outdoor large-scale rail lifting equipment.

Core Features & Product Advantages

Strict Fail-Safe Windproof Design: Spring automatic locking when power off. Once power is cut off or equipment stops, the wedge clamps the rail instantly to achieve storm anti-slip locking, fully meeting outdoor crane wind safety standards.

Powerful Anti-Wind Braking Capacity: Optimized wedge self-locking structure with high friction coefficient, providing ultra-strong static locking force, effectively resisting strong wind and storm impact to prevent crane drifting.

Electro-Hydraulic Stable Release: Matched with professional ED80 electro-hydraulic thruster, stable hydraulic power output, sensitive action, fast and smooth release without jitter or stuck failure.

Automatic Gap Compensation Function: Built-in fine adjustment mechanism, automatically compensates friction wear and installation deviation, maintains standard 3–8mm idle gap for long-term stable operation.

Heavy-Duty Durable Structure: Integral thickened cast steel body, anti-rust and anti-corrosion treatment, strong compression and impact resistance, adapting to harsh outdoor open-air working environment.

Dual Manual & Electric Control: Support automatic electric hydraulic release and manual emergency release, convenient for on-site maintenance, power failure debugging and special working condition operation.

Low Maintenance & High Safety: Simple mechanical structure, fewer vulnerable parts, standardized wearing parts replacement. Stable performance without frequent debugging, greatly reducing daily maintenance cost.

Strong Compatibility: Standard 80mm rail width design, widely compatible with various domestic and foreign rail-mounted gantry cranes, container cranes and outdoor travelling equipment.

Wide Application Scope

YFX-550/80 electro-hydraulic storm wedge brake is professionally used for wind protection and anti-slip locking of all kinds of outdoor rail-mounted heavy machinery, mainly applicable scenarios:

Port rail-mounted gantry cranes, container cranes and shore container handling equipment

Outdoor large gantry cranes, bridge cranes and travelling hoisting machinery

Yard stockyard heavy-duty rail cranes and logistics handling equipment

Mining, chemical and construction outdoor fixed rail lifting equipment

All rail-mounted mechanical equipment requiring storm anti-slip safety protection under shutdown state

Detailed Technical Parameters

Working Principle

Power-on Release (Crane Running State)

When the crane needs to travel, the supporting ED80 electro-hydraulic thruster is energized to work stably. The hydraulic thrust overcomes the spring preload, pulls the wedge block back and separates it from the 80mm rail. The brake is fully released without locking resistance, and the rail crane can travel freely and work normally.

Power-off Locking (Storm & Shutdown State)

When the crane stops working or the power supply is interrupted, the electro-hydraulic thruster stops working instantly. The built-in high-strength compression spring rapidly pushes the wedge block forward to tightly clamp the crane rail. Relying on high friction self-locking performance, it generates powerful windproof braking force to lock the travelling wheel firmly, effectively preventing crane displacement, sliding and runaway accidents caused by strong wind and storm in outdoor environment.
